Product Details
| Usually Ships Within | 1-3 Days |
|---|---|
| Factory Stock | 92 |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Pressure Rating | 4000 |
| Side 1 Gender | MALE |
| Side 1 Size | 1-1/16-12 (-12) |
| Side 1 Type | ORB |
| Side 2 Gender | FEMALE |
| Side 2 Size | 3/4-14 (-12) |
| Side 2 Type | NPT |
Description

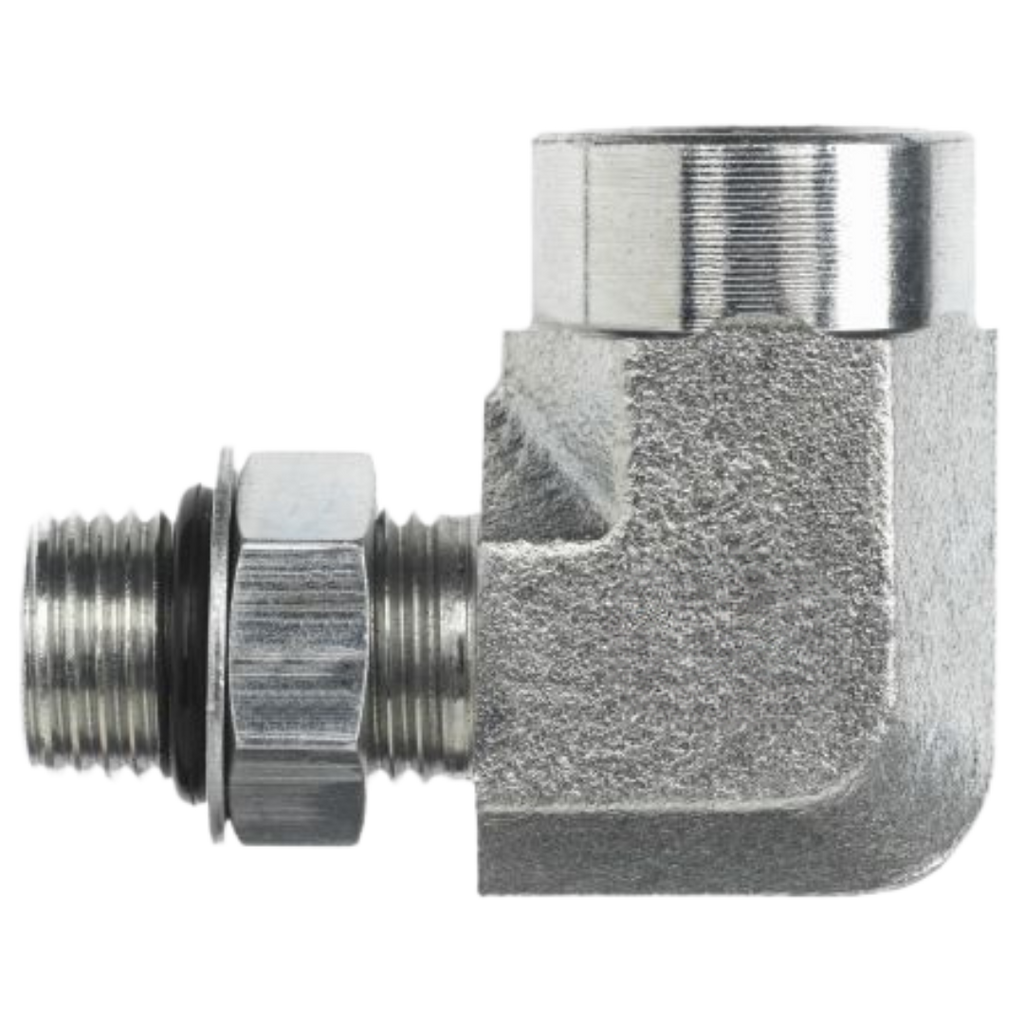

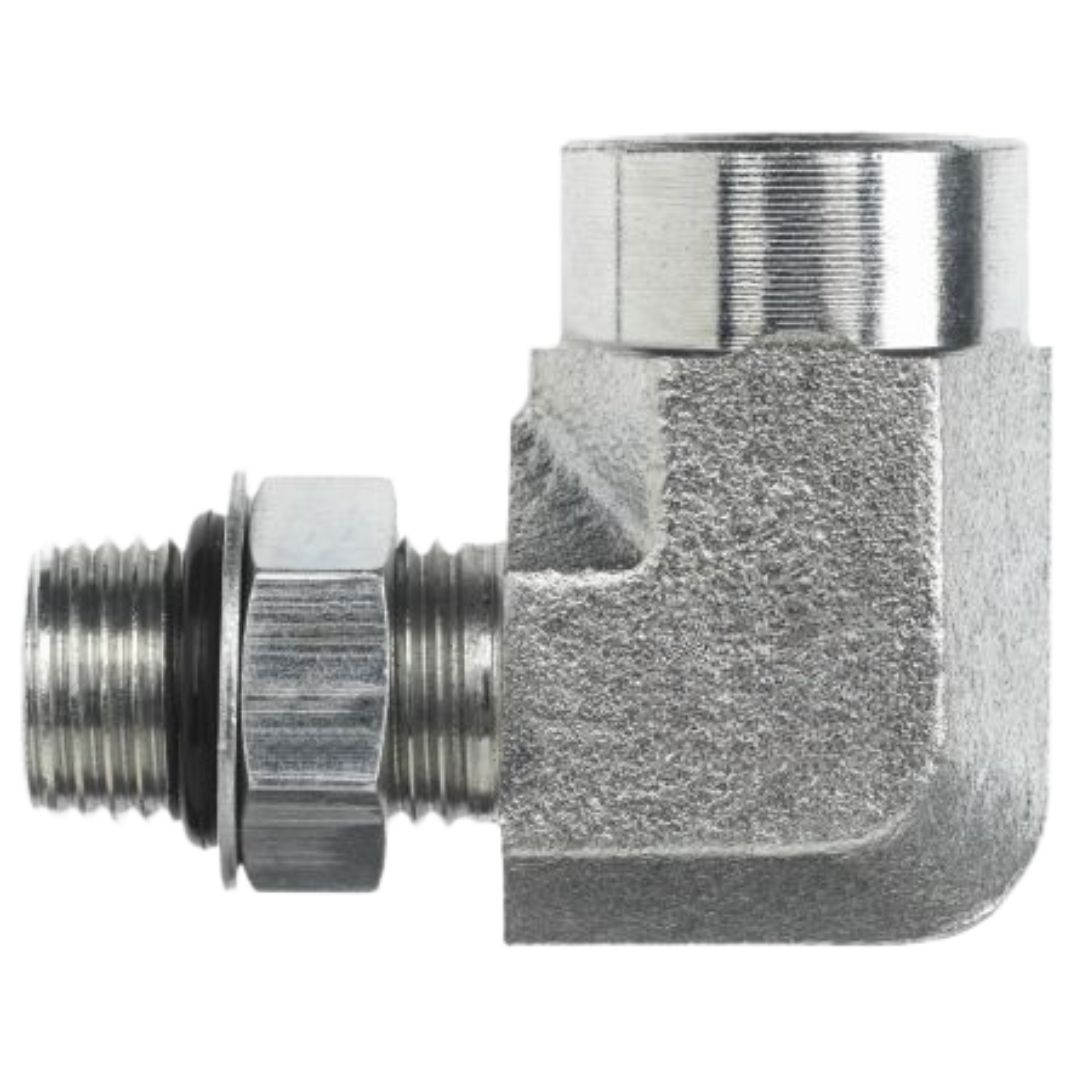

The Series 6805-NWO 90-Degree Angled Male Adjustable ORB x Female NPT adapters are high-quality carbon steel fittings designed to provide secure, leak-free connections in hydraulic systems. Featuring a 90-degree angle, these adapters allow for efficient routing of hoses and pipes in tight or confined spaces. One end is equipped with a male Adjustable ORB (O-Ring Boss) connection, which offers an adjustable, leak-tight seal by compressing an O-ring into the port’s chamfer. The other end features a female NPT (National Pipe Tapered) thread, ensuring a secure seal through thread deformation. Made from durable carbon steel, these adapters are ideal for high-pressure fluid power systems, offering excellent strength, corrosion resistance, and long-lasting performance. The Series 6805-NWO is perfect for industrial applications that require precise alignment, secure connections, and flexibility during installation.
