Product Details
| Usually Ships Within | 1-3 Days |
|---|---|
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Stainless Steel |
| Pressure Rating | 5400 |
| Side 1 Gender | MALE |
| Side 1 Size | 7/8-14 (-10) |
| Side 1 Type | ORB |
| Side 2 Gender | FEMALE |
| Side 2 Size | 1/2-14 (-08) |
| Side 2 Type | NPT |
Description

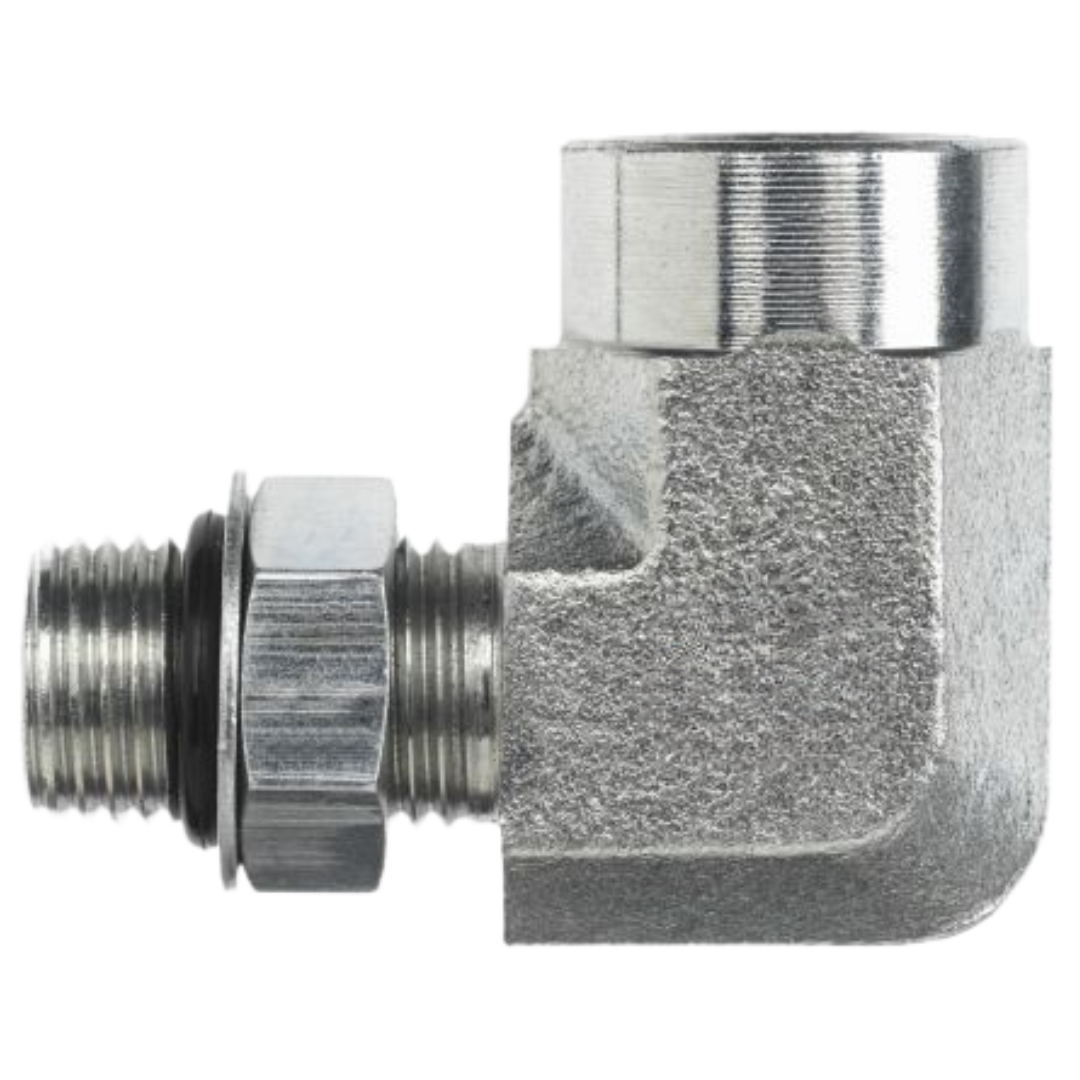

The Series 6805-NWO-SS 90-Degree Angled Male Adjustable ORB x Female NPT adapters are high-performance stainless steel fittings designed for secure, leak-free connections in hydraulic systems. These adapters feature a 90-degree angle, ideal for routing hoses and pipes in tight or confined spaces. One end is equipped with a male Adjustable ORB (O-Ring Boss) connection, which creates a reliable, adjustable seal by compressing an O-ring into the port's chamfer for a leak-tight fit. The other end features a female NPT (National Pipe Tapered) thread, ensuring a secure connection through thread deformation. Made from durable stainless steel, these adapters offer exceptional corrosion resistance, making them perfect for high-pressure fluid power systems that require strength, reliability, and long-lasting performance in harsh environments. The Series 6805-NWO-SS is ideal for industrial applications that need secure, flexible, and adjustable connections.
