Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Material | Steel |
| Shape | 45-Degrees |
| Pressure Rating | 6000 |
| Country of Manufacture | India |
| Side 1 Gender | MALE |
| Side 1 Size | 7/16-20 (-04) |
| Side 1 Type | JIC |
| Side 2 Gender | MALE |
| Side 2 Size | 5/16-24 (-02) |
| Side 2 Type | ORB |
Description

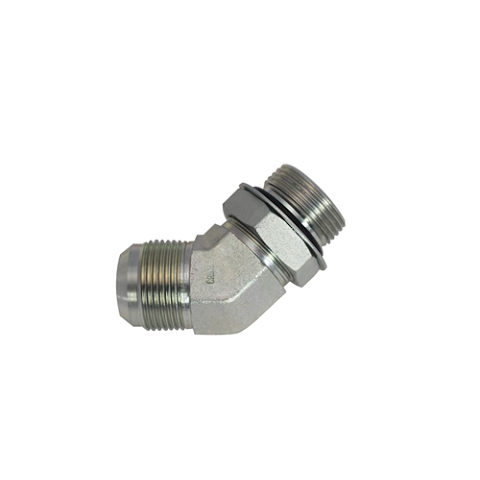

The Series 6802 45-Degree MJIC x Male Adjustable ORB adapters, made from high-quality carbon steel, are designed for fluid power systems, particularly in high-pressure applications. These adapters feature male JIC (Joint Industry Council SAE J514) fittings with 37° tapered seats, which create a secure mechanical seal when the male flared seat contacts the female coned seat. The male ORB (O-Ring Boss) connection uses a straight thread with an O-ring that seals when compressed into a chamfered surface on the female port. This design, recommended by the National Fire Protection Association (NFPA) for leak prevention, ensures a reliable, leak-free connection. It is essential to avoid mixing SAE 37° and SAE 45° fittings, as their differing seat angles can cause leakage. Proper measurement of seat angles ensures a secure, high-performance connection.
