Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | 90-Degree |
| Pressure Rating | 6000 |
| Series | 6801-LLL-NWO-FG |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 9/16-18 (-06) |
| Side 1 Type | JIC |
| Side 2 Gender | MALE |
| Side 2 Size | 9/16-18 (-06) |
| Side 2 Type | ORB |
Description

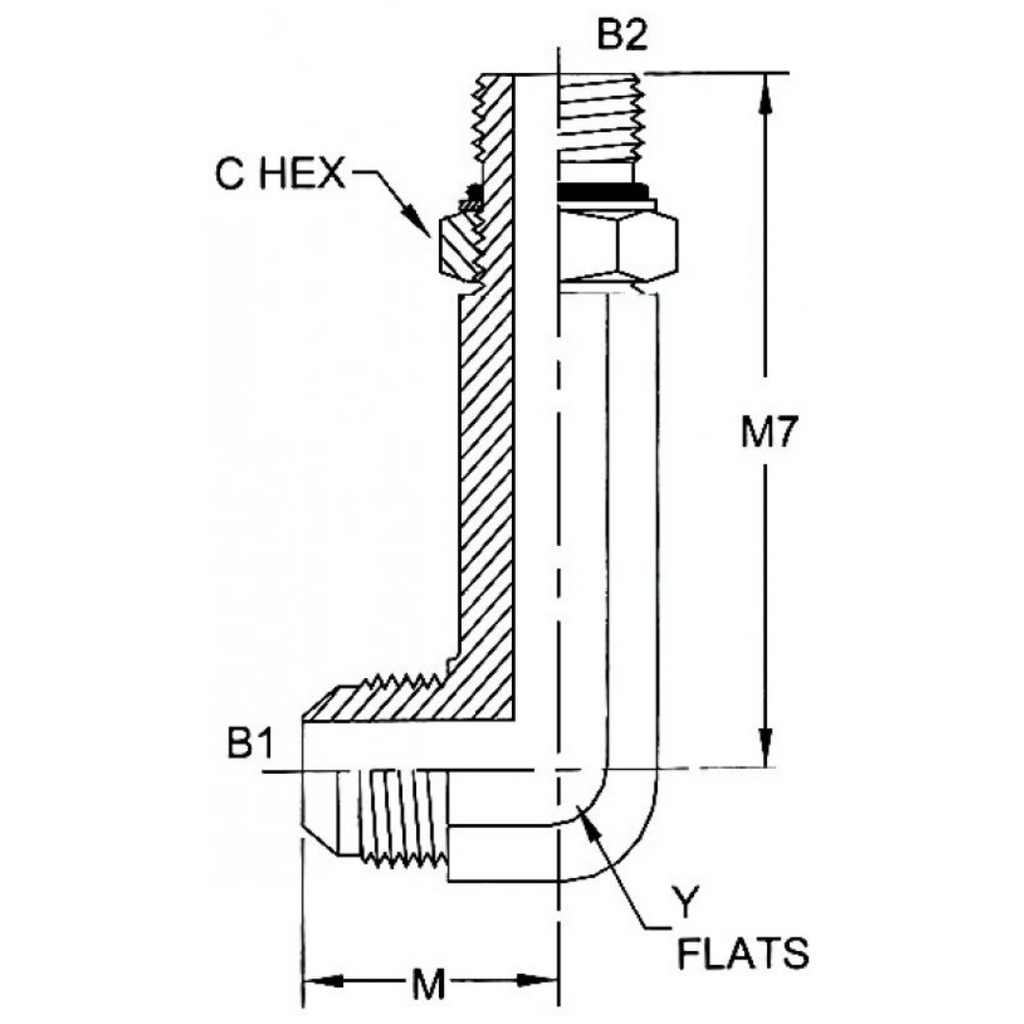

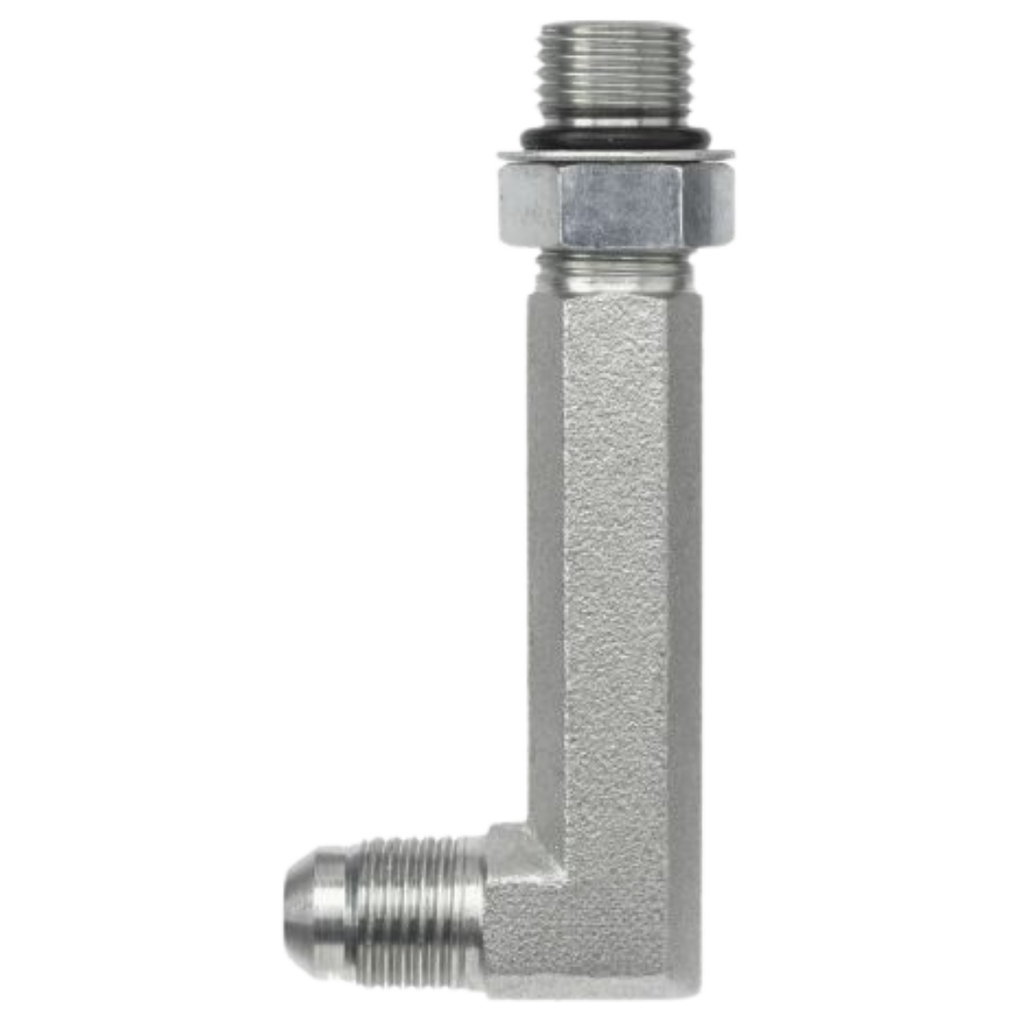

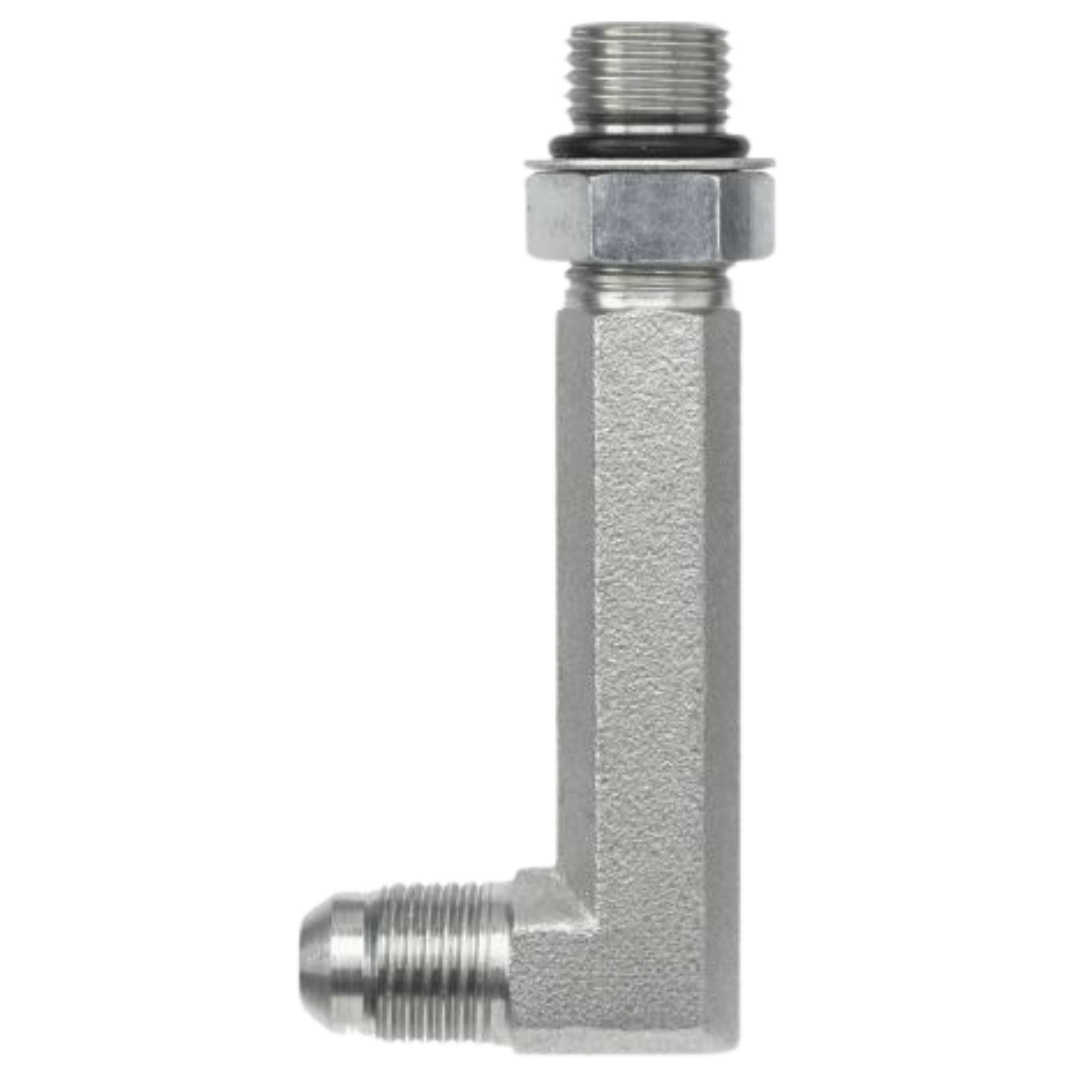

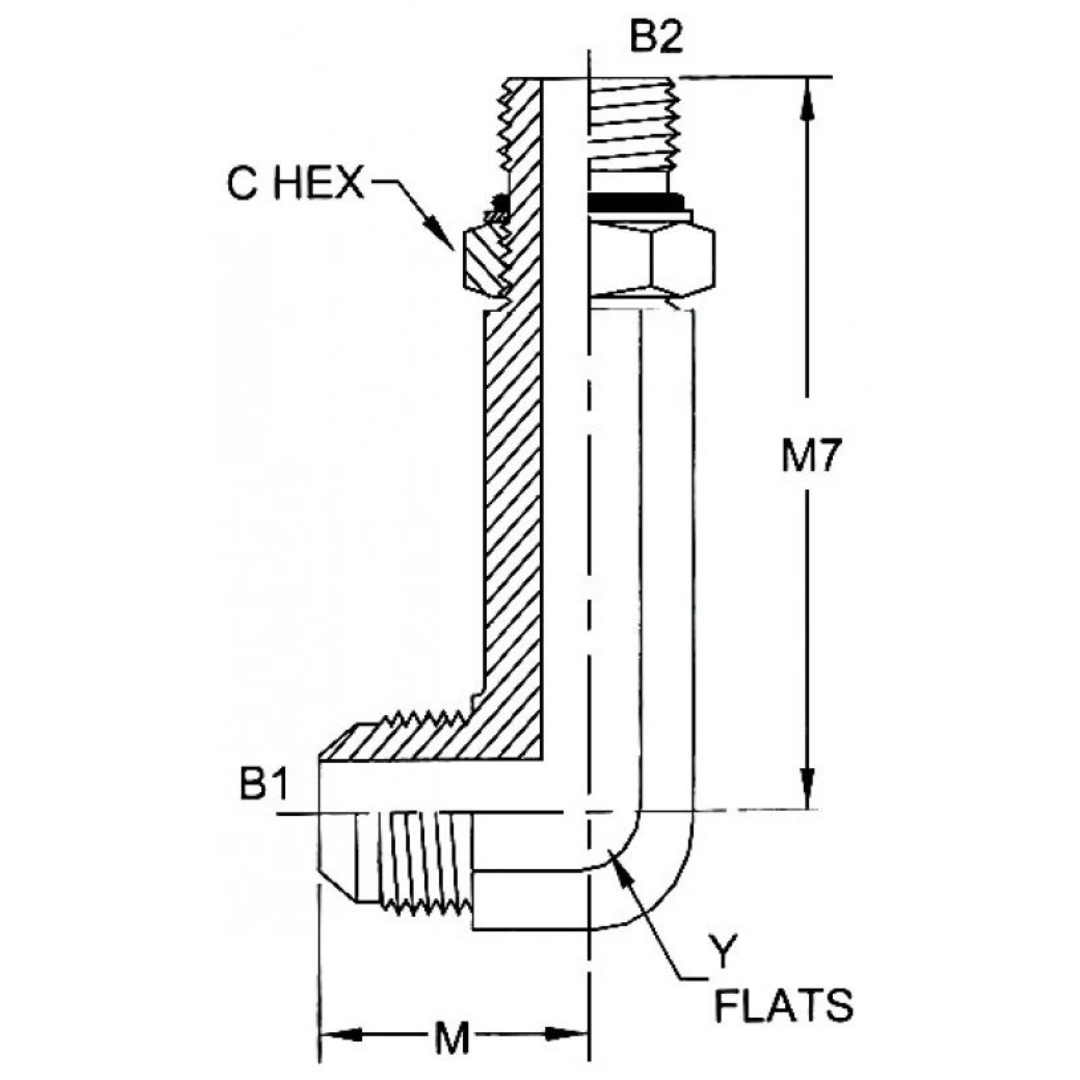

The Series 6801-LLL-NWO 90-Degree Angled Male JIC x Male Adjustable ORB extra extra long adapters are high-performance carbon steel fittings designed for secure, leak-free connections in hydraulic systems that require significant additional length. These adapters feature a 90-degree angle, perfect for applications where hoses and pipes need to be routed in tight or hard-to-reach spaces. One end is equipped with a male JIC (Joint Industry Council) 37° flare connection, while the other end features a male Adjustable ORB (O-Ring Boss) connection, which ensures a strong, adjustable seal by trapping an O-ring inside the port cavity. The "extra extra long" design offers maximum flexibility for specialized system configurations. Made from durable carbon steel, these adapters are ideal for high-pressure fluid power systems, providing outstanding performance, strength, and corrosion resistance for demanding industrial applications. The Series 6801-LLL-NWO offers reliable, long-lasting connections in a variety of hydraulic setups.
