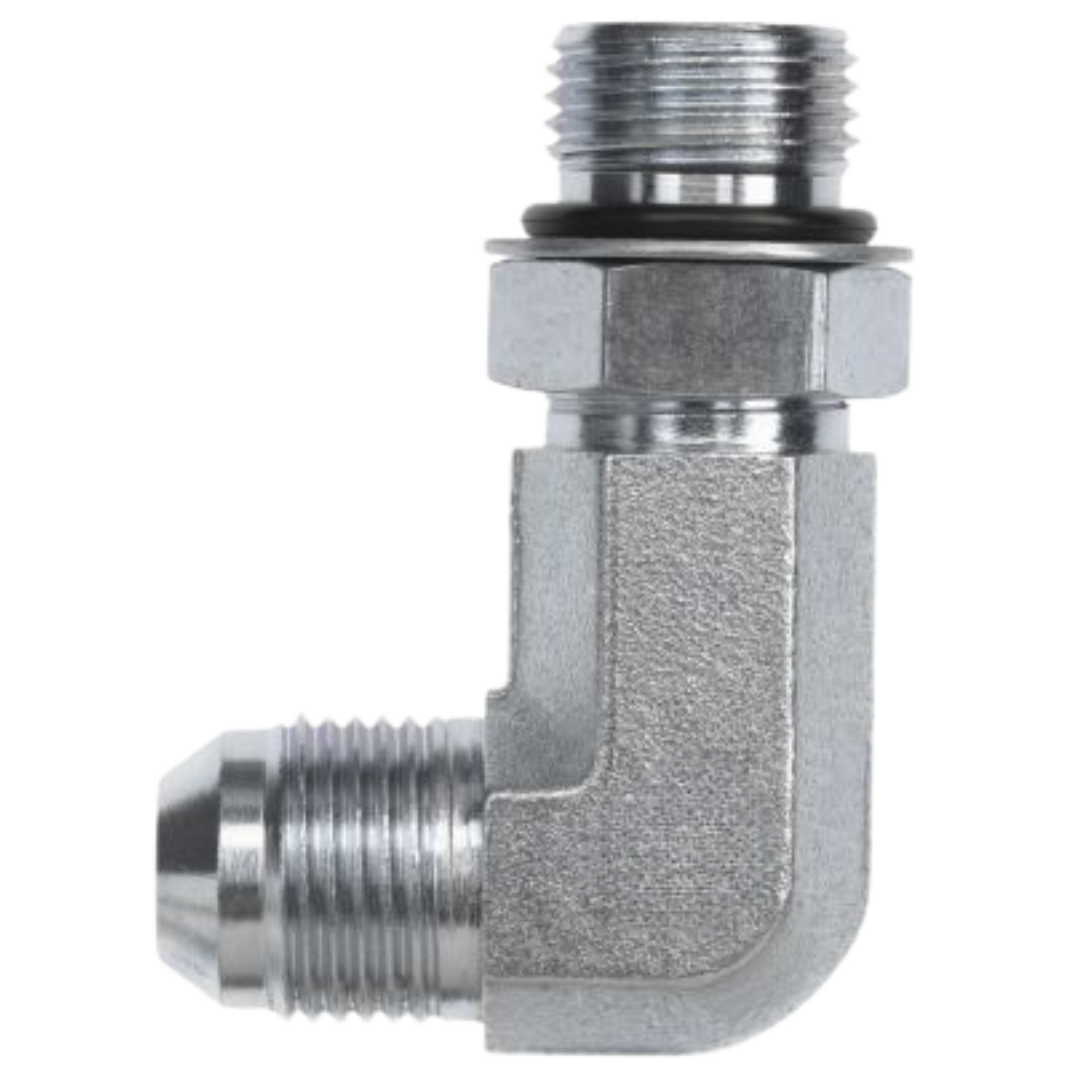

6801-L-12-12-NWO-FG : OneHydraulics 90-Degree Steel Long Adapter, 1-1/16-12 (-12) Male JIC x 1-1/16-12 (-12) Male Adjustable ORB, 5000psi

The Series 6801-L-NWO 90-Degree Angled Male JIC x Male Adjustable ORB long adapters are durable carbon steel fittings designed to provide secure, leak-free connections in hydraulic systems that require extra length. These adapters feature a 90-degree angle, allowing for efficient hose and pipe routing in tight or challenging spaces. One end is equipped with a male JIC (Joint Industry Council) 37° flare connection, while the other end features a male Adjustable ORB (O-Ring Boss) connection, ensuring a reliable, adjustable seal by trapping an O-ring inside the port cavity. The "long" design offers additional length to meet specific system needs. Made from high-strength carbon steel, these adapters are perfect for high-pressure fluid power systems, offering exceptional durability, performance, and reliability in demanding industrial applications. The Series 6801-L-NWO ensures long-lasting, leak-free connections in a variety of hydraulic setups.
