Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Stainless Steel |
| Shape | 90-Degree |
| Pressure Rating | 5400 |
| Series | 6801-L-NWO-FG |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 9/16-18 (-06) |
| Side 1 Type | JIC |
| Side 2 Gender | MALE |
| Side 2 Size | 9/16-18 (-06) |
| Side 2 Type | ORB |
Description

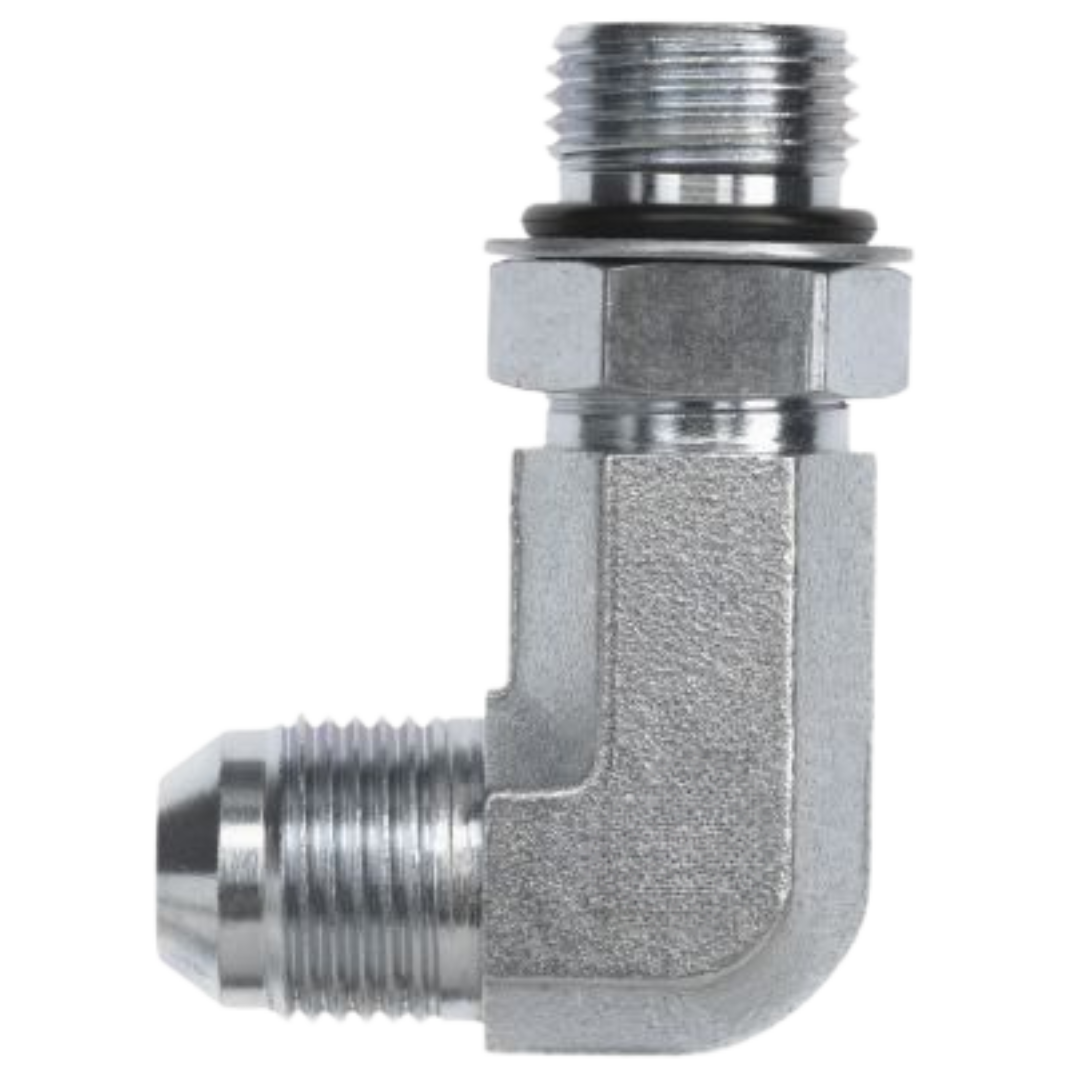

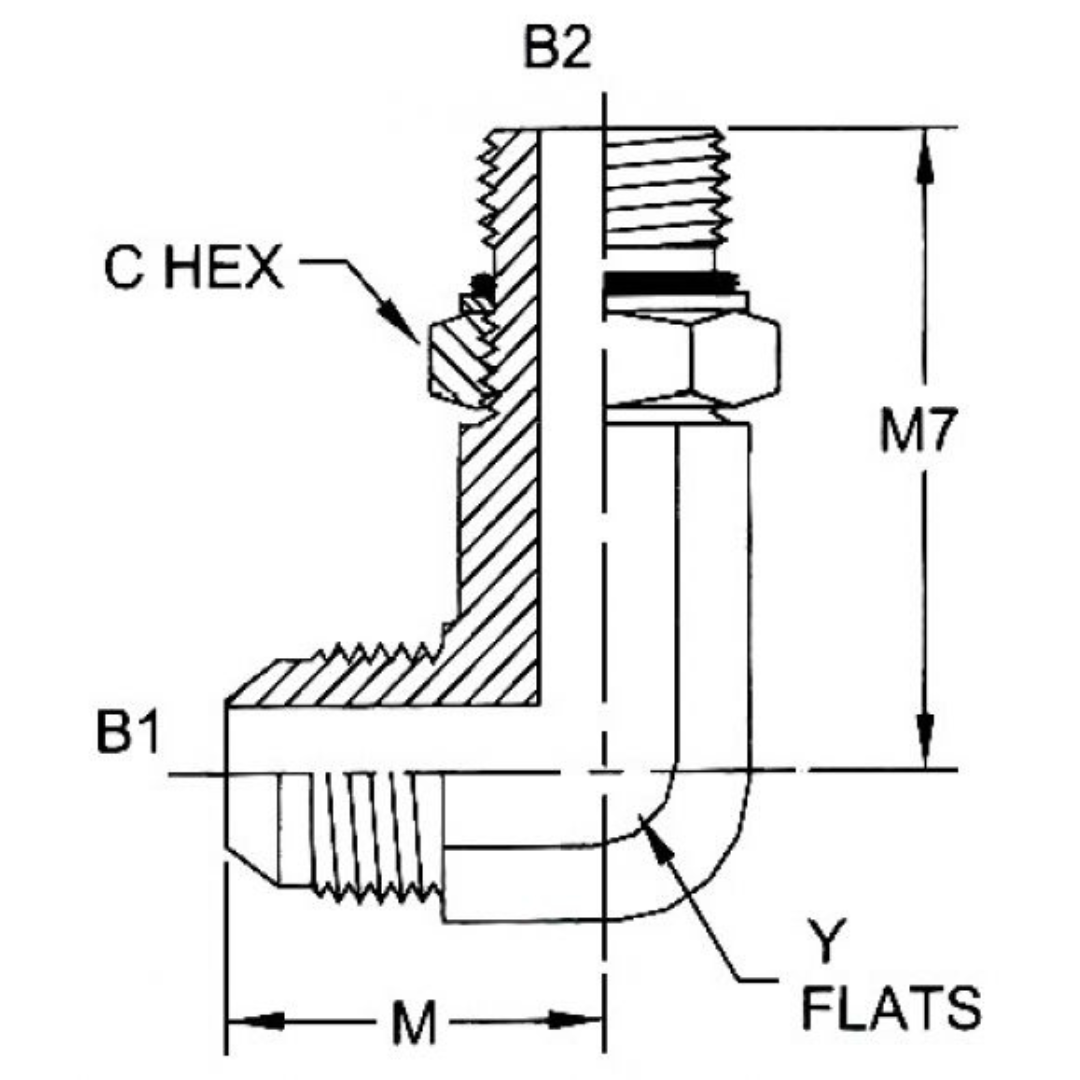

The Series 6801-L-SS Long 90-Degree Male JIC x Male Adjustable ORB Adapters, constructed from high-quality stainless steel, are designed to provide durable, leak-free connections in hydraulic systems that require extended length for flexibility in routing. These adapters feature a 90-degree angle, making them ideal for tight or challenging spaces where standard adapters may not fit. One end has a male JIC (Joint Industry Council) 37° flare connection, while the other features a male Adjustable ORB (O-Ring Boss) connection, which ensures a reliable, adjustable seal by trapping an O-ring inside the port cavity. The "long" design adds extra length to meet specific system requirements. Made from corrosion-resistant stainless steel, these adapters are well-suited for high-pressure fluid power applications, offering exceptional strength, performance, and long-lasting reliability in demanding industrial environments.
