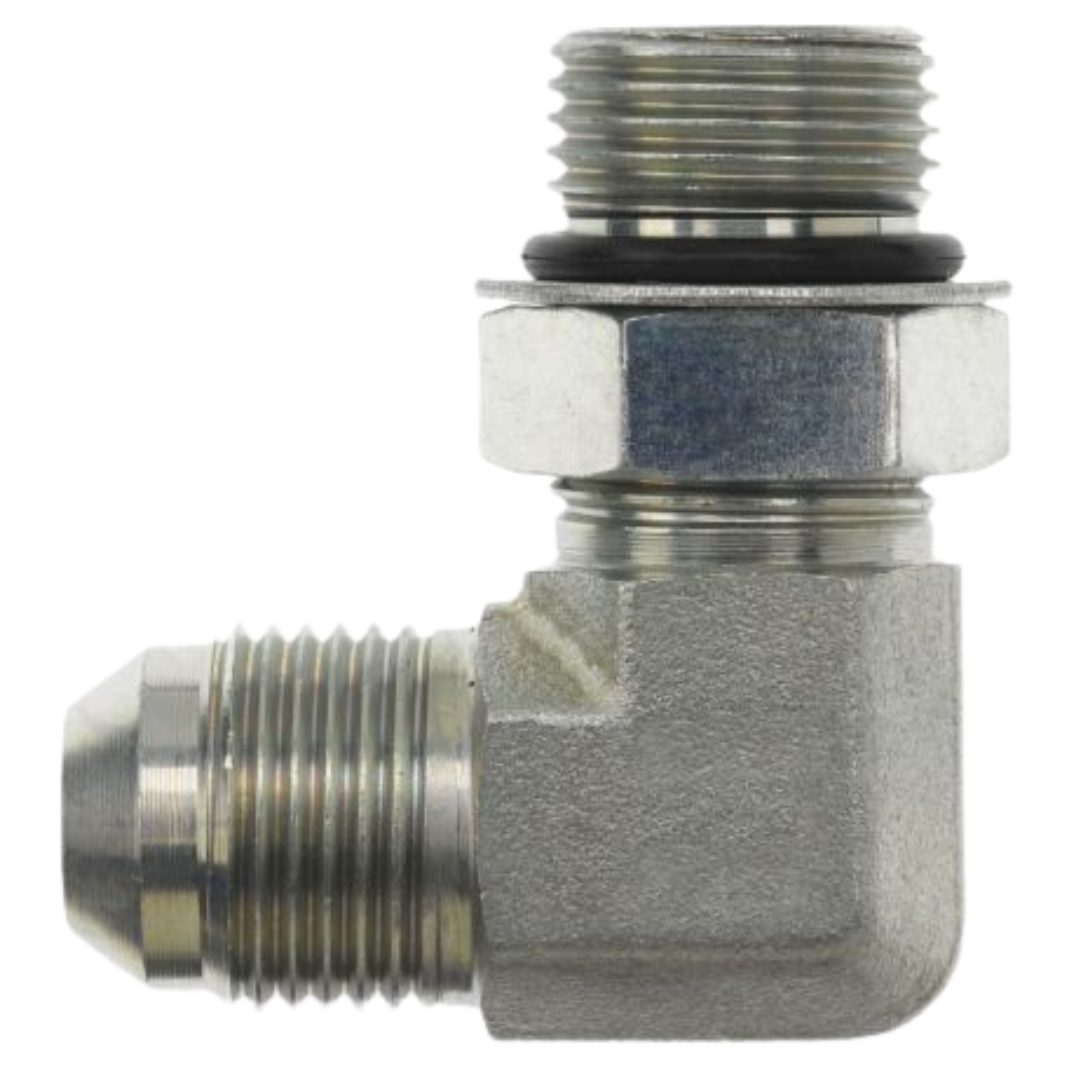

6801-32-32-NWO-FG : OneHydraulics 90-Degree Steel Adapter, 2-1/2-12 (-32) Male JIC x 2-1/2-12 (-32) Male Adjustable ORB, 2000psi
6801-32-32-NWO-FG : OneHydraulics 90-Degree Steel Adapter, 2-1/2-12 (-32) Male JIC x 2-1/2-12 (-32) Male Adjustable ORB, 2000psi
Roll over image to zoom in Click on image to zoom
6801-32-32-NWO-FG : OneHydraulics 90-Degree Steel Adapter, 2-1/2-12 (-32) Male JIC x 2-1/2-12 (-32) Male Adjustable ORB, 2000psi6801-32-32-NWO-FG : OneHydraulics 90-Degree Steel Adapter, 2-1/2-12 (-32) Male JIC x 2-1/2-12 (-32) Male Adjustable ORB, 2000psi

6801-32-32-NWO-FG : OneHydraulics 90-Degree Steel Adapter, 2-1/2-12 (-32) Male JIC x 2-1/2-12 (-32) Male Adjustable ORB, 2000psi

Save $175.71
OneHydraulicsSKU: 6801-32-32-NWO-FG
1-3 Days
98
Price:
$62.88 $238.59

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Stock 98
Factory Location Houston, Texas or Dallas, Texas or Cleveland, Ohio
Material Steel
Pressure Rating 2000
Side 1 Gender MALE
Side 1 Size 2-1/2-12 (-32)
Side 1 Type JIC
Side 2 Gender MALE
Side 2 Size 2-1/2-12 (-32)
Side 2 Type ORB

Description

The Series 6801-NWO 90-Degree Angled Male JIC x Male Adjustable ORB adapters are high-quality carbon steel fittings designed to provide secure, leak-free connections in hydraulic systems. Featuring a 90-degree angle, these adapters are perfect for applications where space is limited, allowing for efficient hose and pipe routing. One end is equipped with a male JIC (Joint Industry Council) 37° flare connection, while the other end features a male Adjustable ORB (O-Ring Boss) connection, which provides a reliable, adjustable seal by trapping an O-ring inside the port cavity. This combination ensures a strong, mechanical seal, making the Series 6801-NWO ideal for high-pressure fluid power systems. Made from durable carbon steel, these adapters offer exceptional performance and corrosion resistance, providing long-lasting, reliable connections in demanding industrial applications.
