Product Details
| Usually Ships Within | 1-3 Days |
|---|---|
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | Tee |
| Series | 6660-FG |

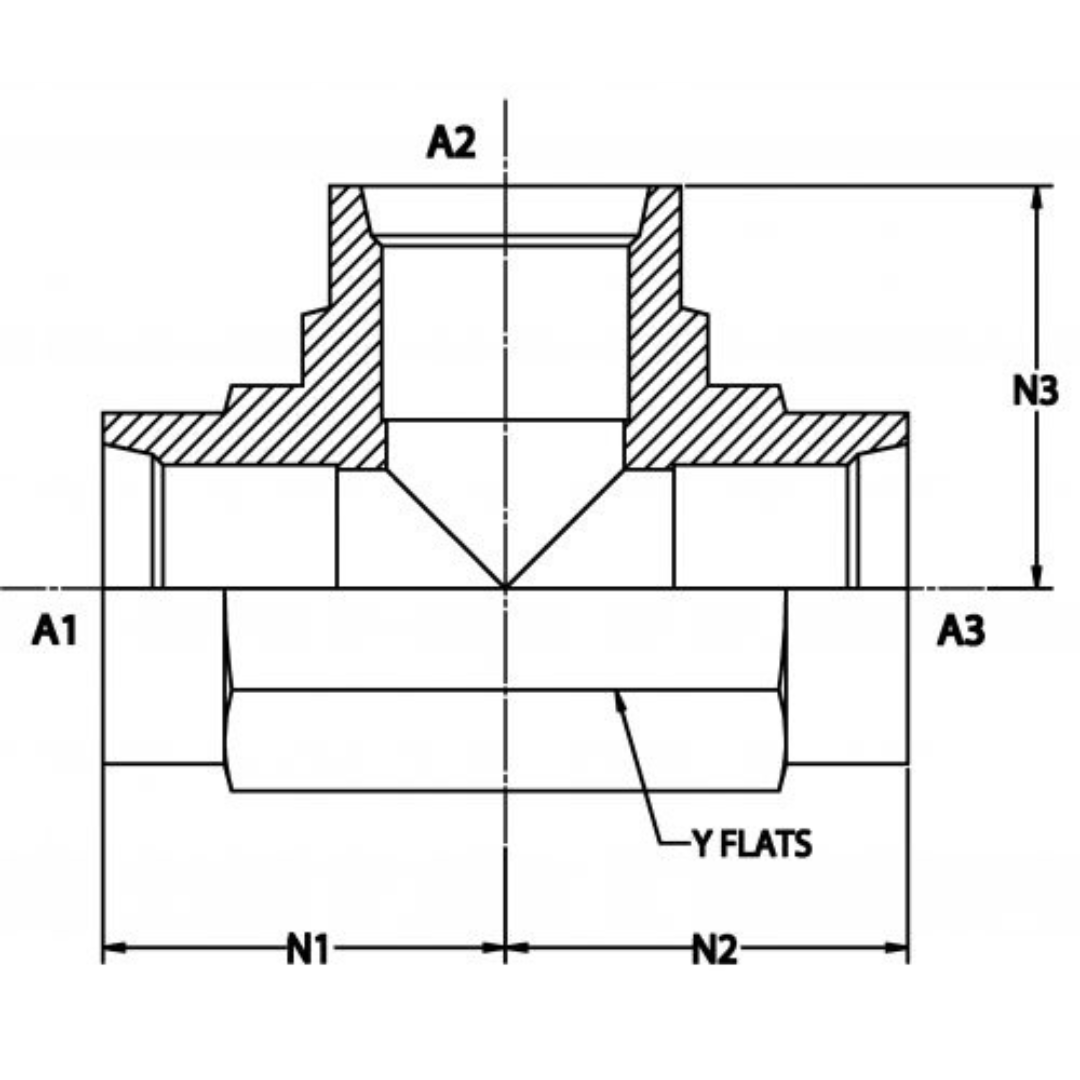

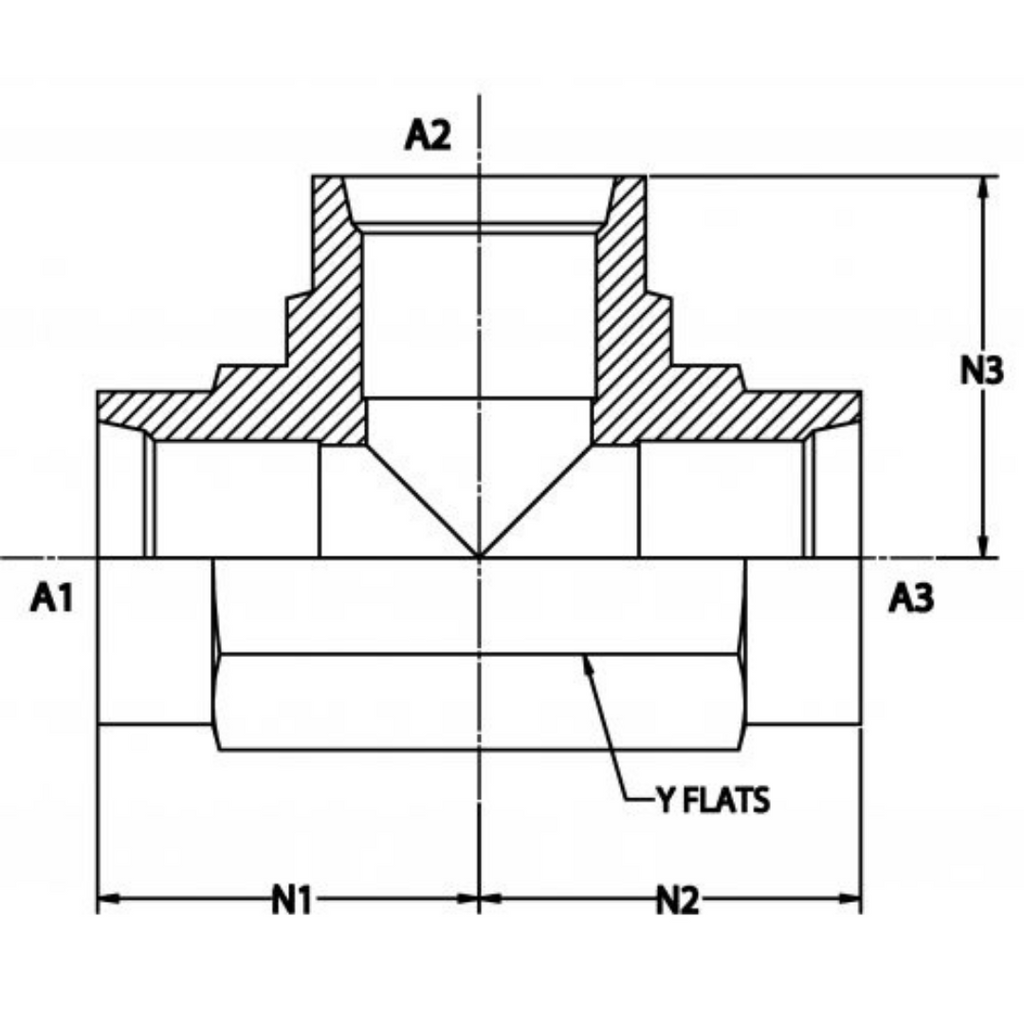

| Special Dims | Y Flats 1.062, N1 Length 1.180, N2 Length 1.180, N3 Length 1.180, A1 FORB 7/8-14, A2 FORB 7/8-14, A3 FORB 7/8-14 |
| Country of Manufacture | China |
| Side 1 Gender | FEMALE |
| Side 1 Size | 7/8-14 (-10) |
| Side 1 Type | ORB |
| Side 2 Gender | FEMALE |
| Side 2 Size | 7/8-14 (-10) |
| Side 2 Type | ORB |
| Side 3 Gender | FEMALE |
| Side 3 Size | 7/8-14 (-10) |
| Side 3 Type | ORB |
Description

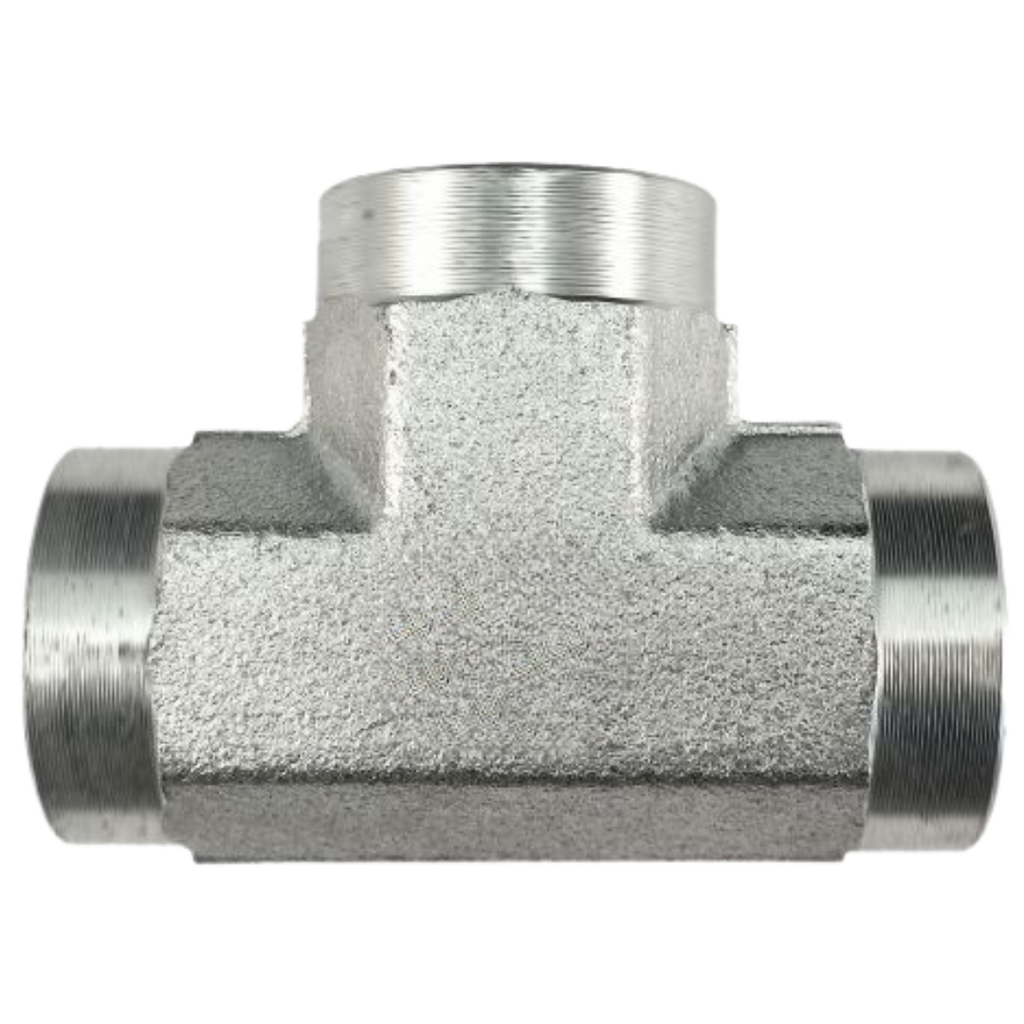

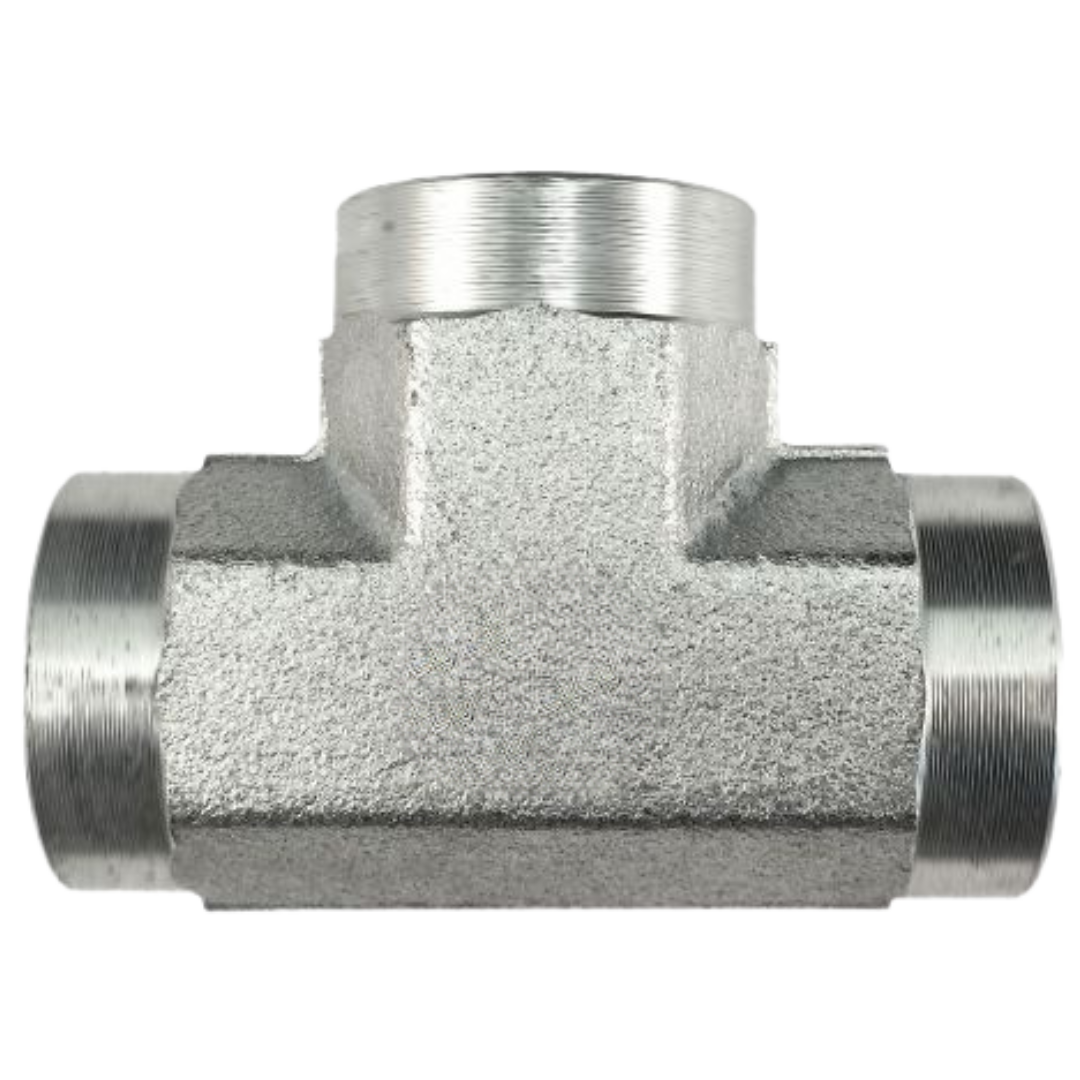

The Series 6660 Tee Female ORB x Female ORB x Female ORB rigid adapters are high-quality carbon steel fittings designed to provide secure, leak-free connections in hydraulic and fluid power systems. These tee adapters feature a three-way design, with three female ORB (O-Ring Boss) connections, ideal for efficiently routing fluid between components. The female ORB connections use straight threads and a chamfer where the O-ring seats, ensuring a tight, leak-proof seal when connected to male ORB fittings. Known for their excellent leak prevention, ORB connections are widely recommended for high-pressure systems due to their durable, mechanical sealing. Made from carbon steel, these adapters offer superior strength, corrosion resistance, and long-lasting durability, making them perfect for industrial applications that require flexible, reliable, and efficient fluid routing. The Series 6660 adapters provide a secure, dependable solution for fluid transfer in demanding environments.
