Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | Same Day |
| Factory Stock | 297 |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | Tee |
| Pressure Rating | 5000 |
| Series | 6606-FG |
| Country of Manufacture | China |
| Side 1 Gender | FEMALE |
| Side 1 Size | 9/16-18 (-06) |
| Side 1 Type | JIC |
| Side 2 Gender | FEMALE |
| Side 2 Size | 9/16-18 (-06) |
| Side 2 Type | JIC |
| Side 3 Gender | FEMALE |
| Side 3 Size | 9/16-18 (-06) |
| Side 3 Type | JIC |
Description

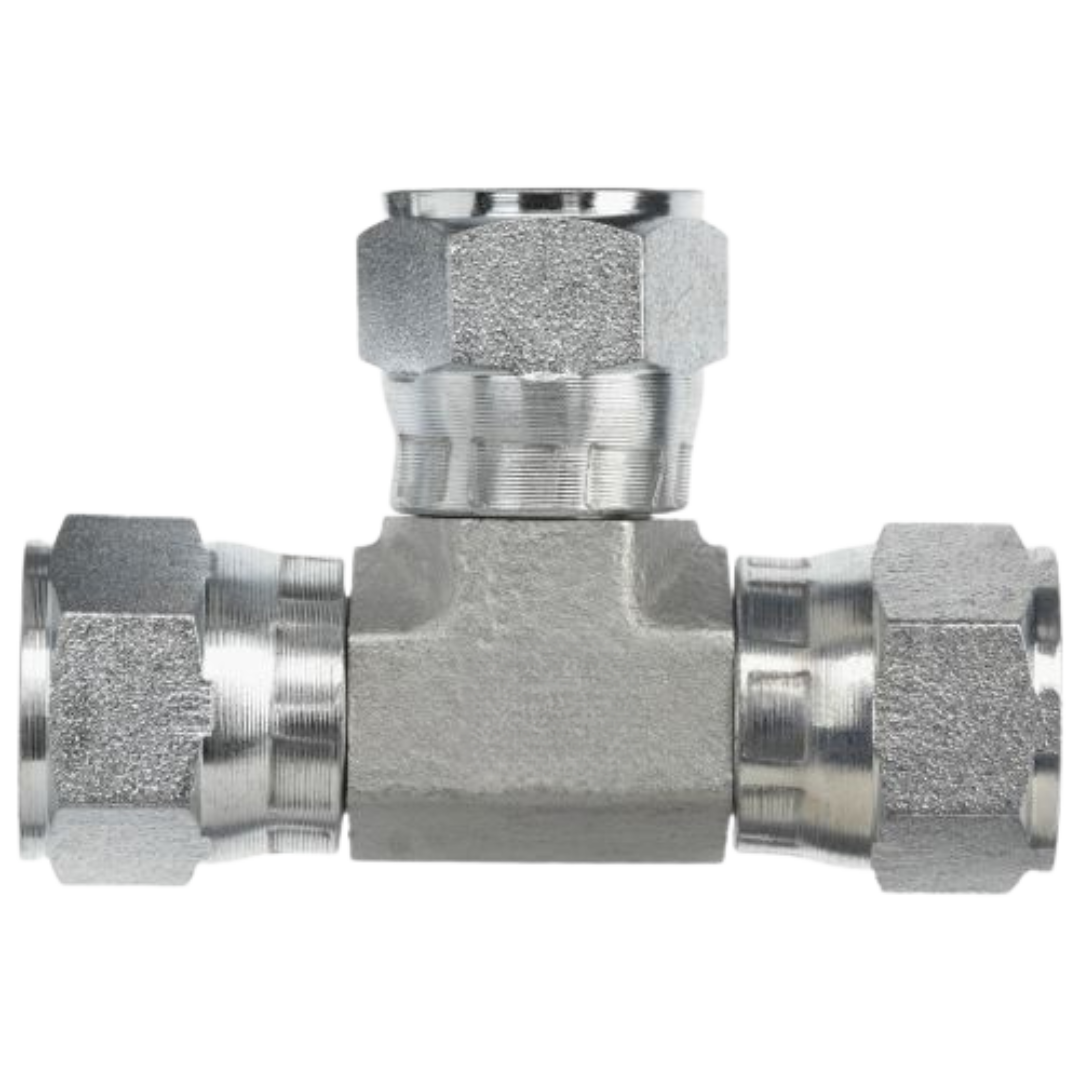

The Series 6606 Tee Female JIC Swivel x Female JIC Swivel x Female JIC Swivel adapters are durable carbon steel fittings designed to provide secure, leak-free connections in hydraulic and fluid power systems. These tee adapters feature a three-way design, with three female JIC Swivel connections, each providing flexibility in connecting hydraulic components. The female JIC Swivel connections feature 37° tapered seats, which create a tight, leak-proof seal when connected to male JIC fittings. Known for their reliable, high-performance sealing, these adapters are ideal for fluid power systems that require efficient fluid routing. Constructed from carbon steel, the Series 6606 adapters offer exceptional strength, corrosion resistance, and long-lasting durability, making them perfect for high-pressure applications. These adapters provide a dependable, flexible solution for fluid routing in industrial environments, ensuring efficient and reliable fluid transfer.
