Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | Tee |
| Pressure Rating | 6000 |
| Series | 6605-FG |
| Country of Manufacture | China |
| Side 1 Gender | FEMALE |
| Side 1 Size | 7/16-20 (-04) |
| Side 1 Type | JIC |
| Side 2 Gender | FEMALE |
| Side 2 Size | 7/16-20 (-04) |
| Side 2 Type | JIC |
| Side 3 Gender | FEMALE |
| Side 3 Size | 1/4-18 (-04) |
| Side 3 Type | NPT |
Description

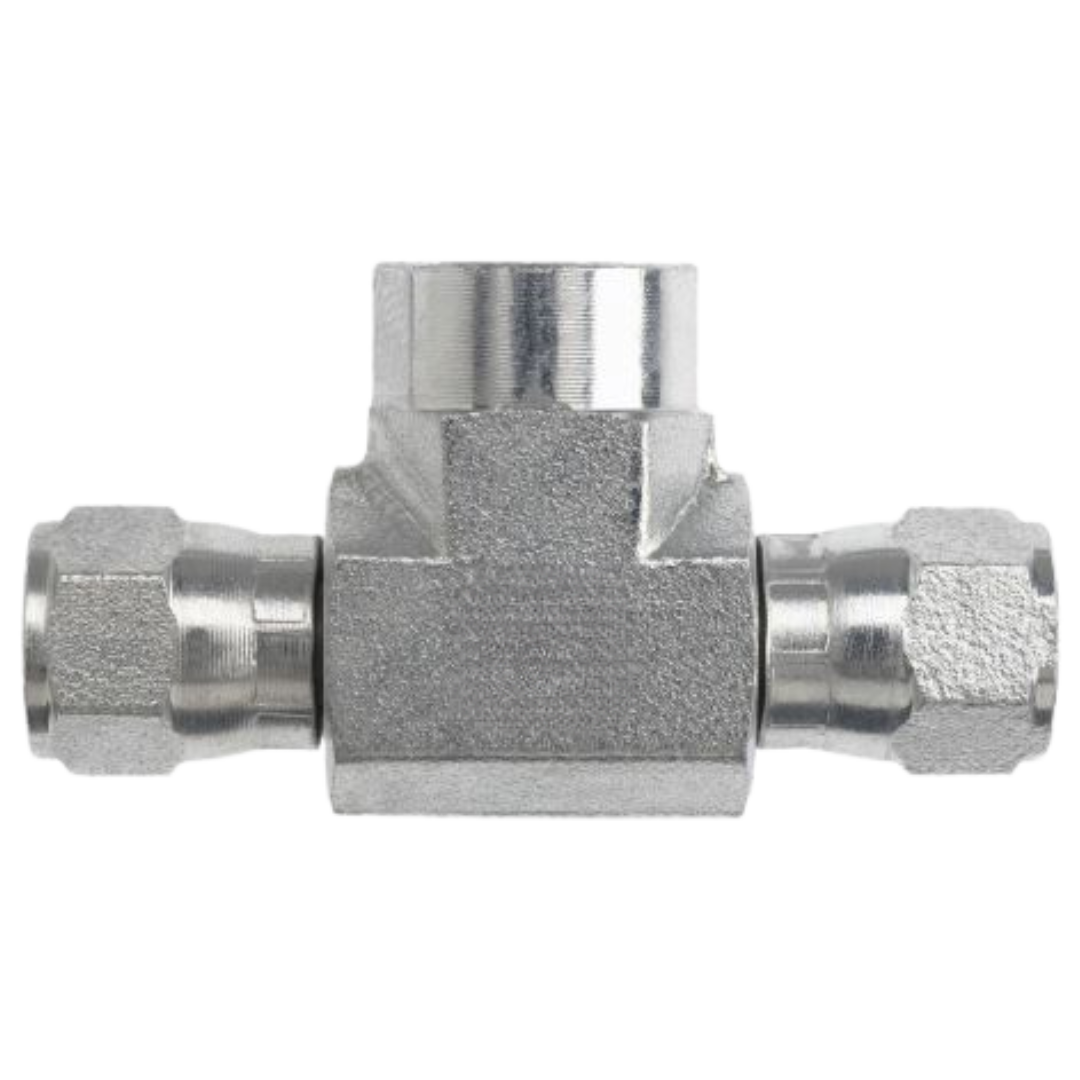

The Series 6605 Tee Female JIC Swivel x Female JIC Swivel x Female NPT adapters are durable carbon steel fittings designed for efficient and secure fluid routing in hydraulic and fluid power systems. These tee adapters feature a three-way design, with two female JIC Swivel connections and one female NPT (National Pipe Tapered) connection. The female JIC Swivel connections are designed with 37° tapered seats, ensuring a reliable, leak-proof seal when paired with male JIC fittings. The female NPT connection provides a tapered thread connection, commonly used for pipe systems that require a metal-to-metal seal. Made from carbon steel, these adapters offer excellent strength, corrosion resistance, and long-lasting durability, making them ideal for high-pressure applications. The Series 6605 adapters provide a reliable solution for fluid transfer in industrial environments, ensuring efficient and flexible fluid routing in demanding systems.
