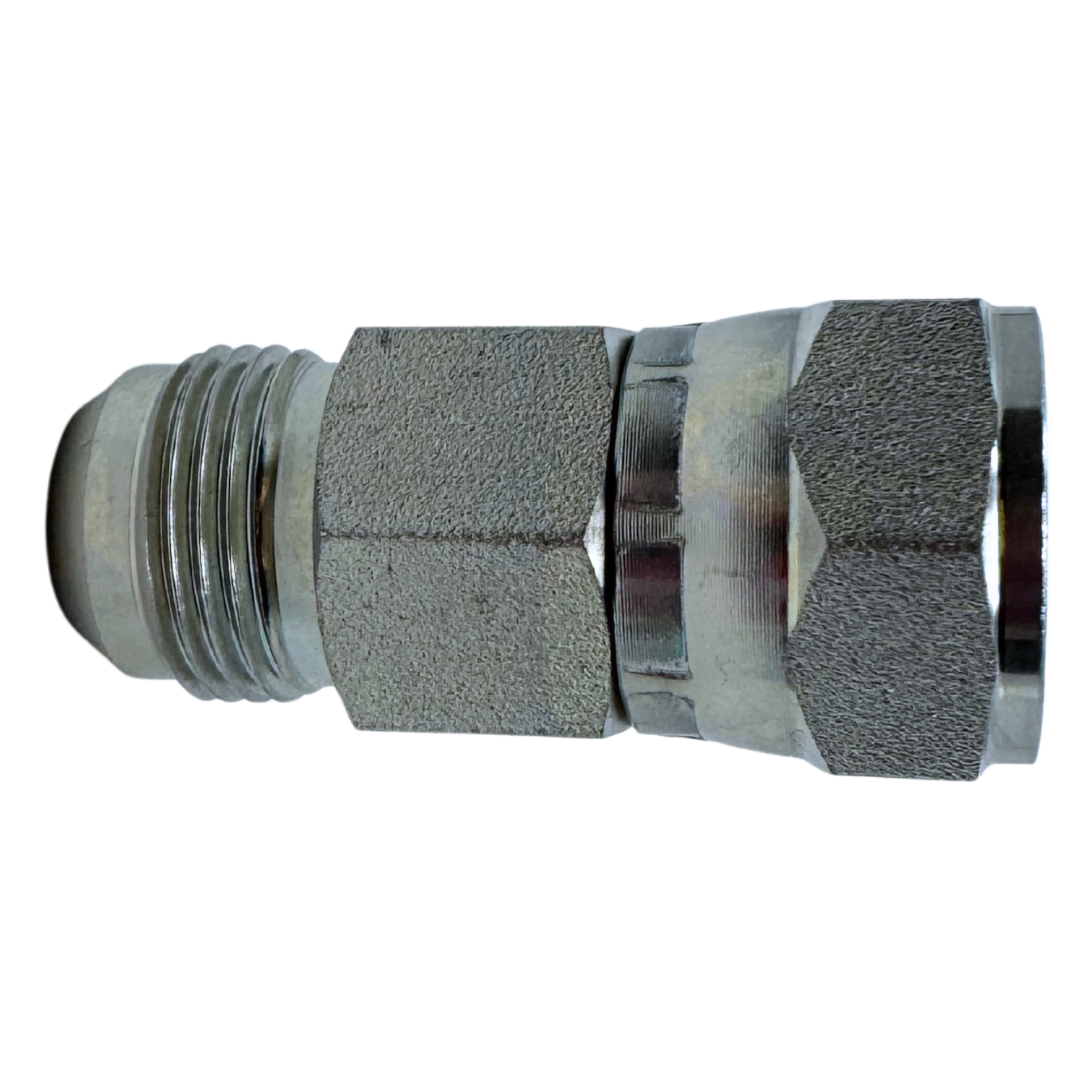

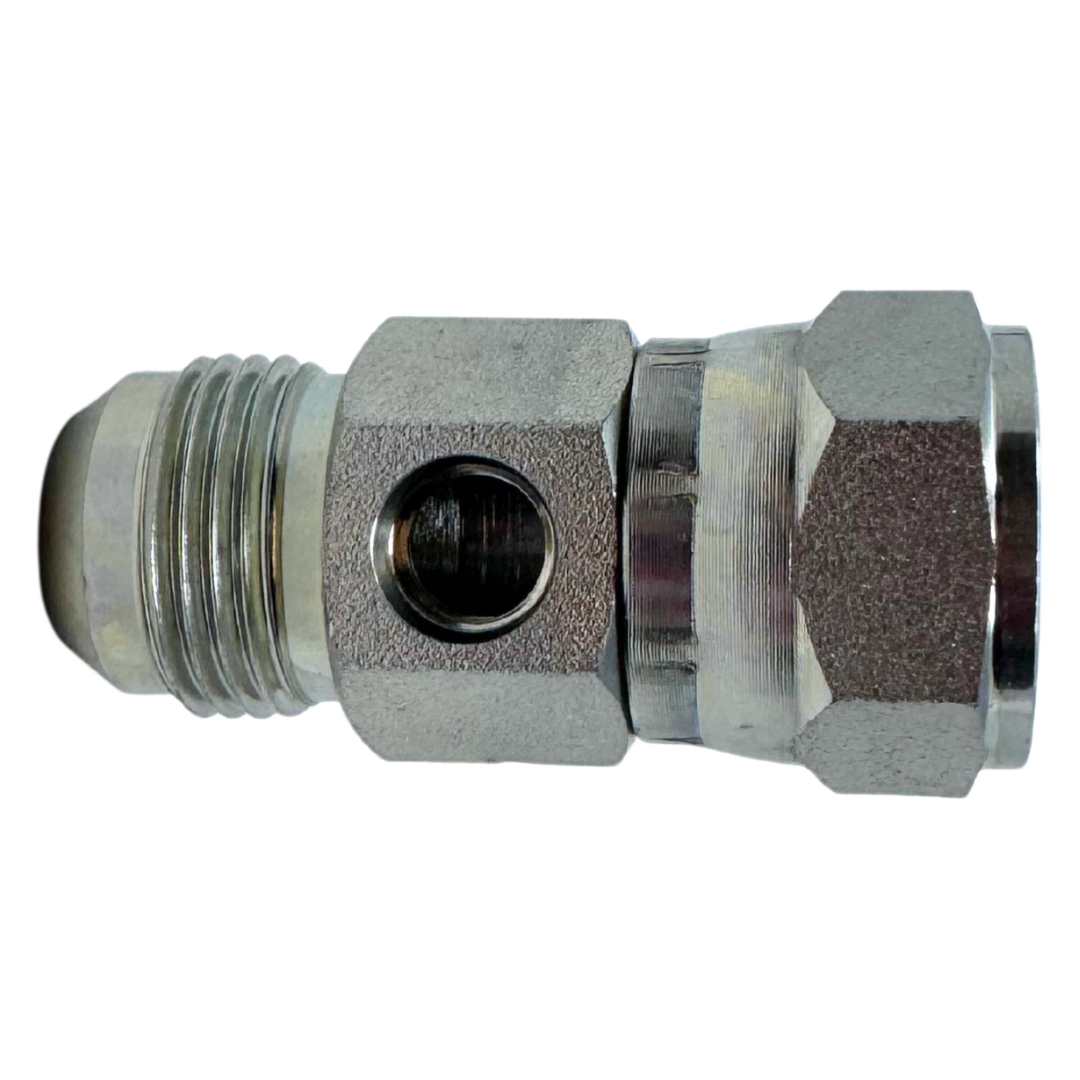

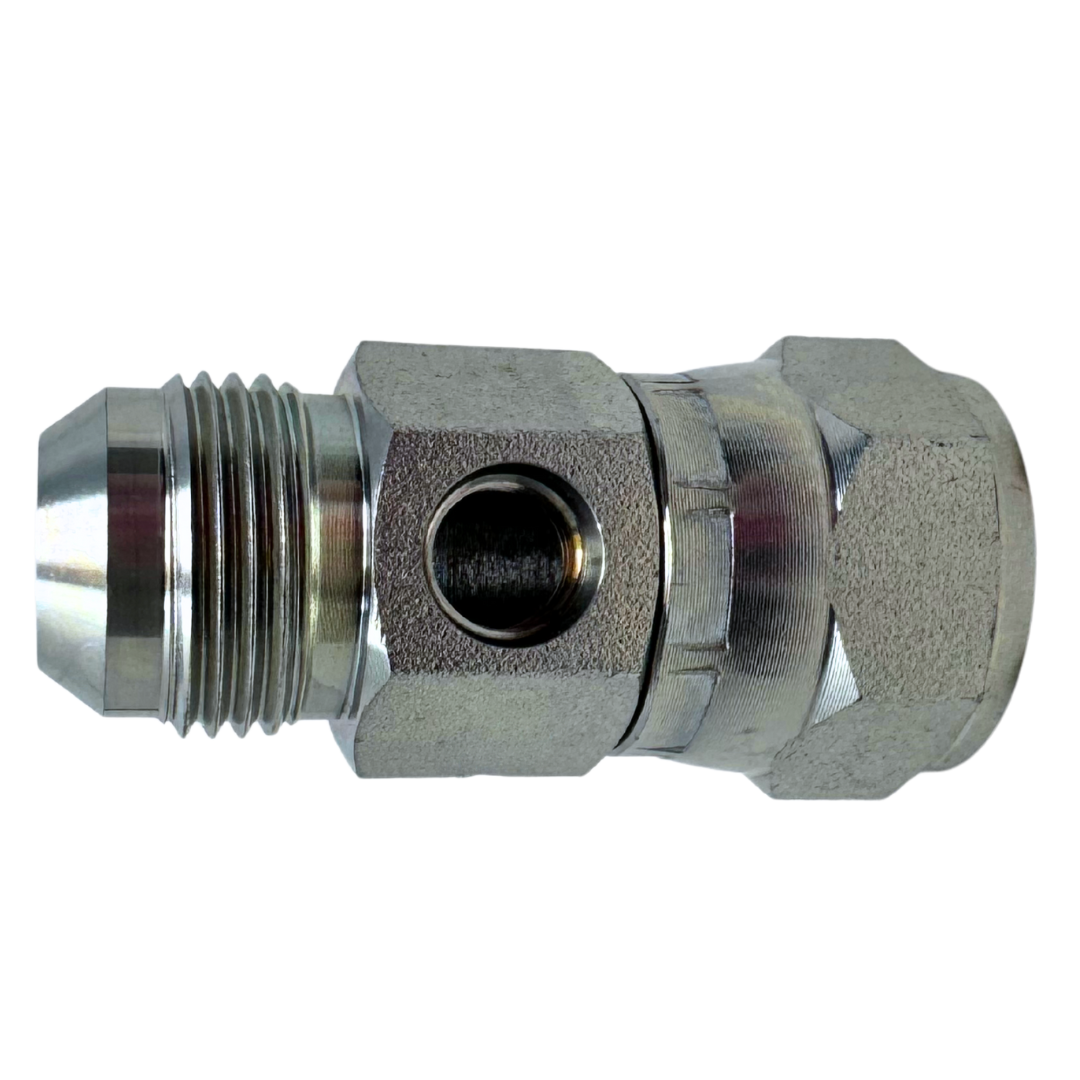

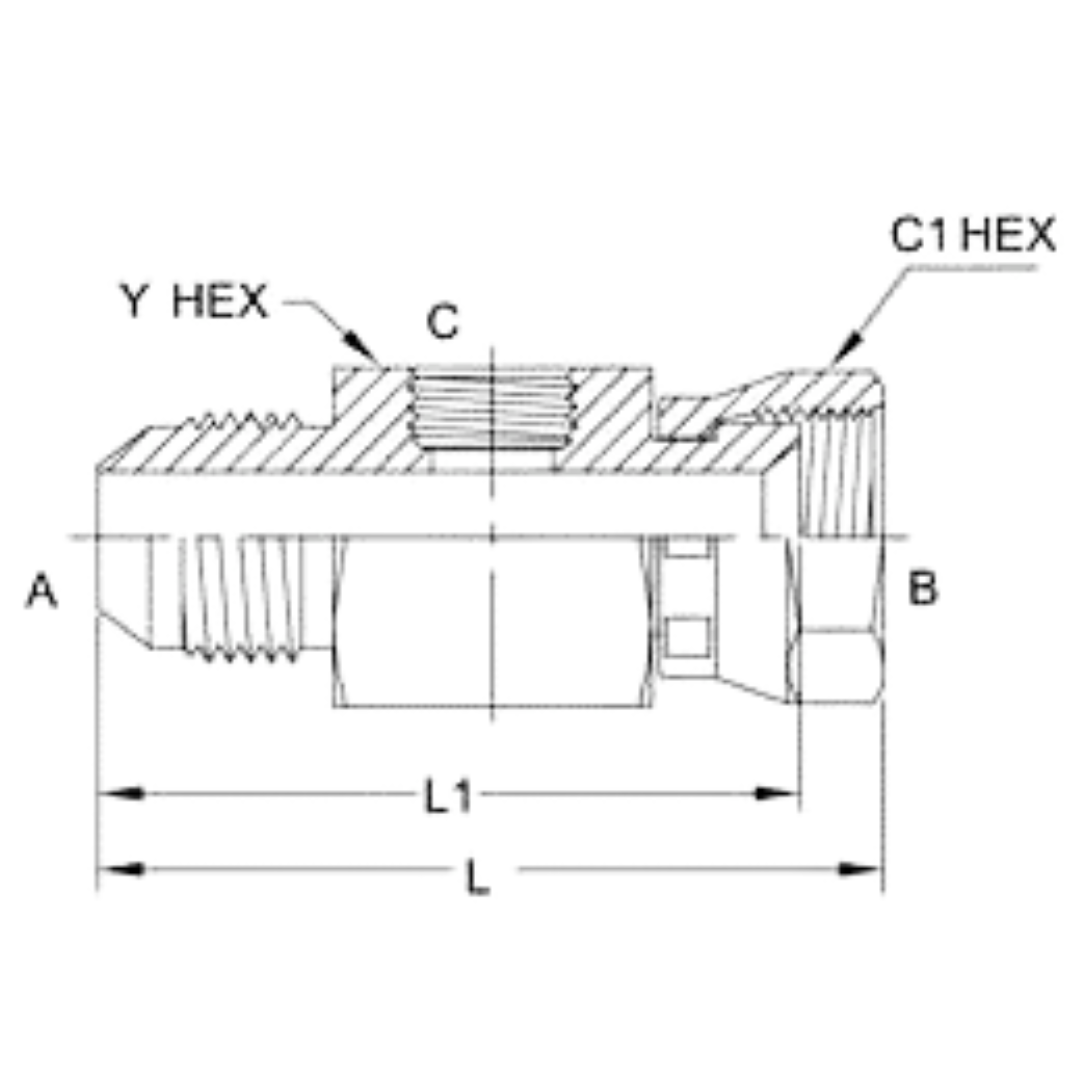

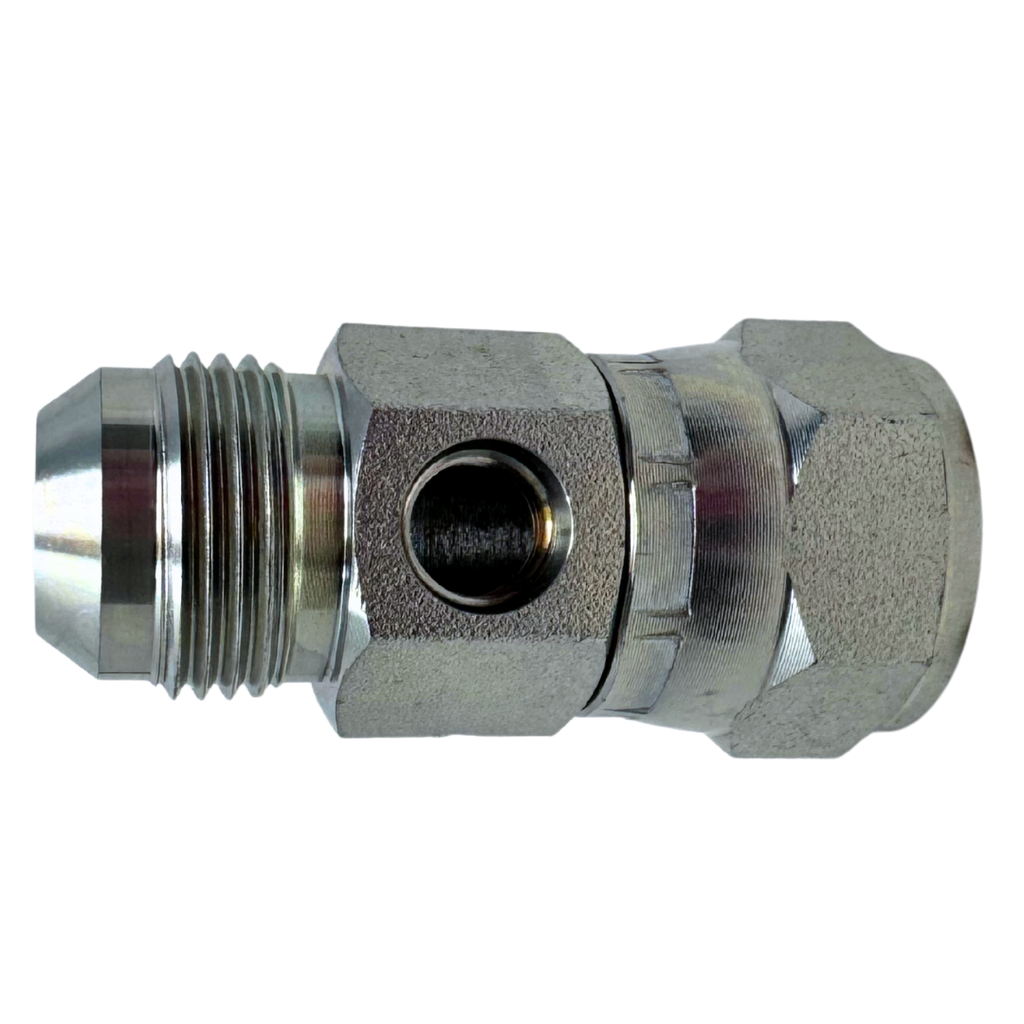

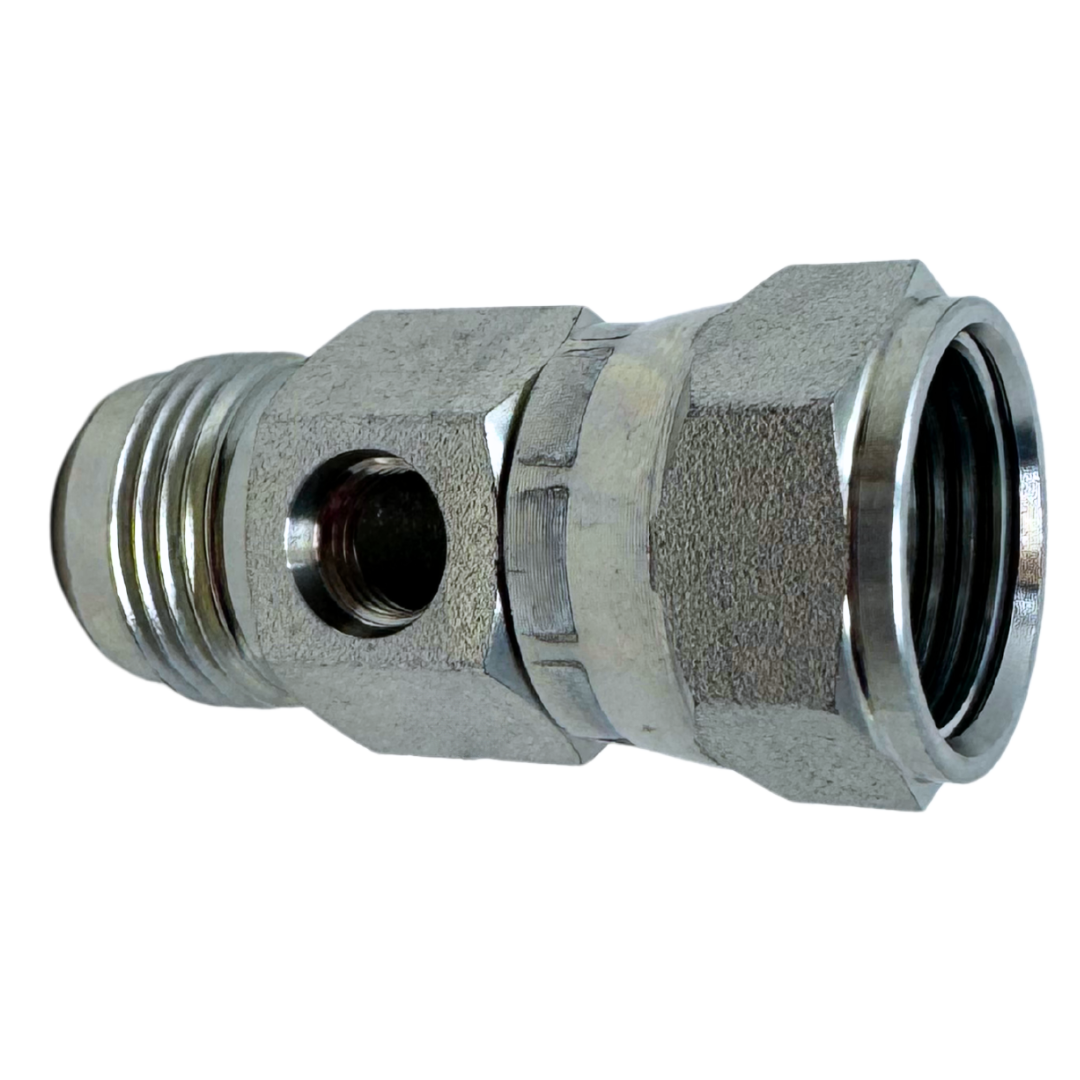

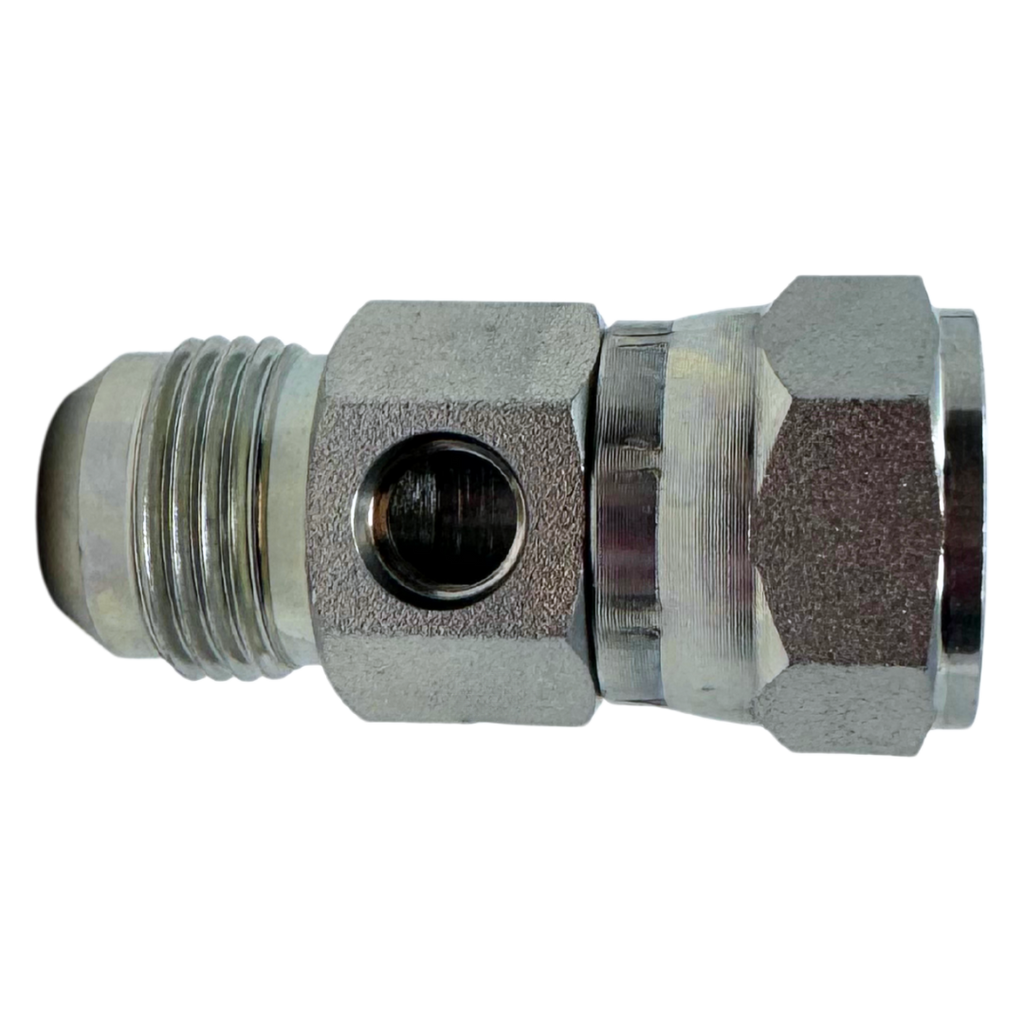

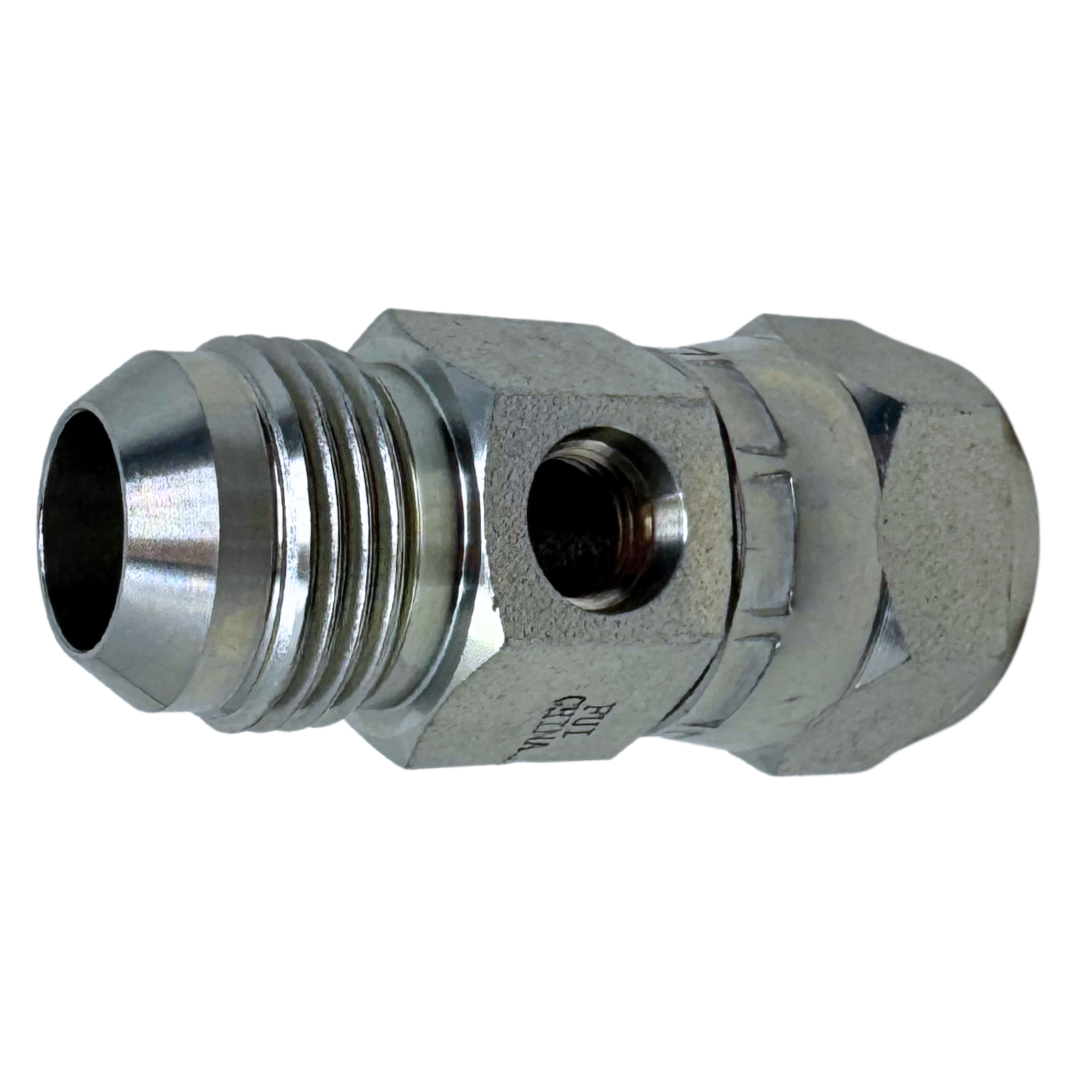

The Series 6564-FG Tee Adapter, designed with Male JIC x Female JIC Swivel x Female ORB connections, is a versatile hydraulic fitting often referred to as a gauge adapter. It allows users to easily “tee” a pressure gauge or hose whip into a line through the smaller female ORB (O-Ring Boss) port. The JIC (Joint Industry Council) ends feature a 37° flare design that provides a strong, leak-free mechanical seal, while the female JIC swivel connection simplifies installation by allowing rotation without twisting the hose. The ORB connection, which uses an O-ring and straight thread, delivers a reliable hydraulic seal capable of withstanding high pressure. This carbon steel adapter ensures efficient, leak-free connections in diagnostic, monitoring, and control applications across hydraulic and fluid power systems.
Product Details
| Usually Ships Within | 1-3 Days |
|---|---|
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | Tee |
| Pressure Rating | 5000 |
| Series | 6564-FG |
| Country of Manufacture | China |
| Height | 1.000 |
| Length | 2.40 |
| Width | 1.000 |
| Weight | 1.5 |
| Side 1 Gender | MALE |
| Side 1 Size | 7/8-14 (-10) |
| Side 1 Type | JIC |
| Side 2 Gender | FEMALE |
| Side 2 Size | 7/8-14 (-10) |
| Side 2 Type | JIC |
| Side 3 Gender | FEMALE |
| Side 3 Size | 7/16-20 (-04) |
| Side 3 Type | ORB |
