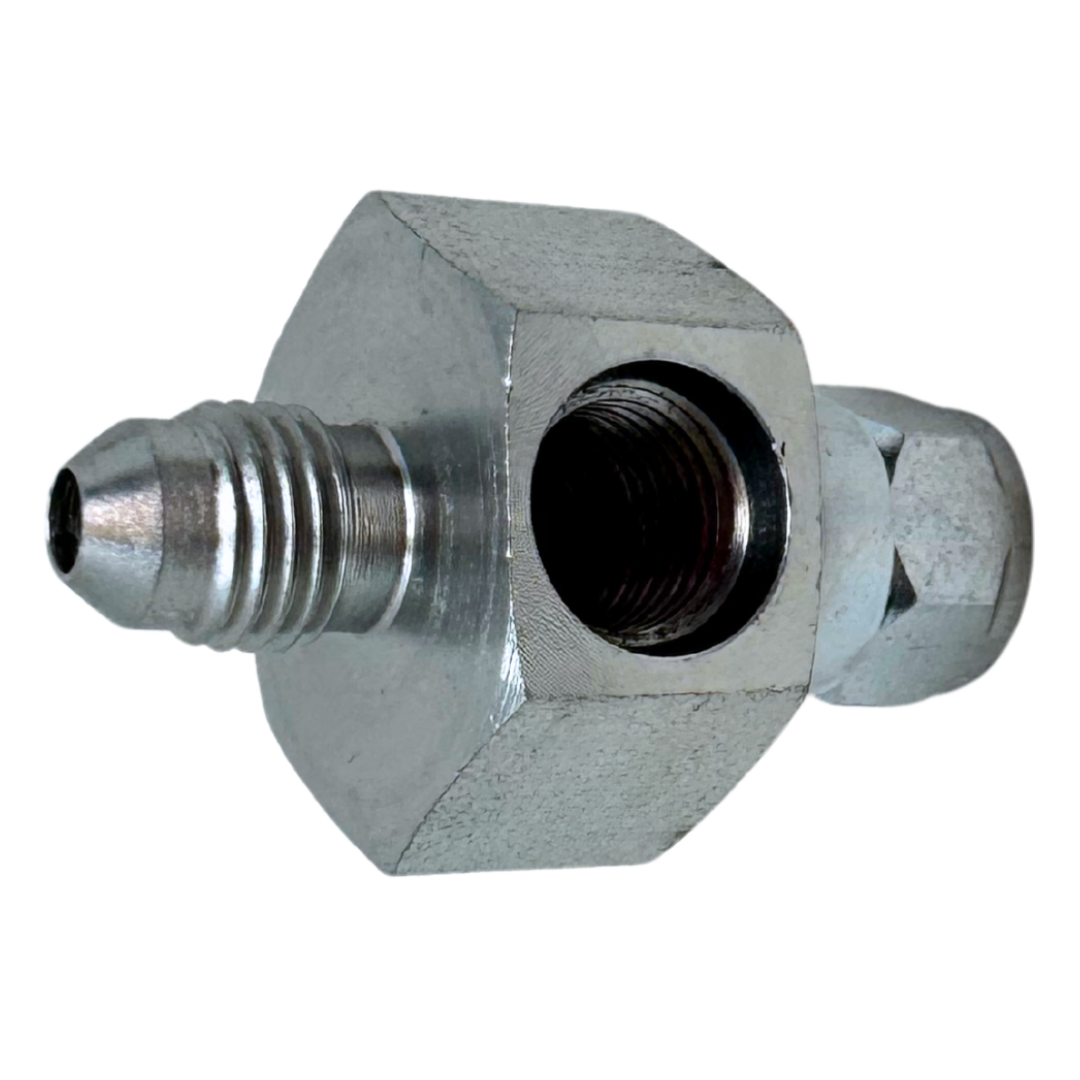

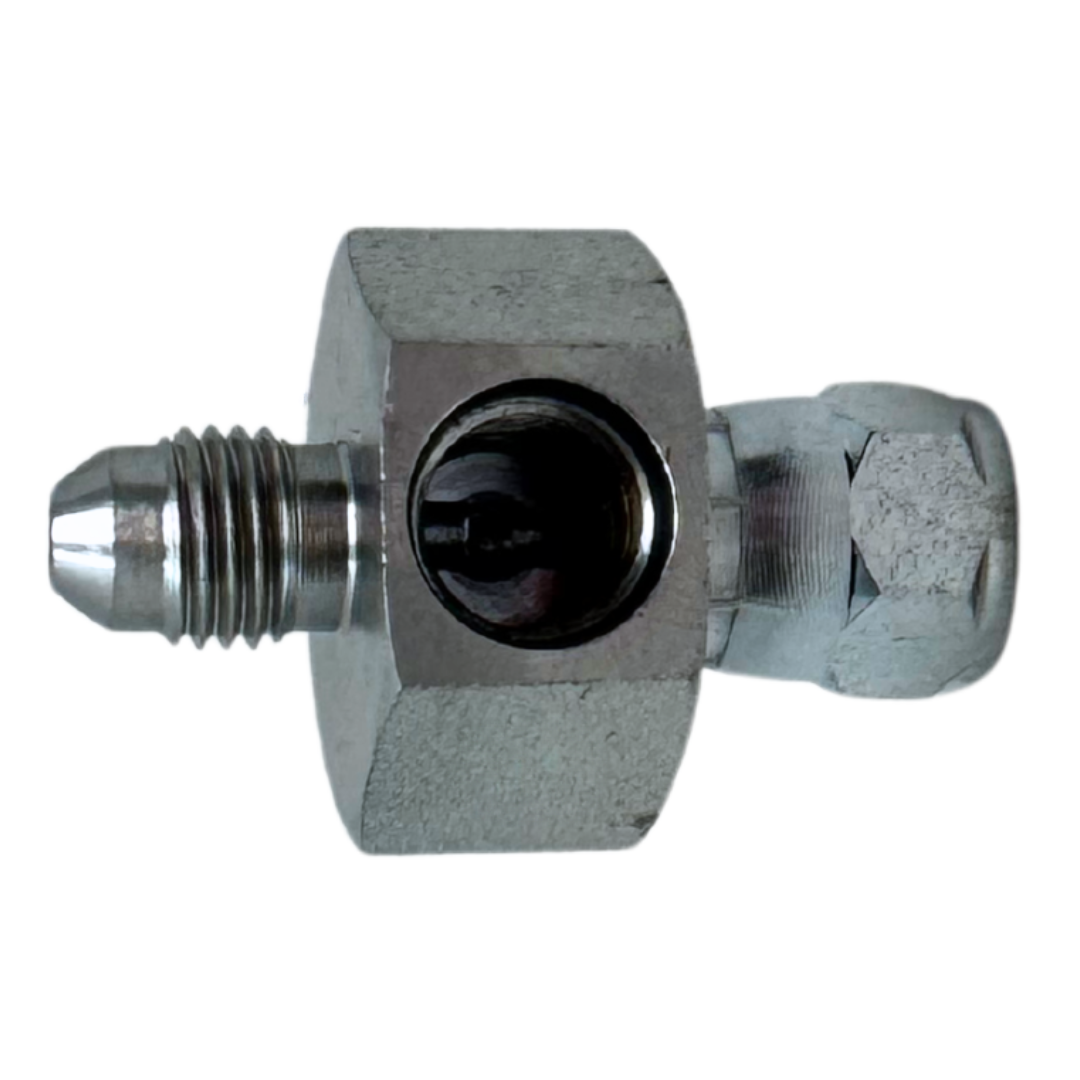

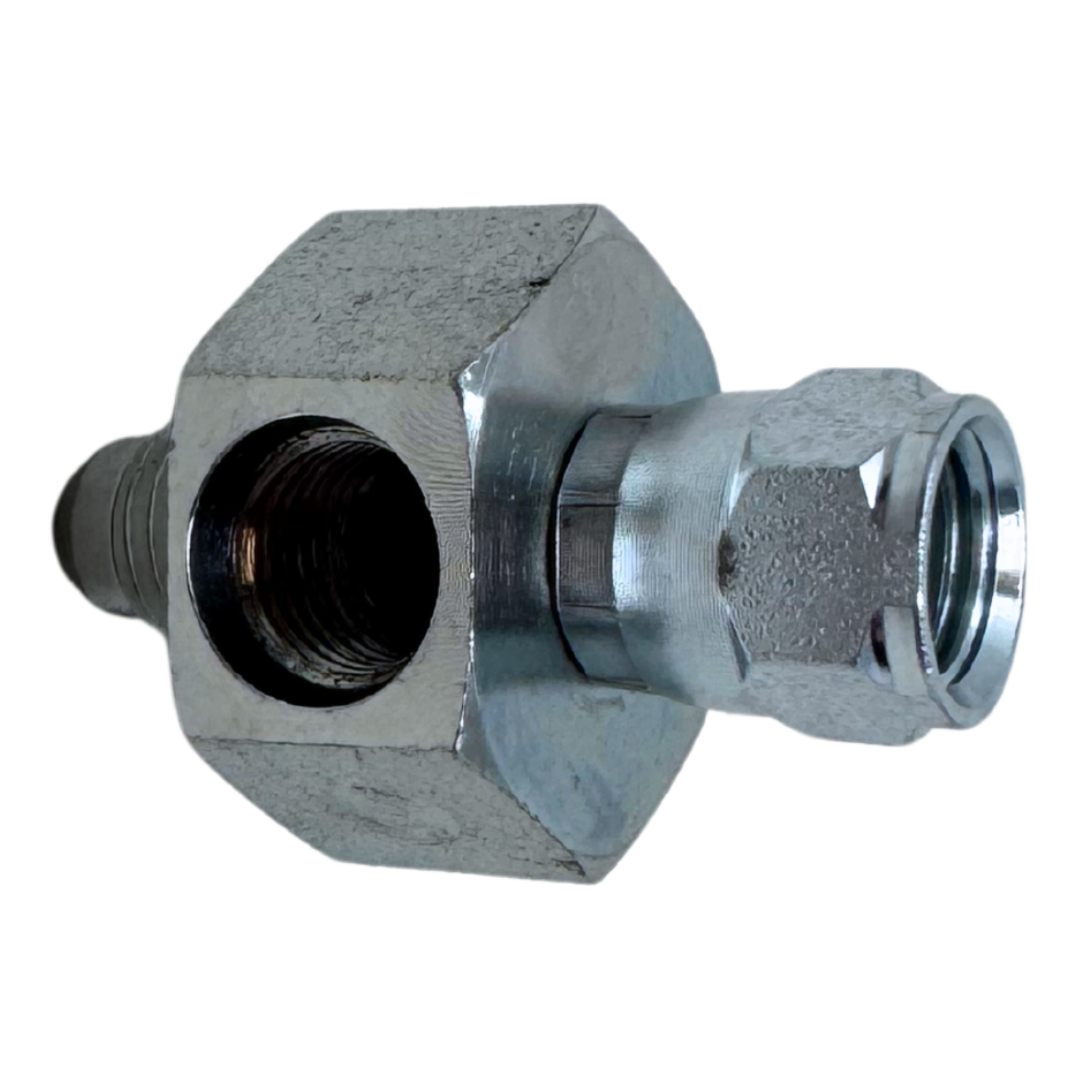

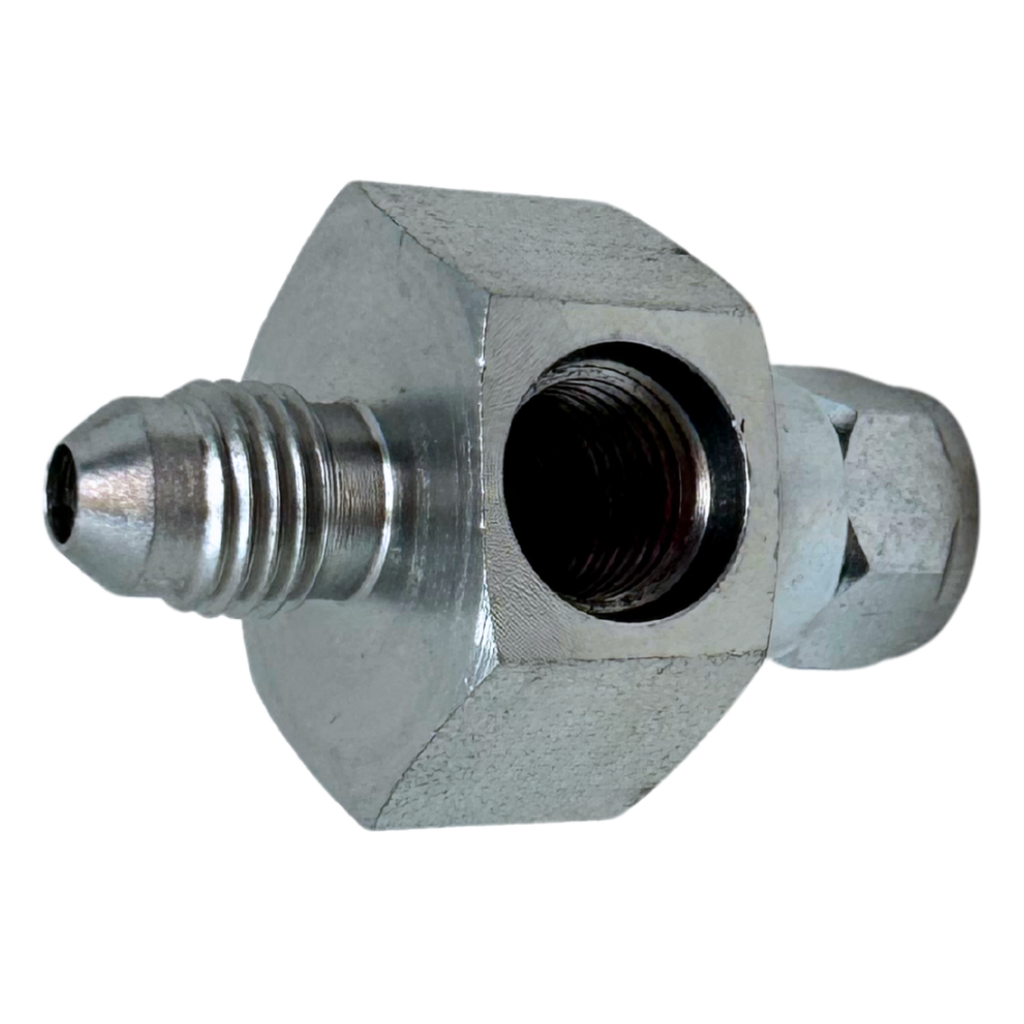

The Series 6564-FG Tee Adapter, designed with Male JIC x Female JIC Swivel x Female ORB connections, is a versatile hydraulic fitting often referred to as a gauge adapter. It allows users to easily “tee” a pressure gauge or hose whip into a line through the smaller female ORB (O-Ring Boss) port. The JIC (Joint Industry Council) ends feature a 37° flare design that provides a strong, leak-free mechanical seal, while the female JIC swivel connection simplifies installation by allowing rotation without twisting the hose. The ORB connection, which uses an O-ring and straight thread, delivers a reliable hydraulic seal capable of withstanding high pressure. This carbon steel adapter ensures efficient, leak-free connections in diagnostic, monitoring, and control applications across hydraulic and fluid power systems.
⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Product Details
| Usually Ships Within | 1-3 Days |
|---|---|
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | Tee |
| Pressure Rating | 5000 |
| Series | 6564-FG |
| Country of Manufacture | China |
| Height | 0.688 |
| Length | 1.95 |
| Width | 0.688 |
| Weight | 1 |
| Side 1 Gender | MALE |
| Side 1 Size | 9/16-18 (-06) |
| Side 1 Type | JIC |
| Side 2 Gender | FEMALE |
| Side 2 Size | 9/16-18 (-06) |
| Side 2 Type | JIC |
| Side 3 Gender | FEMALE |
| Side 3 Size | 7/16-20 (-04) |
| Side 3 Type | ORB |
