Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Stainless Steel |
| Shape | 90-Degree |
| Pressure Rating | 6000 |
| Series | 6503-FG |
| Country of Manufacture | China |
| Side 1 Gender | FEMALE |
| Side 1 Size | 1/4-18 (-04) |
| Side 1 Type | NPT |
| Side 2 Gender | FEMALE |
| Side 2 Size | 1/2-20 (-05) |
| Side 2 Type | JIC |

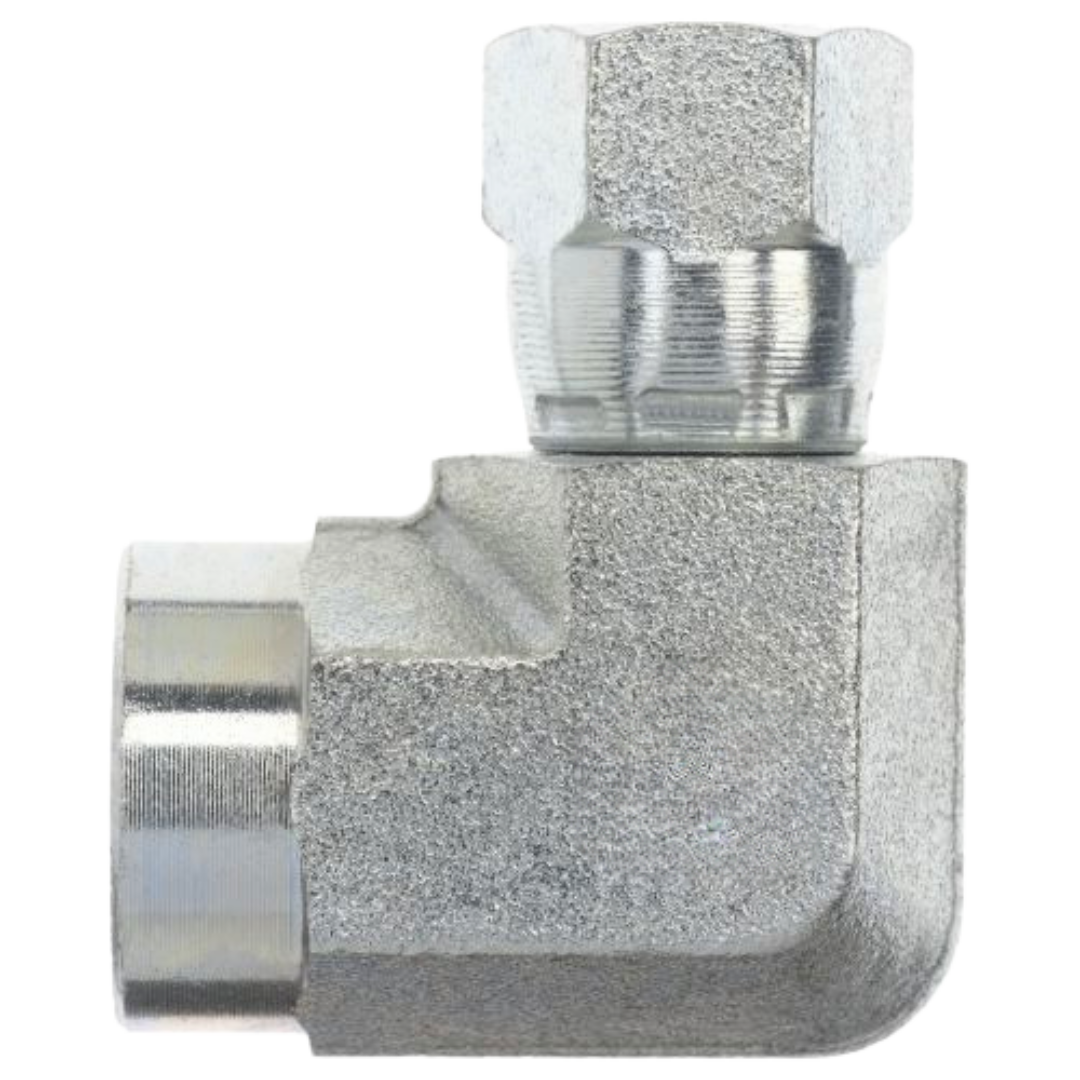

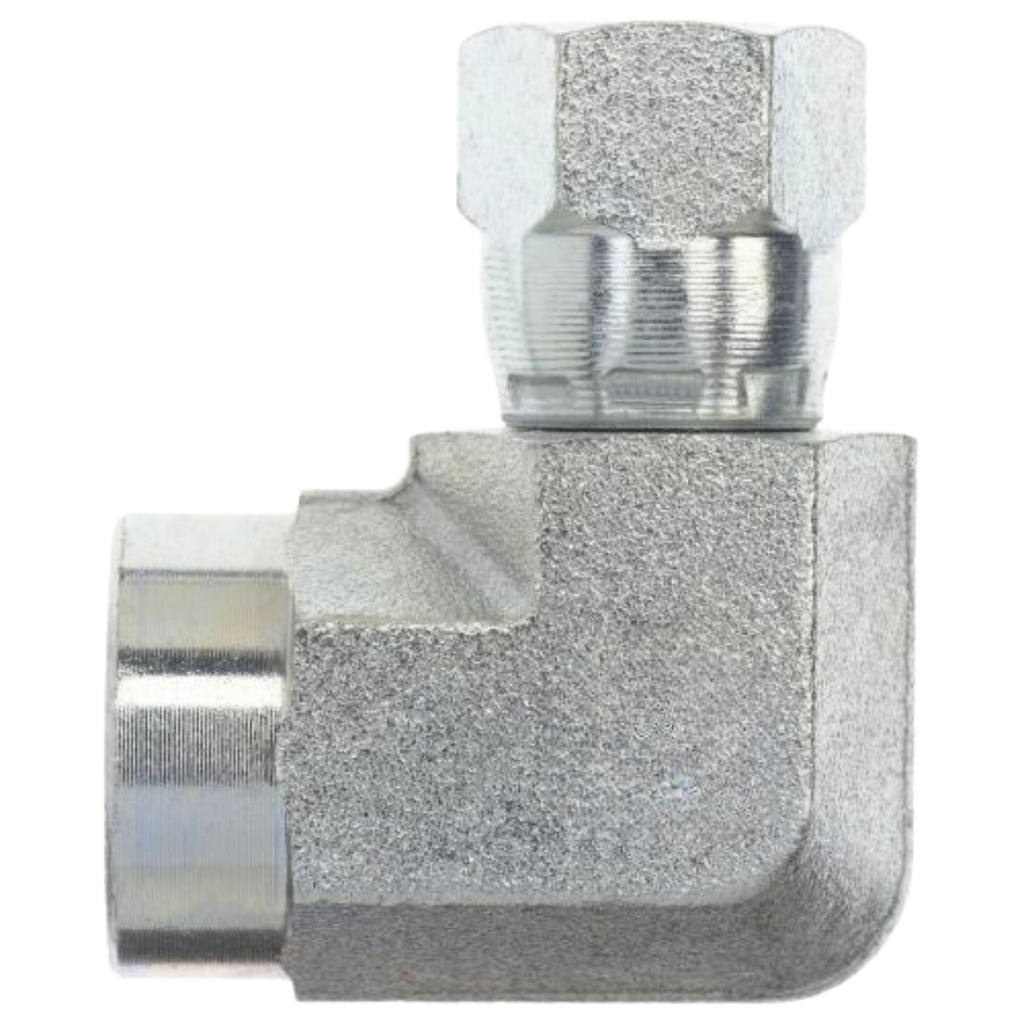

Description
The Series 6503-SS 90-Degree Female NPT x Female JIC Swivel adapters are high-performance stainless steel fittings designed to provide secure, leak-free connections in hydraulic systems. These adapters feature a 90-degree angle, making them ideal for routing hoses and pipes efficiently in tight or confined spaces. One end is equipped with a female NPT (National Pipe Tapered) thread, which creates a leak-tight seal by deforming the tapered threads, while the other end features a female JIC (Joint Industry Council) connection with a 37° tapered seat, ensuring a reliable, leak-proof seal. The swivel feature provides flexibility during installation, allowing the adapter to be easily adjusted and positioned. Made from durable stainless steel, the Series 6503-SS offers superior corrosion resistance, strength, and long-lasting performance, making it perfect for high-pressure fluid power systems and industrial applications that require reliable, flexible, and durable connections in demanding environments.
