Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | 90-Degree |
| Pressure Rating | 5000 |
| Series | 6501-FG |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 1/2-14 (-08) |
| Side 1 Type | NPT |
| Side 2 Gender | FEMALE |
| Side 2 Size | 9/16-18 (-06) |
| Side 2 Type | JIC |
Description

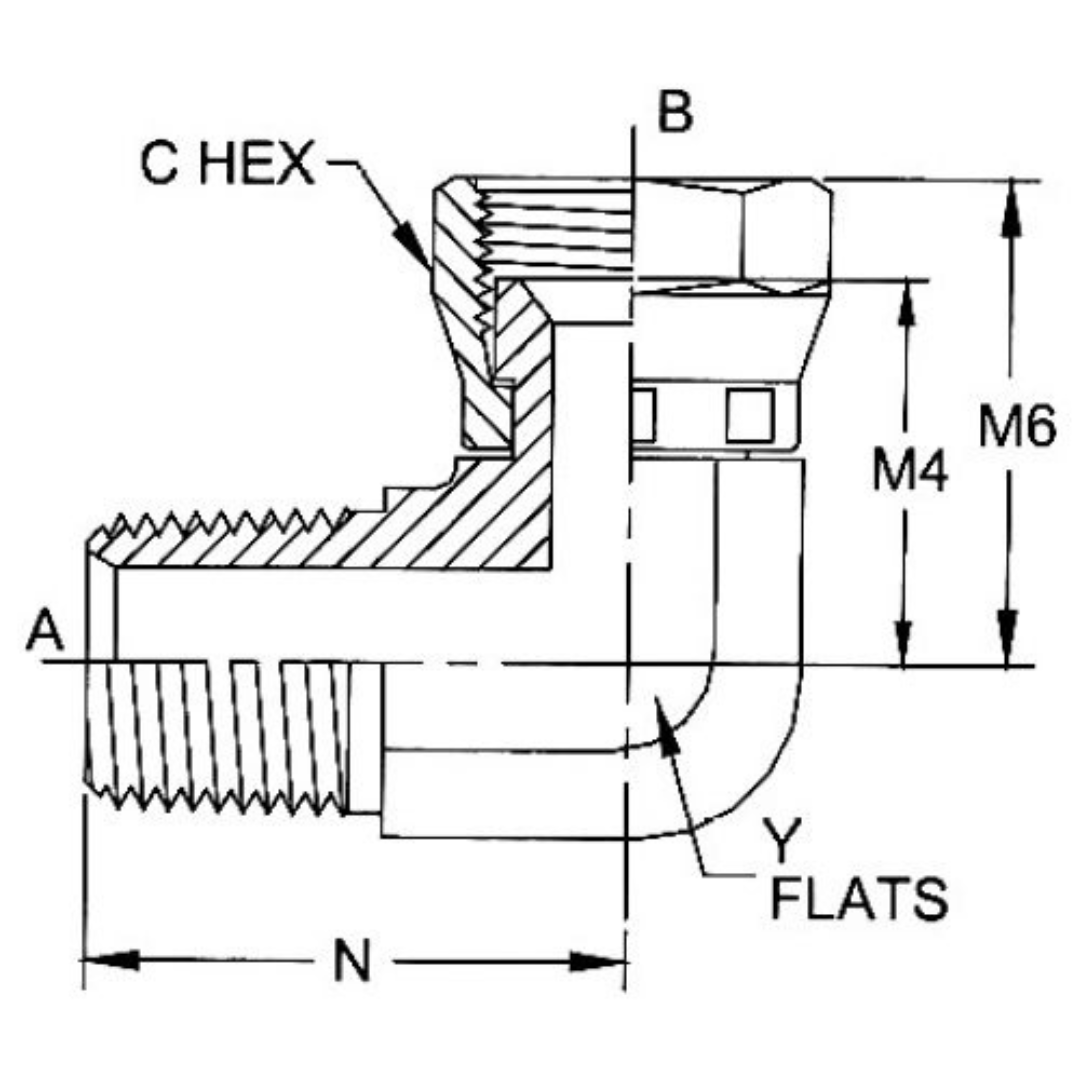

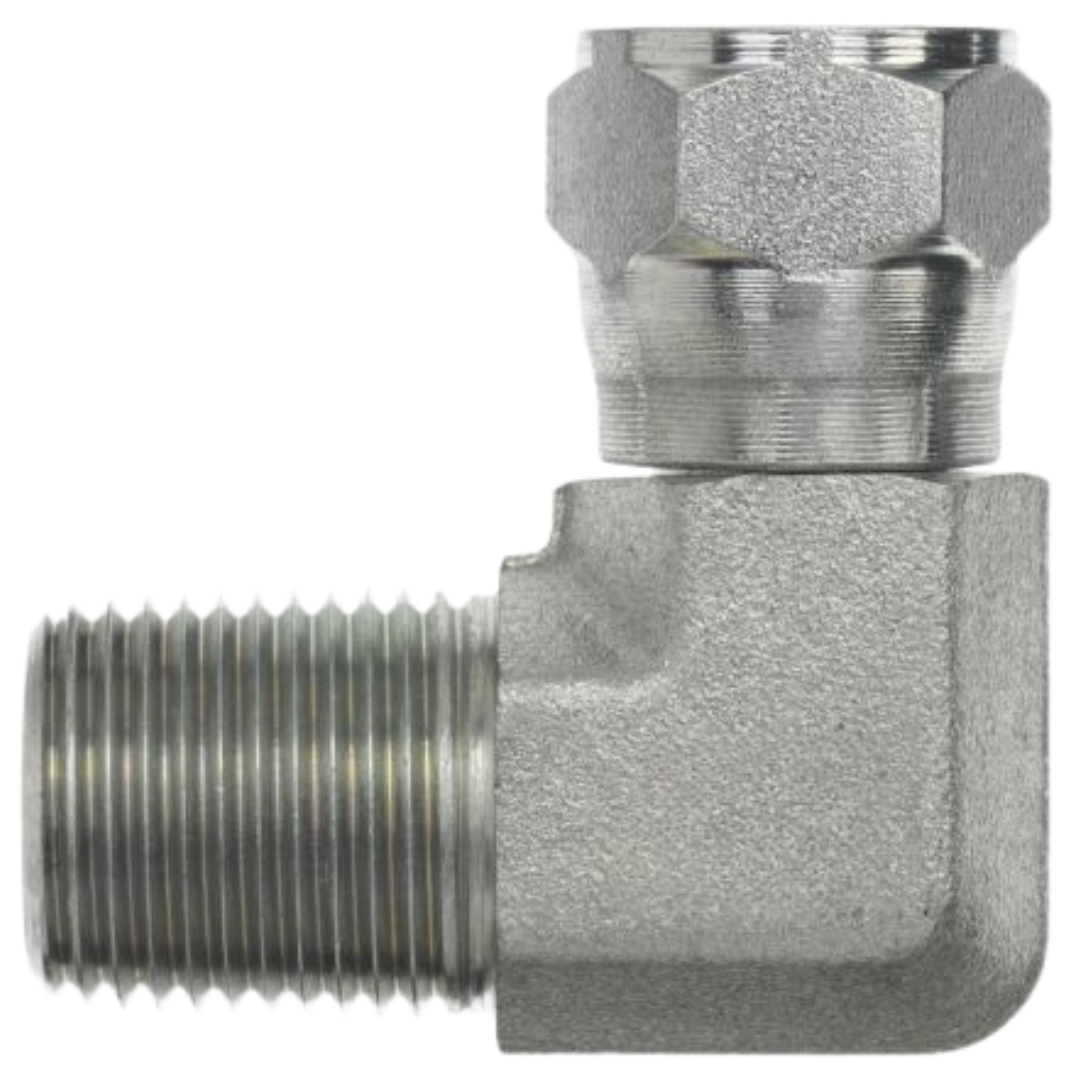

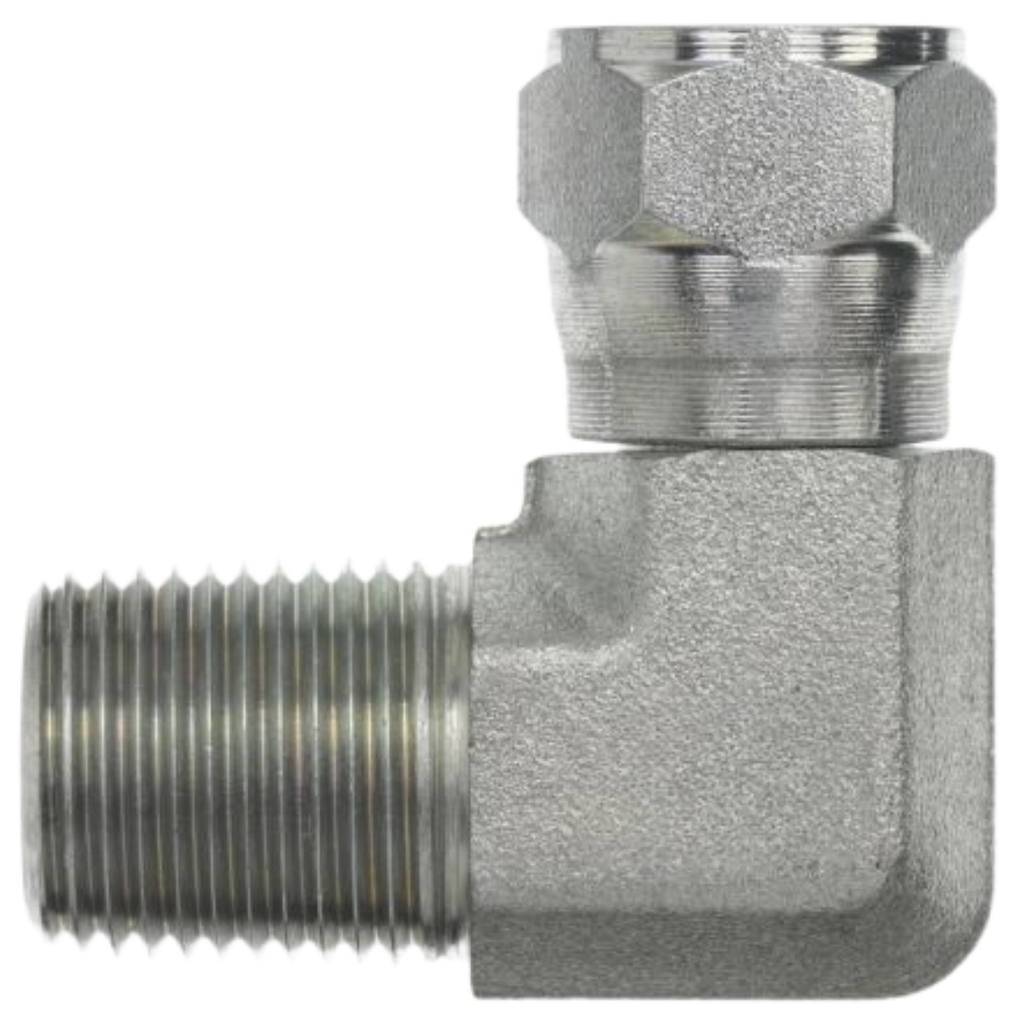

The Series 6501 90-Degree Angled Male NPT x Female JIC swivel adapters are durable carbon steel fittings designed to provide secure, leak-free connections in hydraulic systems. These adapters feature a 90-degree angle, making them ideal for efficient hose and pipe routing in tight or confined spaces. One end is equipped with a male NPT (National Pipe Tapered) thread, which relies on thread deformation to create a metal-to-metal seal, while the other end has a female JIC (Joint Industry Council) 37° flare connection, ensuring a reliable, leak-free seal. The swivel feature allows for easy adjustment during installation, making these adapters versatile for high-pressure fluid power systems. Made from robust carbon steel, the Series 6501 provides exceptional strength, durability, and corrosion resistance, offering long-lasting performance in demanding industrial applications.
