Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | Straight |
| Pressure Rating | 6000 |
| Series | 6464-L-O |

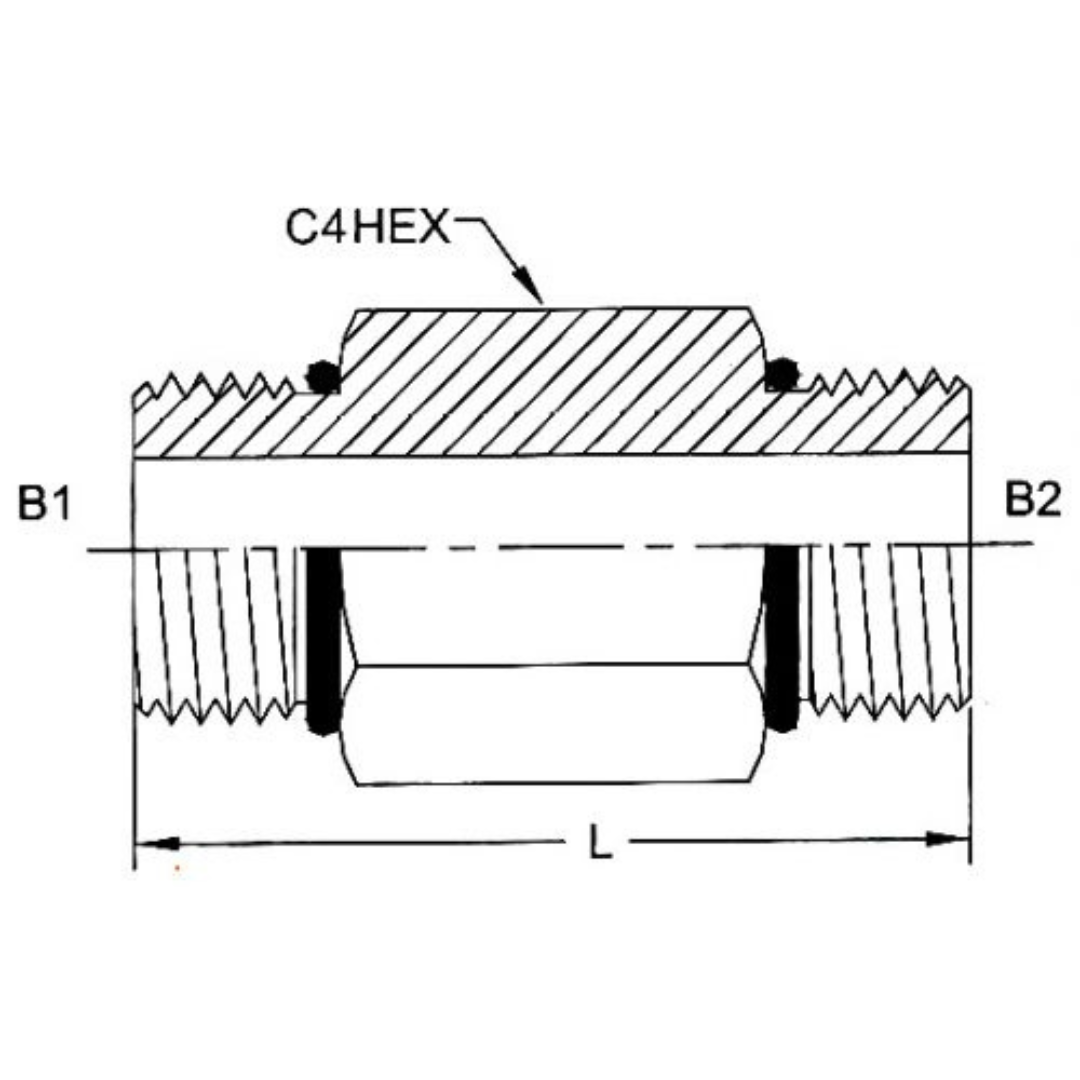

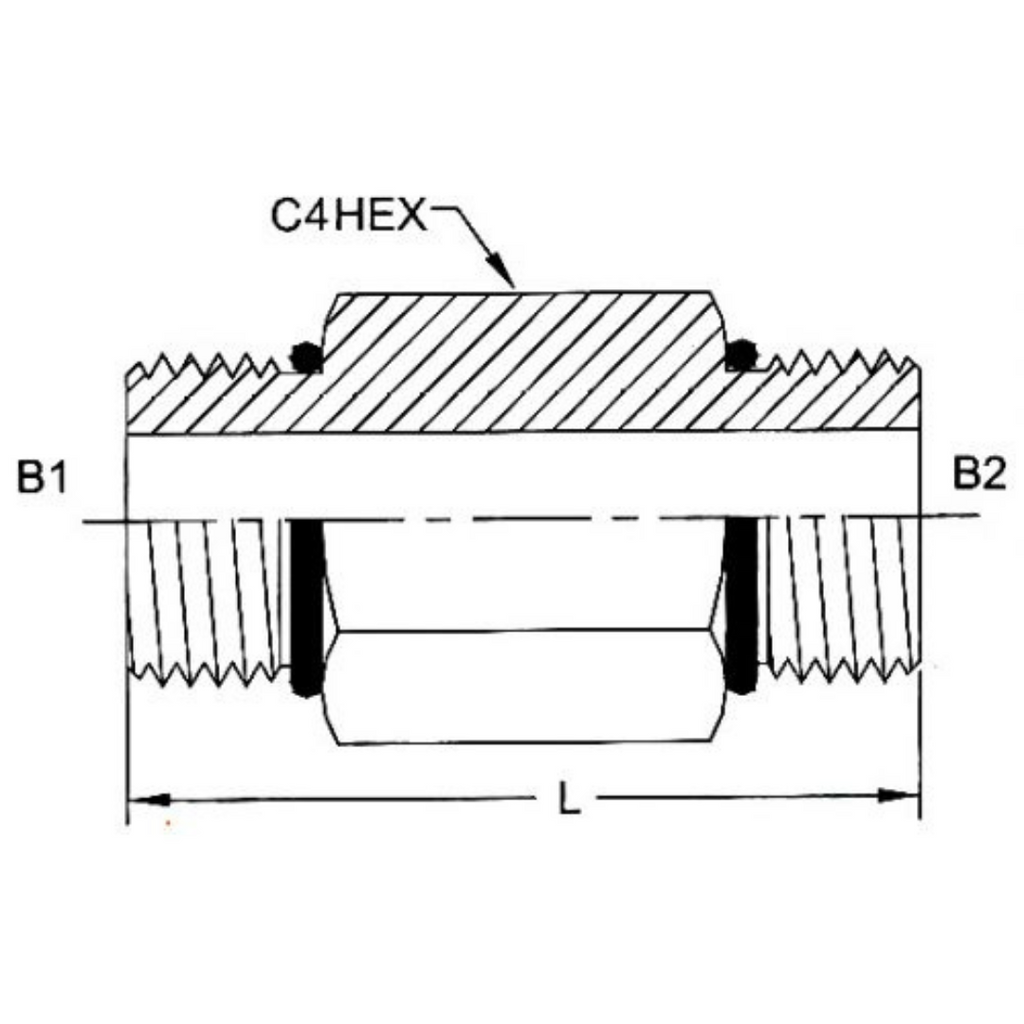

| Special Dims | L Length 1.76, C4 Hex 0.875, B1 Drill 0.391, B2 Drill 0.391, B1 SAE ORB 3/4-16, B2 ORB 3/4-16 |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 3/4-16 (-08) |
| Side 1 Type | ORB |
| Side 2 Gender | MALE |
| Side 2 Size | 3/4-16 (-08) |
| Side 2 Type | ORB |
Description

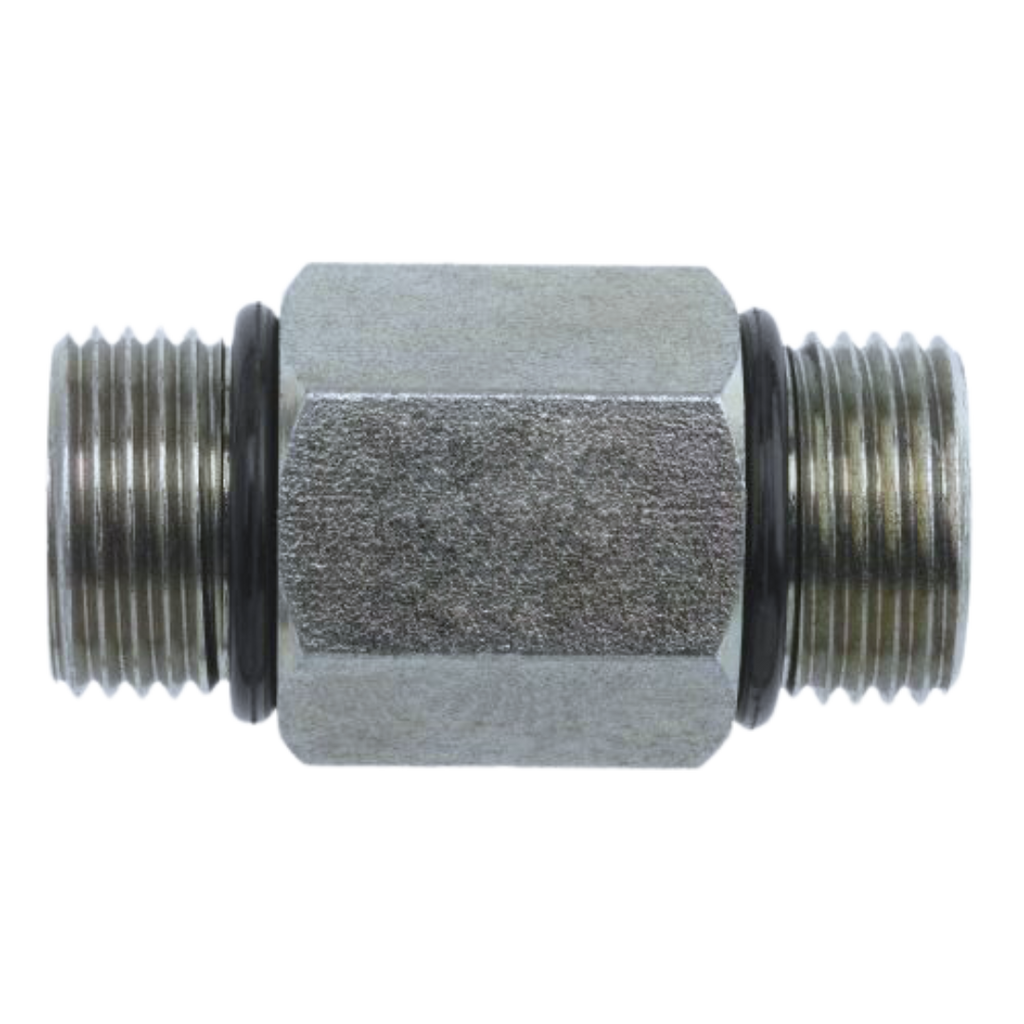

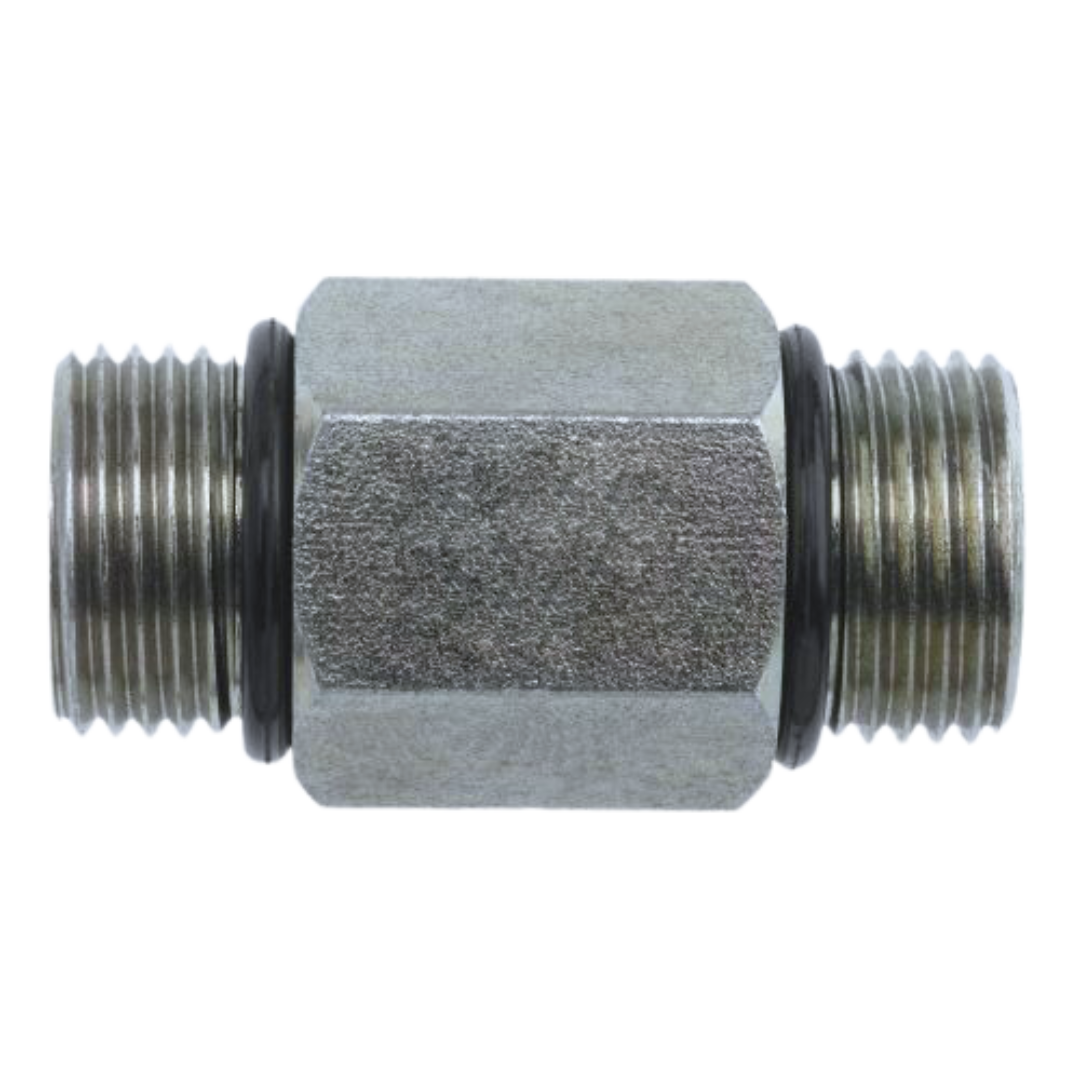

Series 6464-L-O Straight Long Male ORB x Male ORB hydraulic adapters, made from carbon steel, offer a longer L dimension compared to the standard 6464-O series, providing greater flexibility in certain hydraulic system applications. These ORB (SAE Straight Thread O-ring Boss) fittings feature a male connection with a straight UNF thread and an O-ring that ensures a leak-tight seal when compressed into the chamfer of the mating female port. The female port has a straight thread with a precision-machined surface for accurate alignment and a smooth seal. Designed for medium to high-pressure hydraulic systems, these adapters are commonly made from carbon, nickel-plated carbon, or stainless steel, and use Buna-N or Viton 90 Durometer O-rings. Endorsed by the NFPA, they are ideal for preventing leaks and ensuring safe, reliable performance in fluid power systems.
