Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | Straight |
| Series | 6464-O |

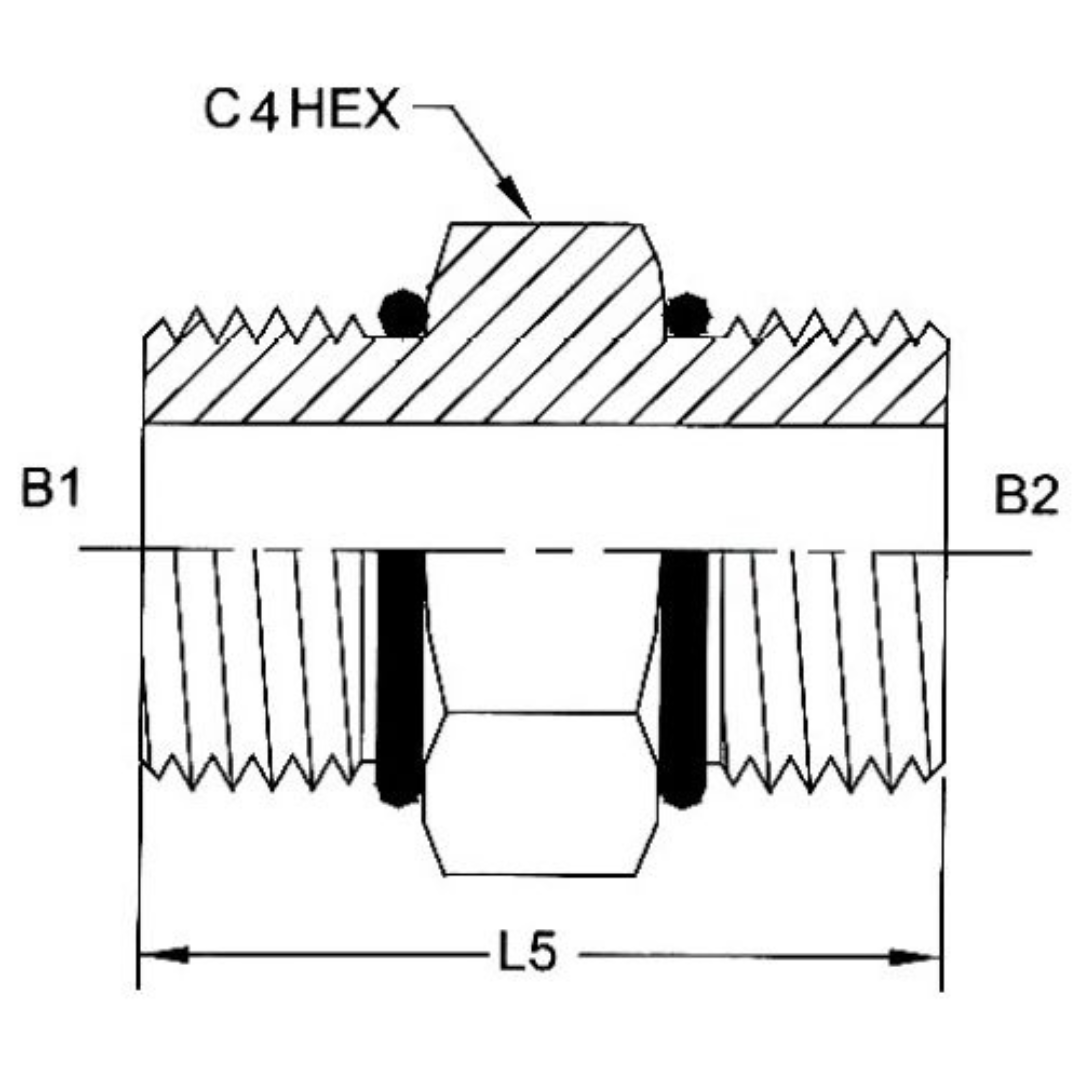

| Special Dims | L5 Length 1.34, C4 Hex 1.000, B1 Drill 0.484, B2 Drill 0.391, B1 SAE ORB 7/8-14, B2 ORB 3/4-16 |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 7/8-14 (-10) |
| Side 1 Type | ORB |
| Side 2 Gender | MALE |
| Side 2 Size | 3/4-16 (-08) |
| Side 2 Type | ORB |
Description

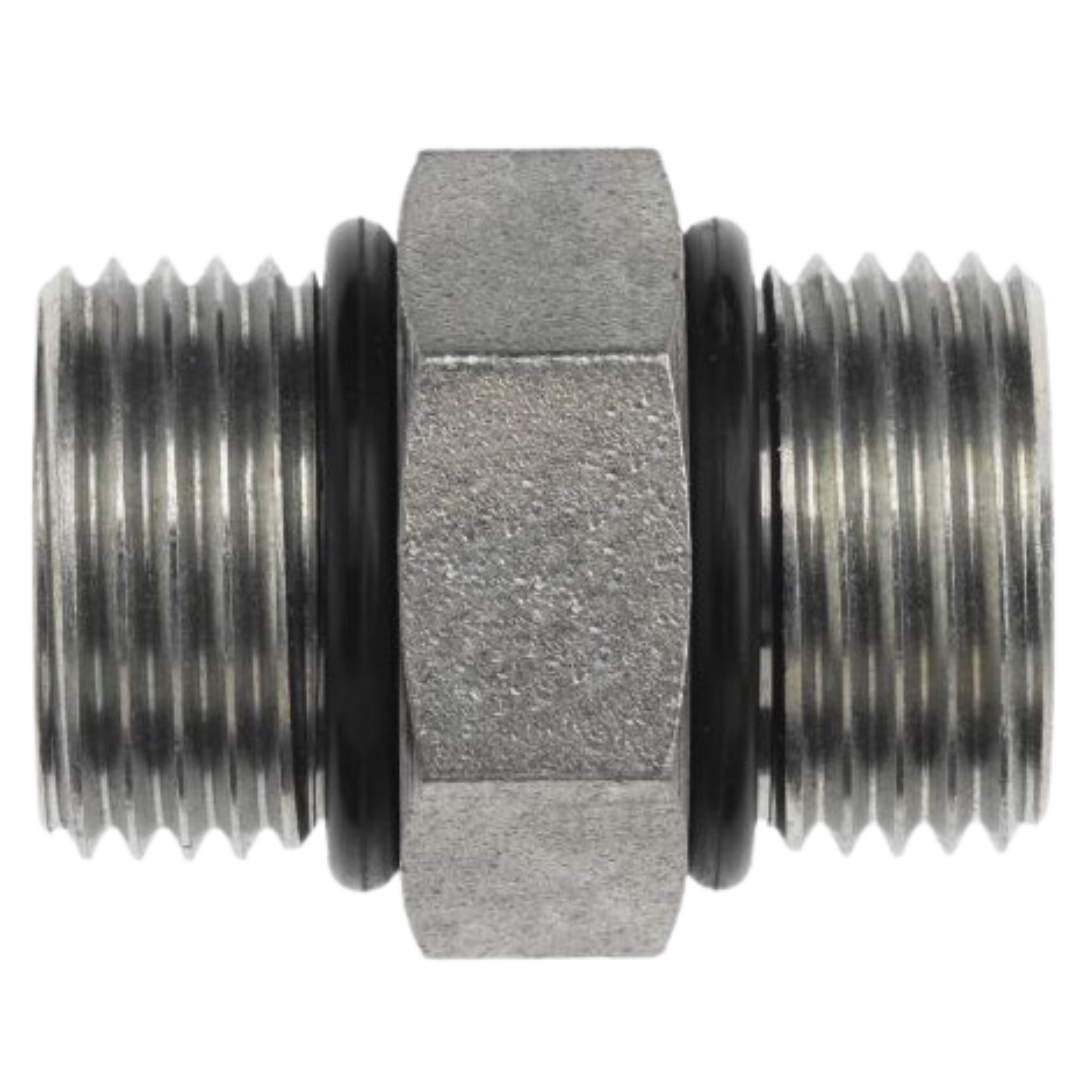

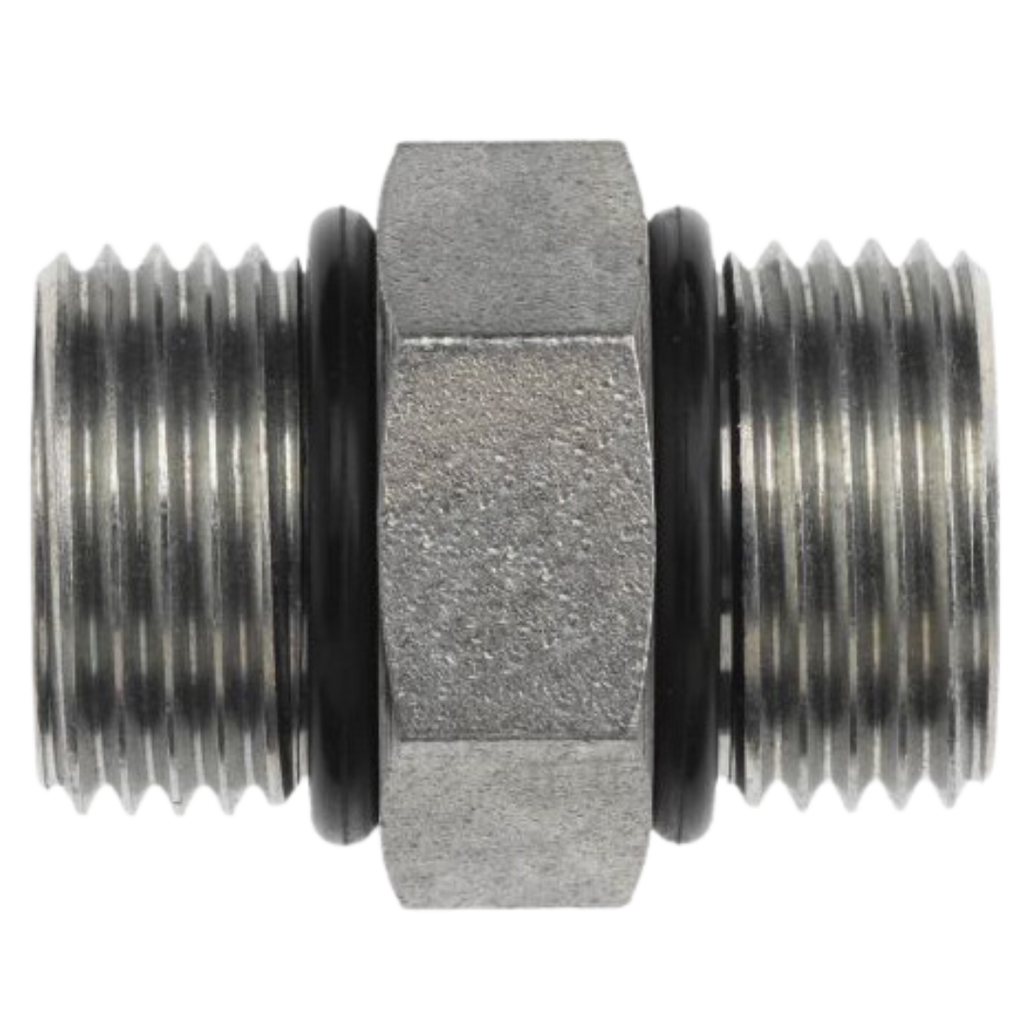

Series 6464-O Straight Male ORB x Male ORB hydraulic adapters provide secure, leak-free connections for medium and high-pressure hydraulic systems. ORB (SAE Straight Thread O-ring Boss) fittings are designed with a male connection featuring a straight UNF thread and an O-ring that creates a tight seal when compressed into the chamfer of the mating port. The female port has a straight thread with a precisely machined surface, ensuring a smooth, flat surface for accurate alignment. Made from durable carbon steel, these adapters commonly use Buna-N or Viton 90 Durometer O-rings for elastomeric sealing. Recommended by the NFPS, they prevent leaks and ensure optimal performance in fluid power systems.
