Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Stainless Steel |
| Shape | Straight |
| Series | 6425 |

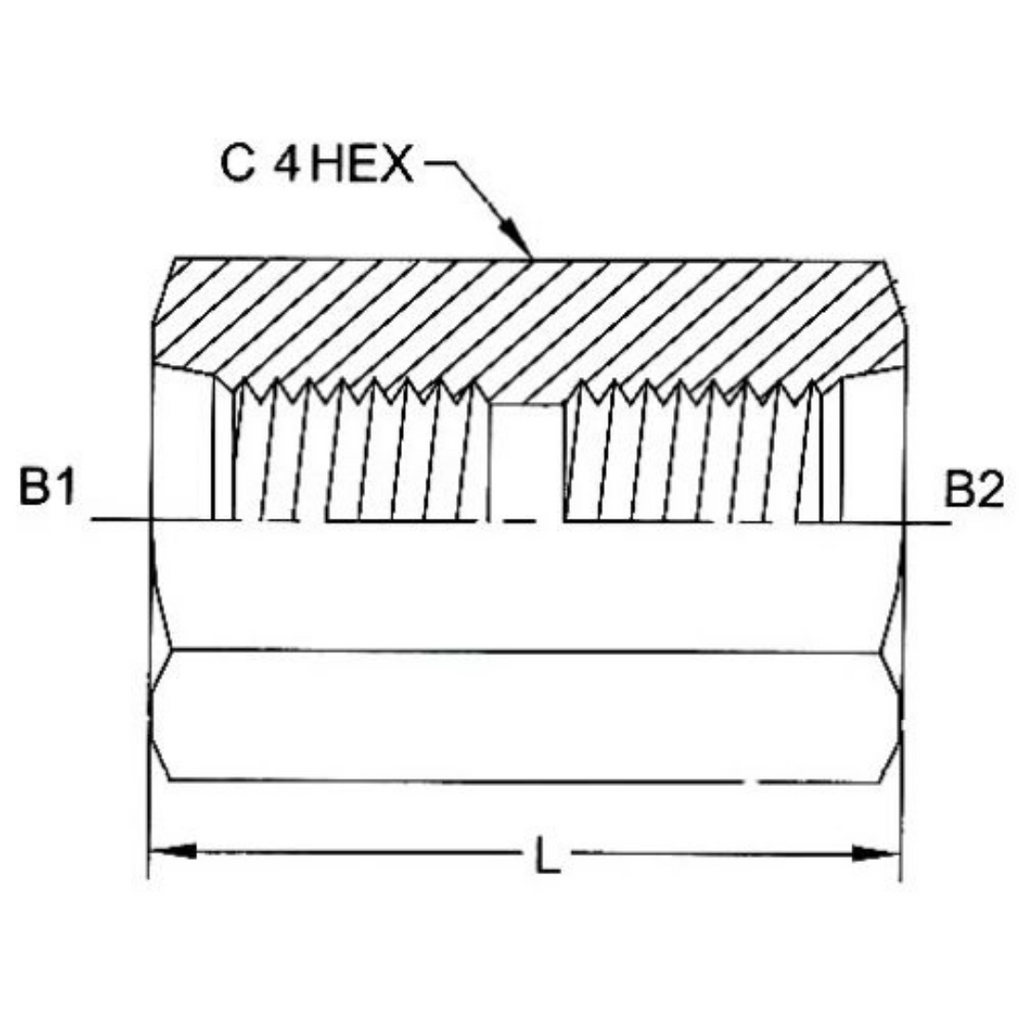

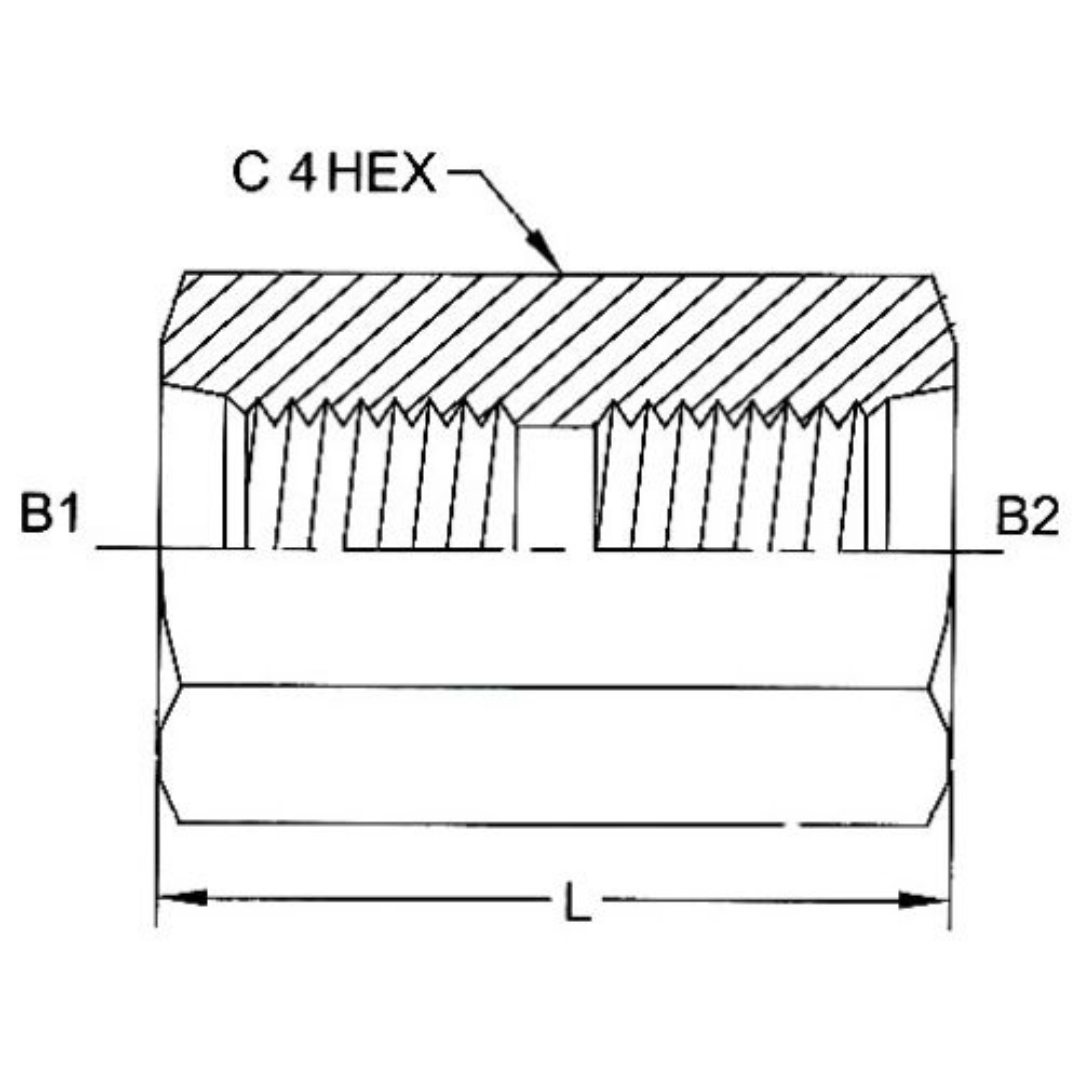

| Special Dims | L Length 1.420, C4 Hex 1.000, B1 SAE ORB 3/4-16, B2 ORB 3/4-16 |
| Country of Manufacture | China |
| Side 1 Gender | FEMALE |
| Side 1 Size | 3/4-16 (-08) |
| Side 1 Type | ORB |
| Side 2 Gender | FEMALE |
| Side 2 Size | 3/4-16 (-08) |
| Side 2 Type | ORB |
Description
The Series 6425-SS Straight Female SAE ORB x Female SAE ORB adapters, made from high-quality stainless steel, are precision-engineered to provide secure, leak-free connections in medium and high-pressure hydraulic systems. These adapters utilize SAE J1926 Straight Thread O-Ring Boss (ORB) connections, which are widely recommended by the National Fire Protection Association (NFPA) for their leak prevention properties. The male side features a straight thread with an O-ring, while the female side has a machined surface and chamfer where the O-ring is seated. When mated, the O-ring is compressed into the chamfer, ensuring a strong, reliable mechanical seal. Constructed from durable stainless steel, these adapters offer optimal performance, durability, and corrosion resistance, making them ideal for industrial applications that require dependable and long-lasting fluid connections.
