Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | Straight |
| Pressure Rating | 3000 |
| Series | 6401-O |

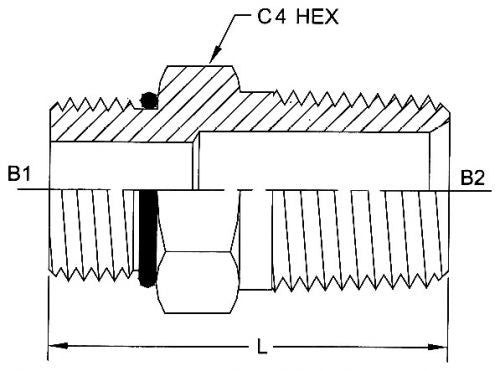

| Special Dims | L Length 2.25, C4 Hex 2.125, B1 Drill 1.312, B2 Drill 1.250, B2 NPTF 1-1/4-11-1/2, B1 SAE ORB 1-7/8-12 |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 1-7/8-12 (-24) |
| Side 1 Type | ORB |
| Side 2 Gender | MALE |
| Side 2 Size | 1-1/4-11-1/2 (-20) |
| Side 2 Type | NPT |
Description

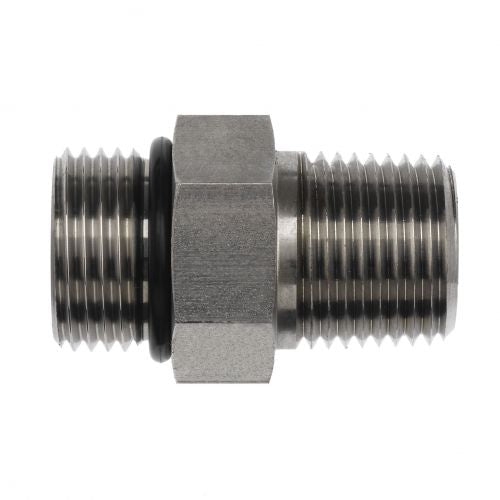

The Series 6401-O Straight Male ORB x Male NPT hydraulic adapters, made from durable carbon steel, are designed to provide secure and leak-proof connections in hydraulic systems. These adapters feature a male ORB (SAE Straight Thread O-ring Boss) connection on one end, which uses a straight UNF thread and an O-ring to create a leak-tight seal when compressed against a smooth, flat surface with a chamfer. This O-ring design, recommended by the National Fire Protection Association (NFPA) for medium and high-pressure systems, ensures reliable performance in hydraulic applications. On the other end, the male NPT (National Pipe Taper) connection features tapered threads that create a strong seal through thread deformation, ideal for fluid and gas transfer. The nominal pipe size is determined by measuring the thread diameter and subtracting 1/4". While NPT connections are suited for single assembly applications, they are not recommended for frequent disassembly due to potential thread wear. These adapters are perfect for professionals seeking dependable, high-quality hydraulic solutions in various applications.
