Product Details
| Usually Ships Within | 3-5 Days |
|---|---|
| Factory Location | Twinsburg, Ohio or Houston, Texas |
| Material | Steel |
| Side 1 Gender | MALE |
| Side 1 Size | 9/16-18 (-04) |
| Side 1 Type | ORFS |
| Side 2 Gender | MALE |
| Side 2 Size | 9/16-18 (-04) |
| Side 2 Type | ORFS |
| Side 3 Gender | MALE |
| Side 3 Size | M10 X 1.0 (10mm) |
| Side 3 Type | METRIC |
Description

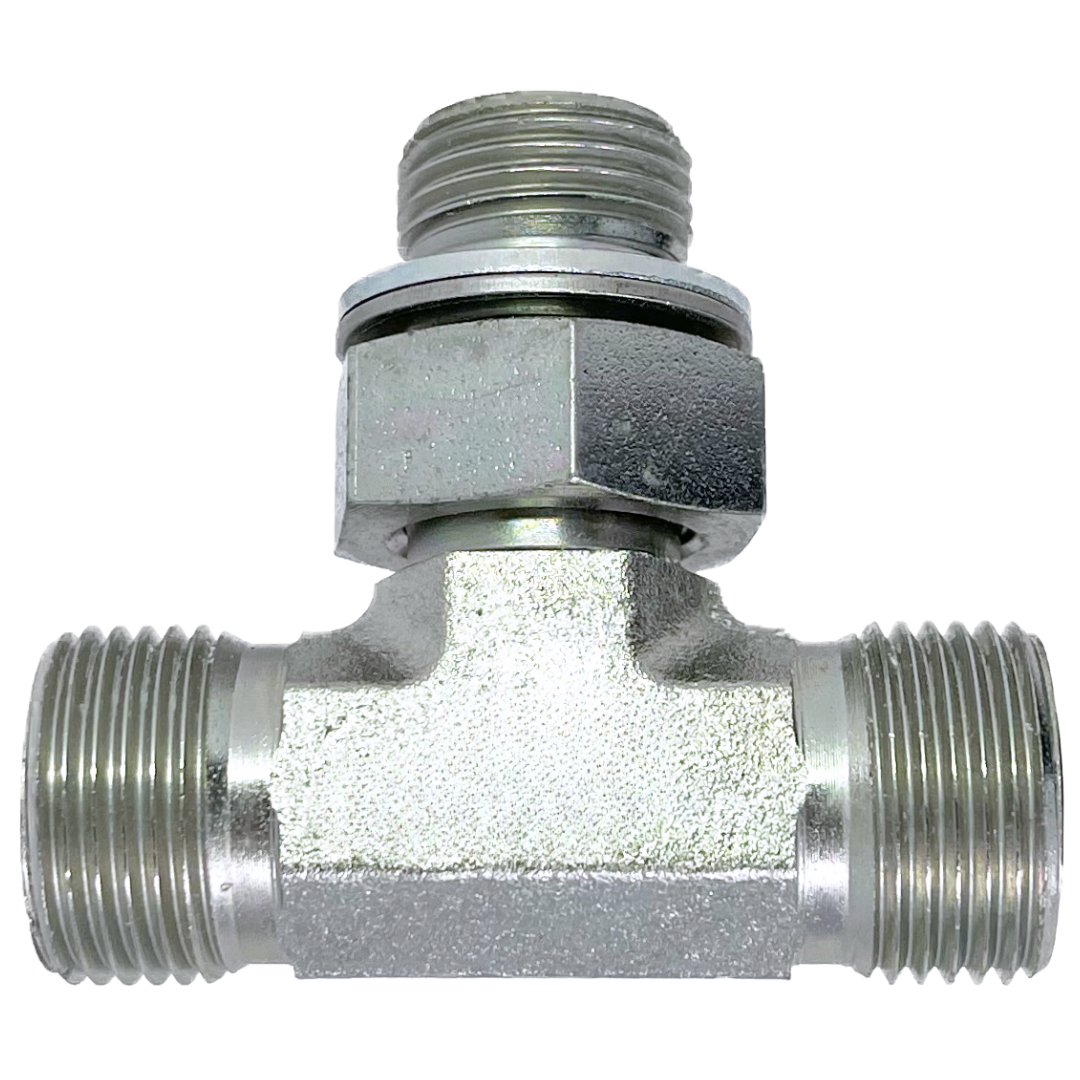

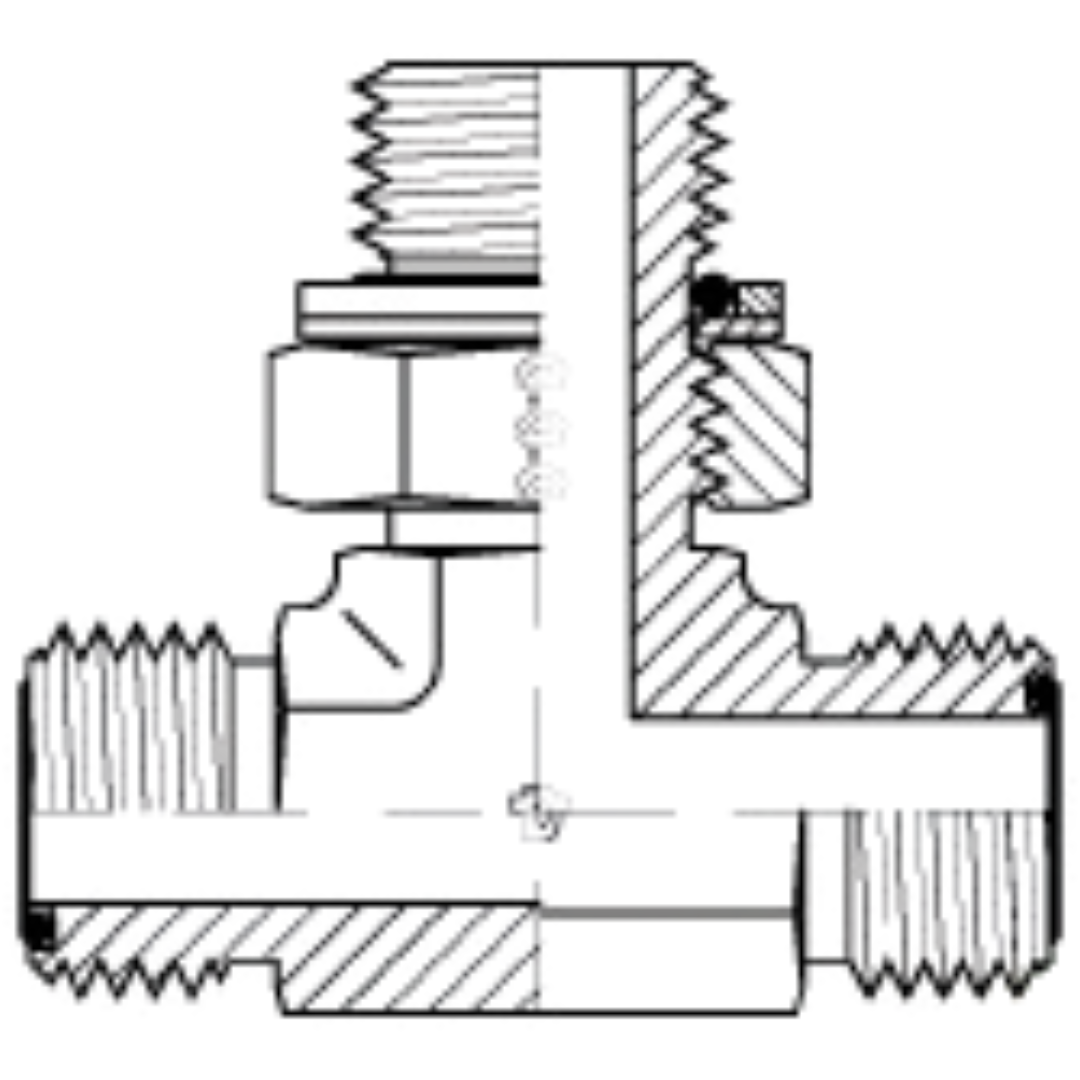

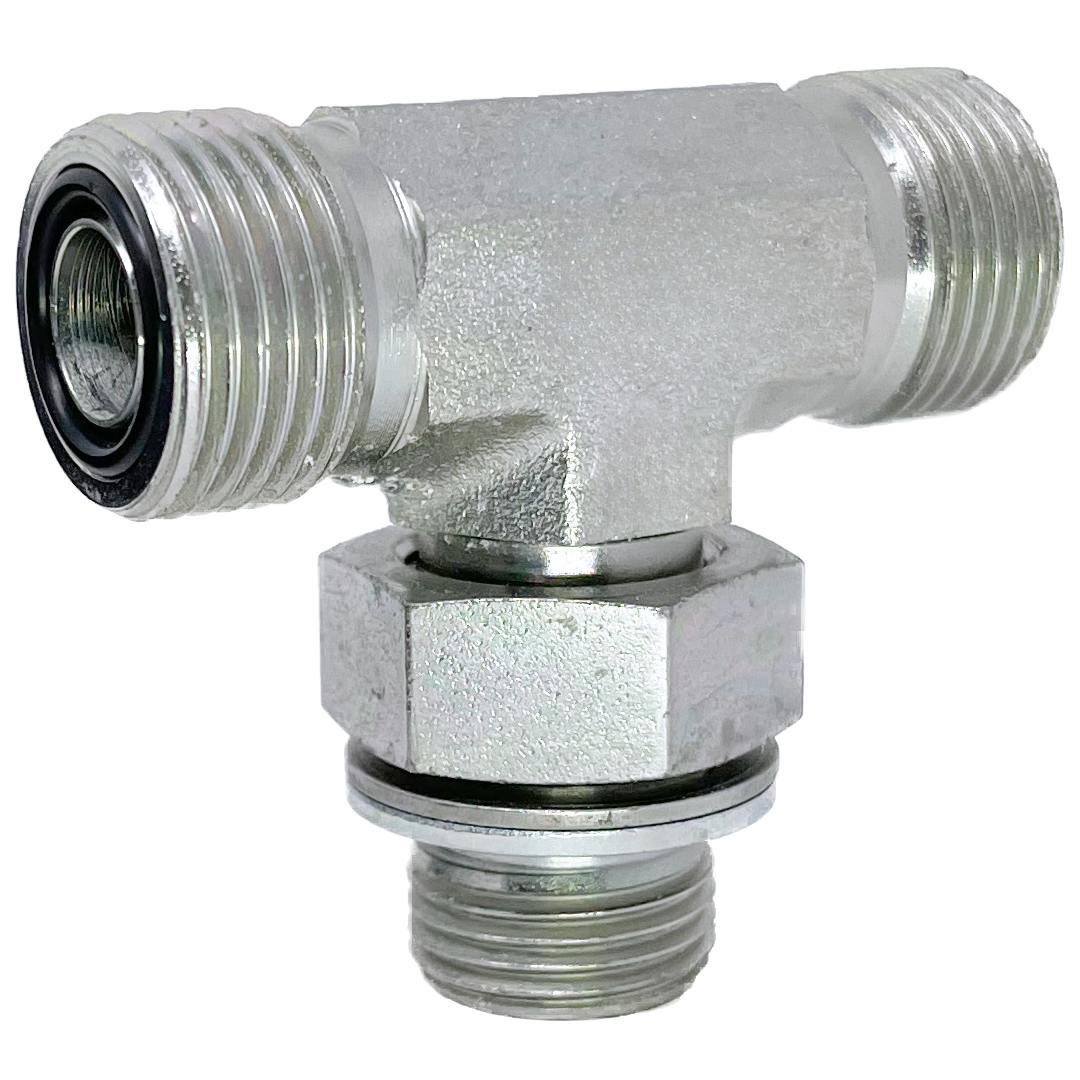

The Series 6169 Branch Tee Male ORFS x Male ORFS x Male Adjustable Metric adapters are durable carbon steel fittings designed to provide secure and efficient fluid connections in hydraulic and fluid power systems. These branch tee adapters feature a three-way design, with two male ORFS (O-Ring Face Seal) connections and one male adjustable metric connection. The male ORFS connections use O-rings to create a leak-proof seal by compressing against the flat face of the female fitting, while the male adjustable metric connection offers precise adjustment for a reliable, leak-free seal. The ORB and metric connections are ideal for high-pressure applications, ensuring excellent leak prevention. Made from carbon steel, the Series 6169 adapters are built to withstand harsh environments, offering outstanding strength, corrosion resistance, and long-lasting performance. These adapters provide a dependable solution for fluid transfer, ensuring efficient routing in demanding industrial applications.
