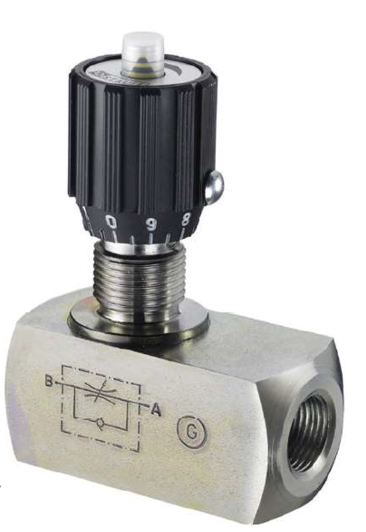

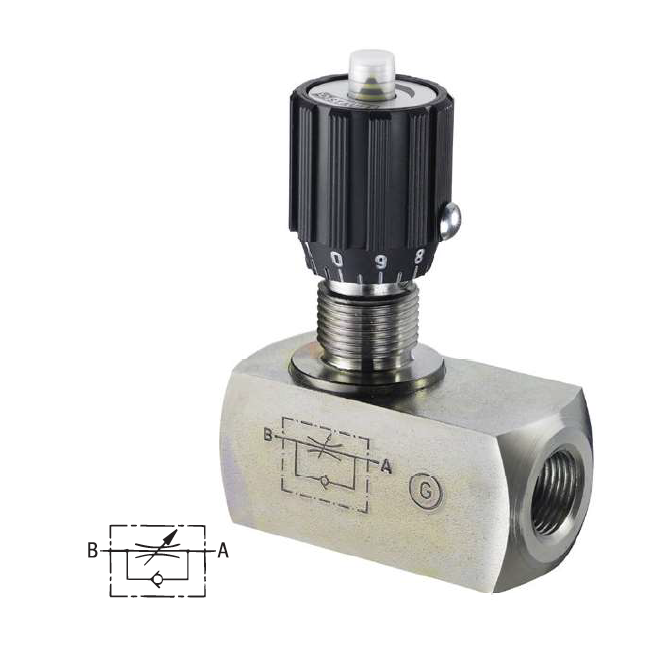

DRV-08-V-U-PM : Stauff Flow Control Valve, #4 SAE (1/4"), Carbon Steel, 5000psi, with Panel Mount Nut
DRV-08-V-U-PM : Stauff Flow Control Valve, #4 SAE (1/4"), Carbon Steel, 5000psi, with Panel Mount Nut
Roll over image to zoom in Click on image to zoom
DRV-08-V-U-PM : Stauff Flow Control Valve, #4 SAE (1/4"), Carbon Steel, 5000psi, with Panel Mount NutDRV-08-V-U-PM : Stauff Flow Control Valve, #4 SAE (1/4"), Carbon Steel, 5000psi, with Panel Mount Nut

DRV-08-V-U-PM : Stauff Flow Control Valve, #4 SAE (1/4"), Carbon Steel, 5000psi, with Panel Mount Nut

Save $9.03
StauffSKU: 6100079057
4-6 Weeks
Price:
$87.33 $96.36

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Canton, Michigan
Connection Size #4 SAE (1/4")
Material Carbon Steel
Panel Mount Option With Panel Mount Nut
Adjustment Type Knob Adjustment
Flow Rating N/A
Pressure Rating 5000
Height 3.29
Length 2.17
Width 0.98
Weight 0.66

Description

Stauff's DRV flow control valve is designed to throttle and shut-off the flow of liquid media from A to B, and allowing free-flow in the reverse direction.
