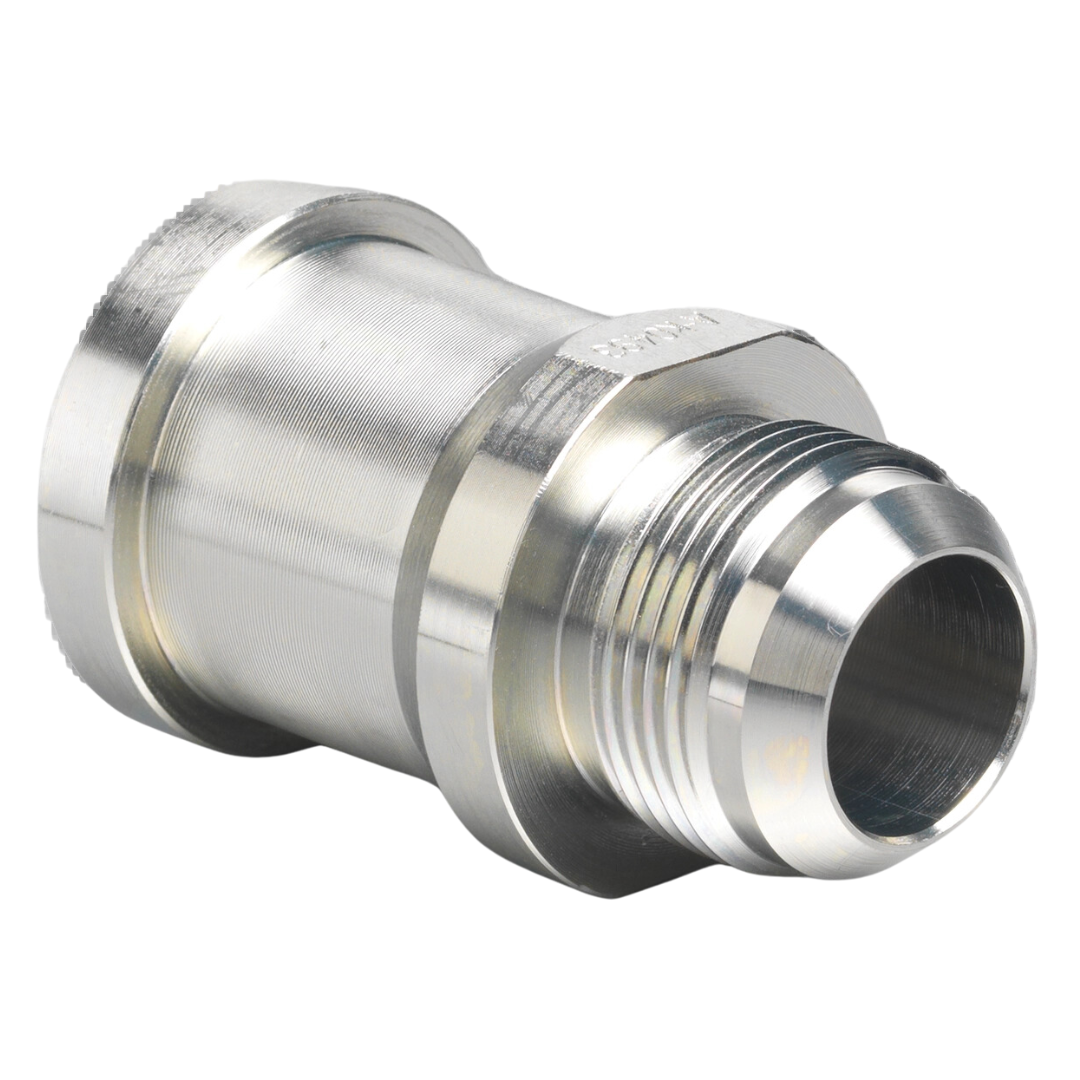

600-32-32 : AFP Split Flange Head Adapters, Steel, Straight, 2" Male JIC Side 1, 2" C62 Side 2, 6000psi Rated
600-32-32 : AFP Split Flange Head Adapters, Steel, Straight, 2" Male JIC Side 1, 2" C62 Side 2, 6000psi Rated
Roll over image to zoom in Click on image to zoom
600-32-32 : AFP Split Flange Head Adapters, Steel, Straight, 2" Male JIC Side 1, 2" C62 Side 2, 6000psi Rated600-32-32 : AFP Split Flange Head Adapters, Steel, Straight, 2" Male JIC Side 1, 2" C62 Side 2, 6000psi Rated

600-32-32 : AFP Split Flange Head Adapters, Steel, Straight, 2" Male JIC Side 1, 2" C62 Side 2, 6000psi Rated

Save $17.36
Anchor Fluid PowerSKU: 600-32-32
5 Days
Price:
$61.99 $79.35

Product Details

Data Sheet Download Datasheet
Usually Ships Within 5 Days
Factory Location Cincinnati, Ohio and Houston, Texas
Material Carbon Steel
Flange Code Code 62
Flange Size 2"
Pressure Rating 6000
Sae Connector Flange Type Split Flange Adapter
Fitting Angle Straight
Adapter Notes 2 1/2-12
Country of Manufacture China
Height 3.125
Length 4.23
Width 3.125
Side 1 Gender Male
Side 1 Size 2"
Side 1 Type JIC

Description

Our Anchor Fluid Power Series 600 Code 62 x JIC hydraulic straight split flange heads are designed for high-pressure hydraulic systems up to 6000 psi. These flange heads feature a straight, smooth surface that fits with Code 62 split flanges and JIC fittings. They are used with two split flange halves, which are secured around the head to create a strong, leak-proof connection. This setup is ideal for connecting hydraulic pipes and components securely, ensuring a reliable and durable seal in demanding applications.
