5J664-201-US0A : Canfield Connectors, DIN (EN 175301-803-A) Electrical Connection, 6 foot Wire Length, 6-24V AC/DC 50/60Hz Opera

Canfield ConnectorsSKU: 5J664-201-US0A
Same Day
36

Price:
Sale price$14.59

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Location Youngstown, Ohio
Electrical Connector DIN (EN 175301-803-A)
Operating Voltage 6-24V AC/DC 50/60Hz
Compatible Coil P N Coils C19B-01200E1-4.9NA, C19B-02400E1-20.8NA, C22B-01200E1-4.41NA, C22B-02400E1-18.6NA
Country of Manufacture United States

Description

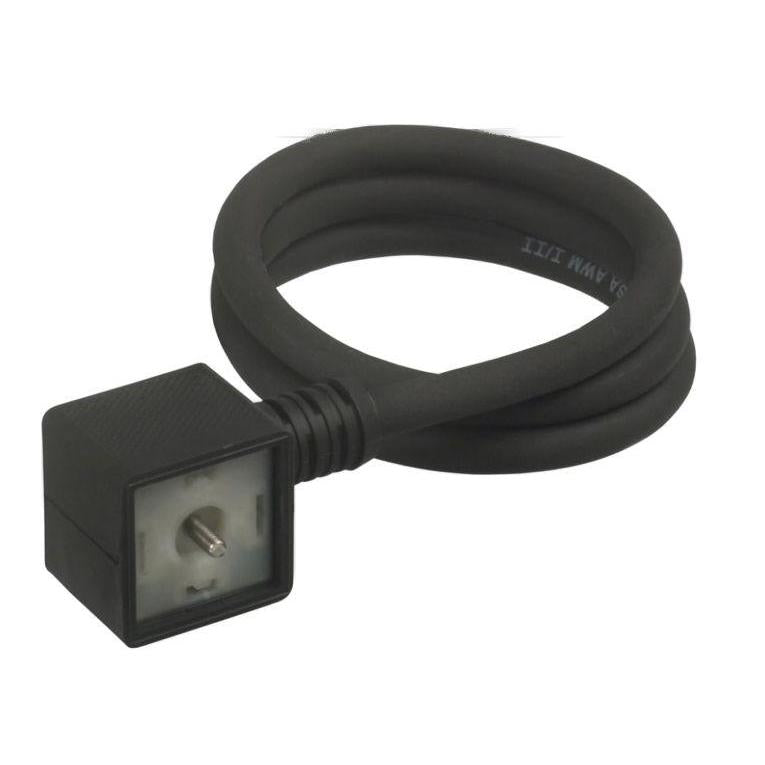

The Canfield Series 5J all-molded DIN solenoid valve connector, gasket, and cord assembly offers a completely molded design that is far better for environmental integrity than field wire versions. Made from rugged yet flexible polyurethane, the connector housing boasts high durability factors and application versatility. The low profile 90-degree interface and cord configuration allows for installation in many limited space applications. The integrated gasket design boasts an IP67-NEMA 6 rating and makes it impossible to lose the gasket. The 5J and 5F are the only molded valve connectors in the industry that feature a HARD USAGE cord as a standard option in any length required, bi-directional indicator lights, and load suppression (not intended for UL 1449). UL and CSA versions are available as well. Canfield offers any version of the 5J connector with special wires including high flex, media compatible wire, special use wire, high temperature wire on request.
