Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | 90-Degree |
| Series | 5702-FG |

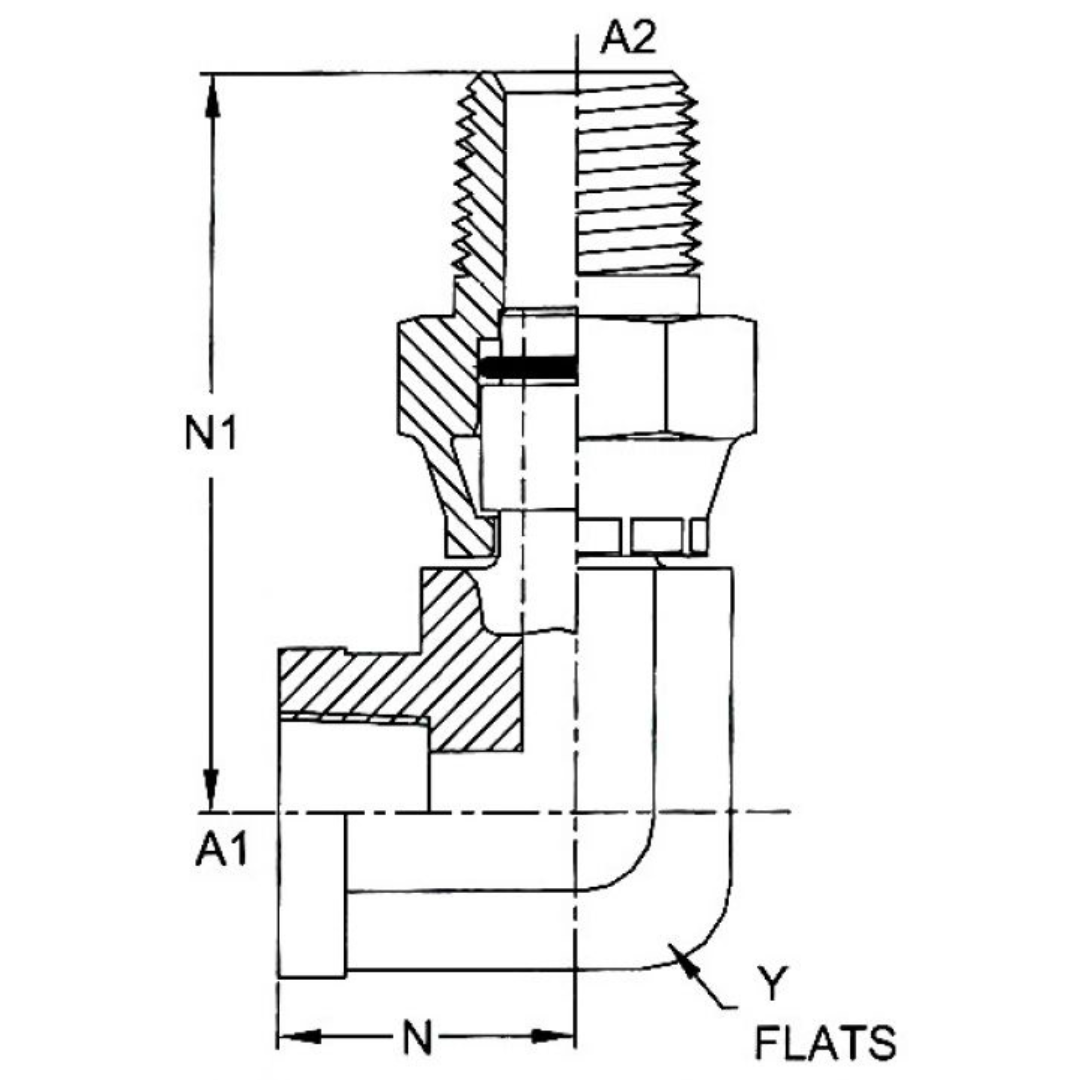

| Special Dims | Y Flats 0.875, A1 NPTF 3/8-18, A2 NPTF 3/8-18, N Length 1.02, N1 Length 1.70 |
| Country of Manufacture | China |
| Side 1 Gender | FEMALE |
| Side 1 Size | 3/8-18 (-06) |
| Side 1 Type | NPT |
| Side 2 Gender | MALE |
| Side 2 Size | 3/8-18 (-06) |
| Side 2 Type | NPT |
Description

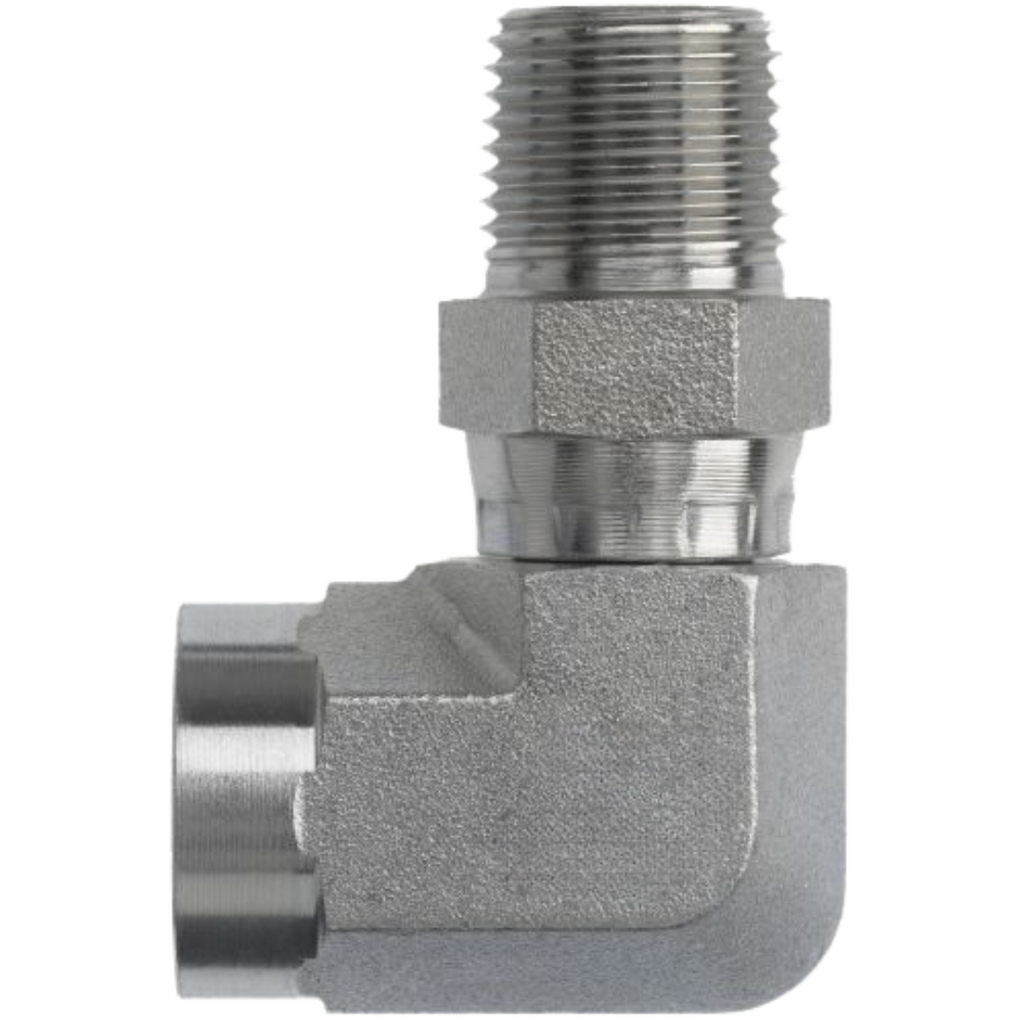

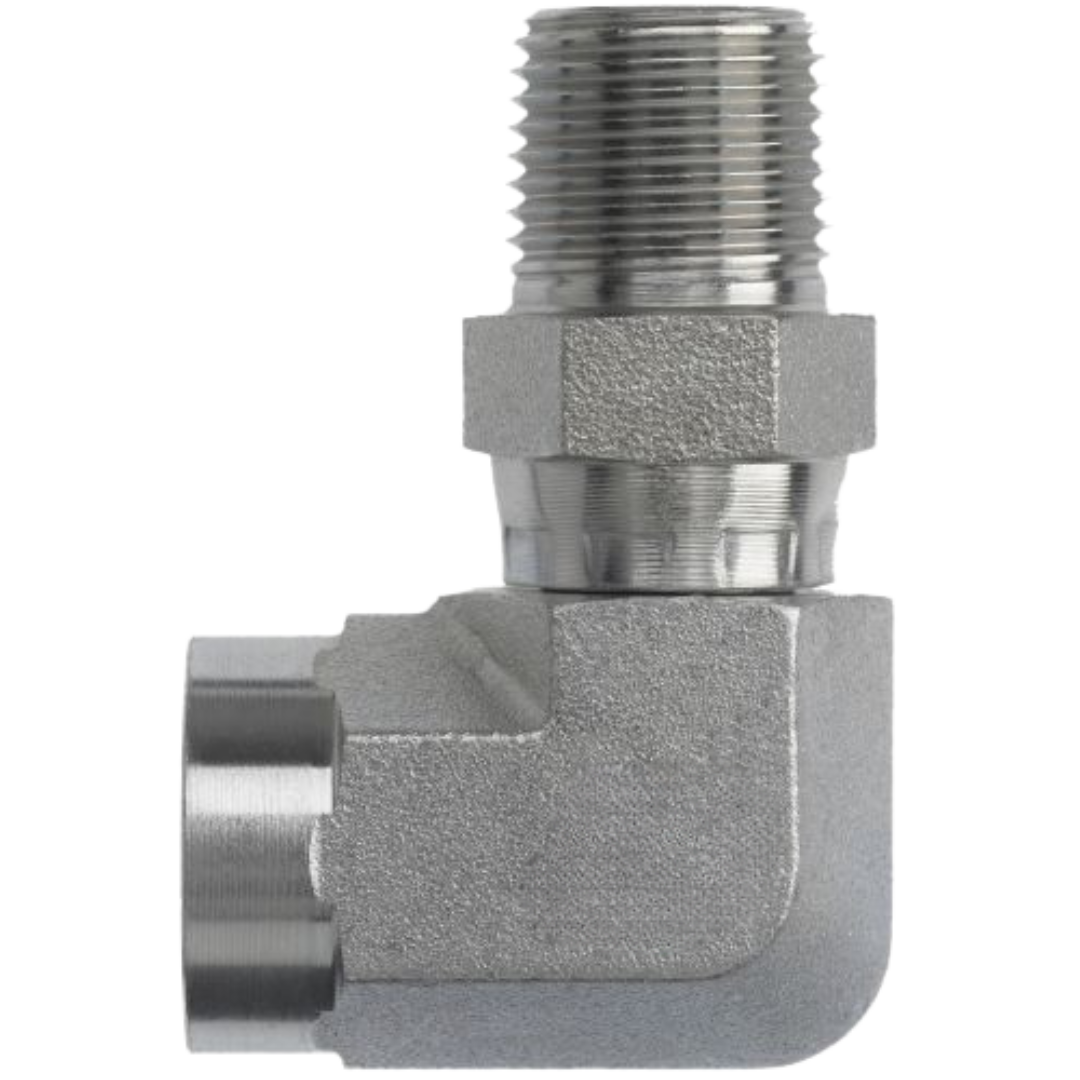

The Series 5702 90-Degree Angled Female NPTF x Male NPTF swivel adapters are high-quality carbon steel fittings designed for secure, leak-free connections in hydraulic systems. These adapters feature a 90-degree angle, allowing for efficient hose and pipe routing in tight or confined spaces. One end is equipped with a female NPTF (National Pipe Tapered Fuel) thread, while the other end features a male NPTF thread, both designed to create a reliable, leak-tight seal by deforming the tapered threads during installation. The swivel feature provides flexibility during installation, making these adapters perfect for systems where adjustment is needed. Made from durable carbon steel, the Series 5702 offers excellent strength, corrosion resistance, and long-lasting performance in high-pressure fluid transfer applications, providing reliable, efficient connections for industrial hydraulic systems.
