Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | 90-Degree |
| Series | 5701-FG |

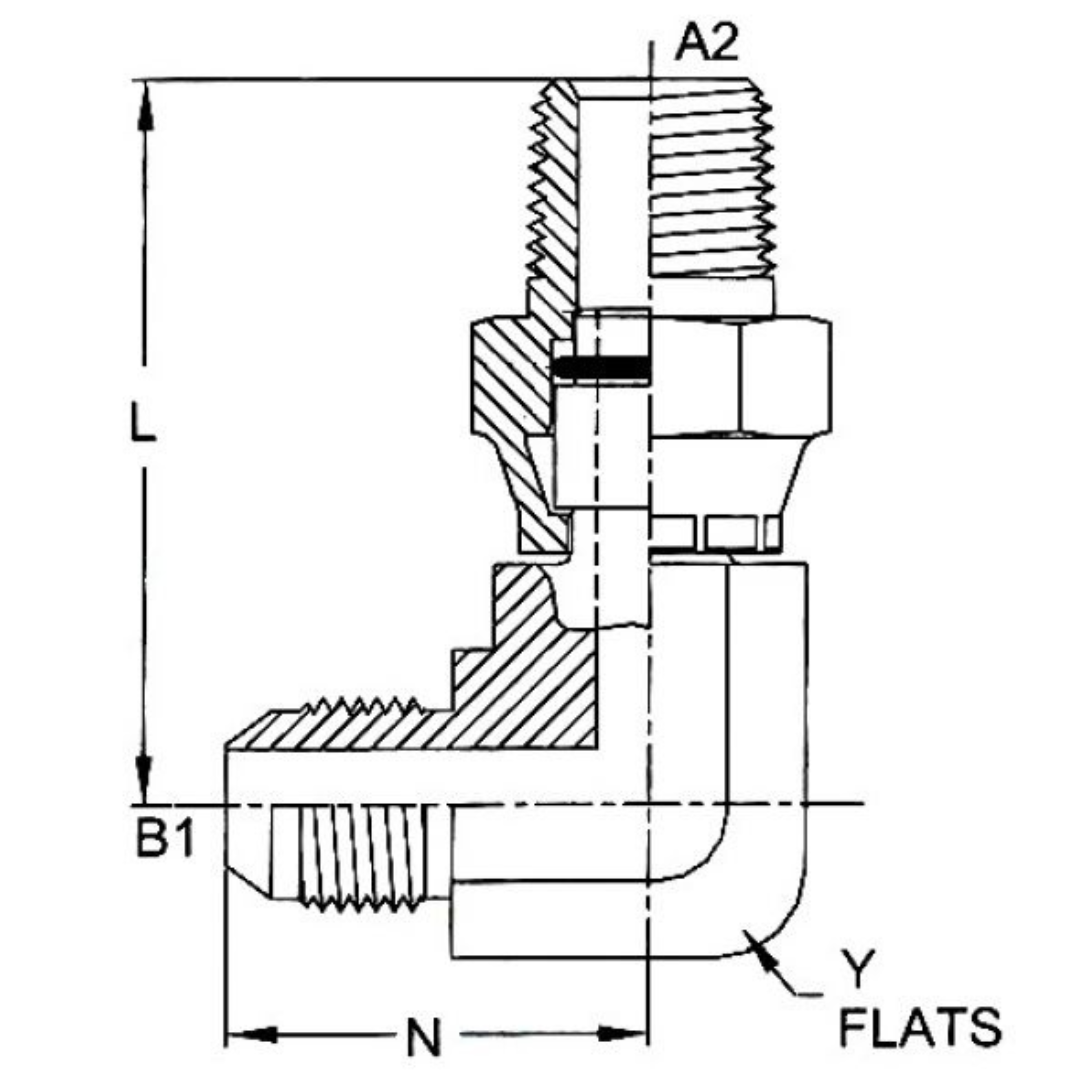

| Special Dims | L Length 1.960, Y Flats 0.875, B1 Drill 0.484, A2 NPTF 1/2-14, B1 SAE 37-Degree 7/8-14, N Length 1.450 |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 7/8-14 (-10) |
| Side 1 Type | JIC |
| Side 2 Gender | MALE |
| Side 2 Size | 1/2-14 (-08) |
| Side 2 Type | NPT |
Description

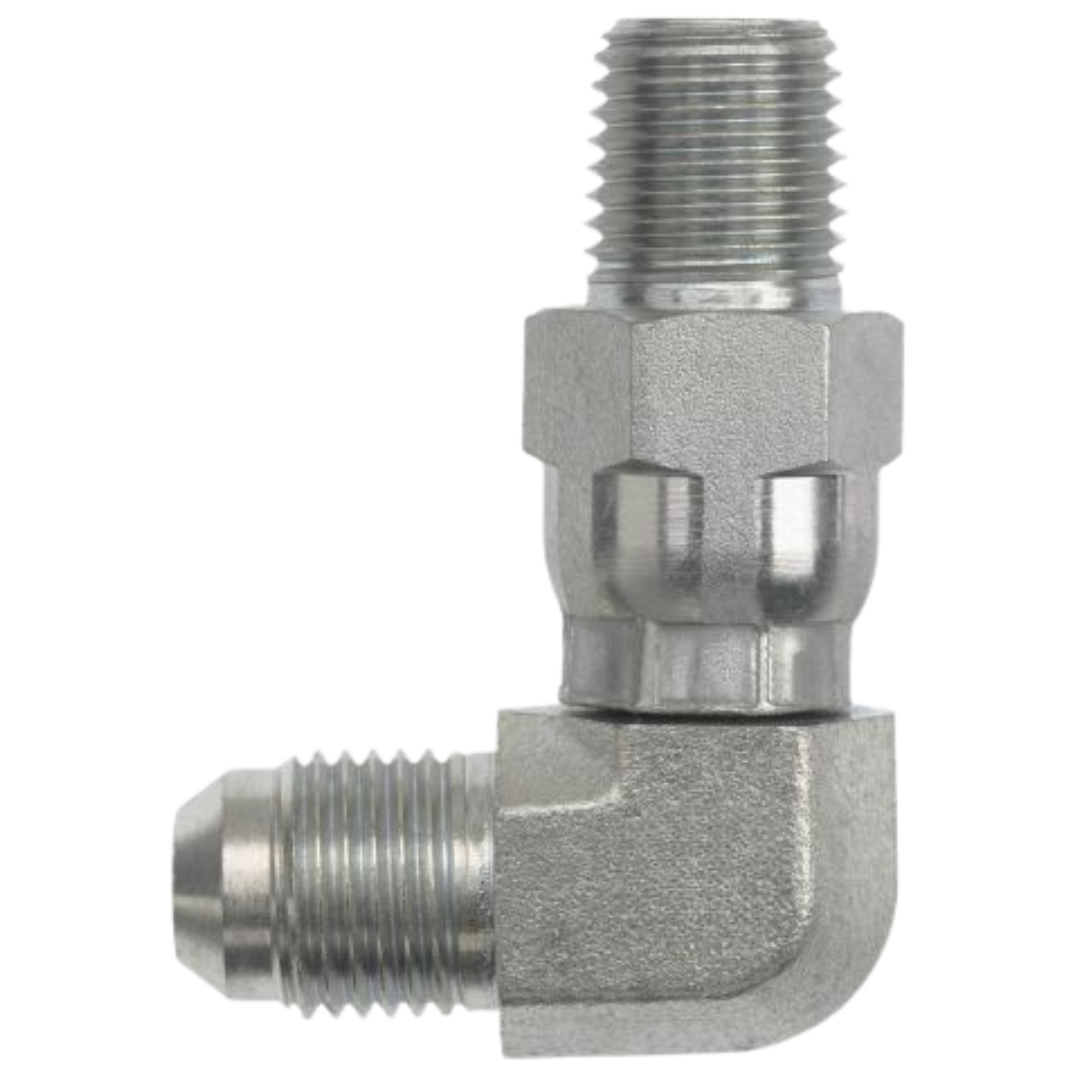

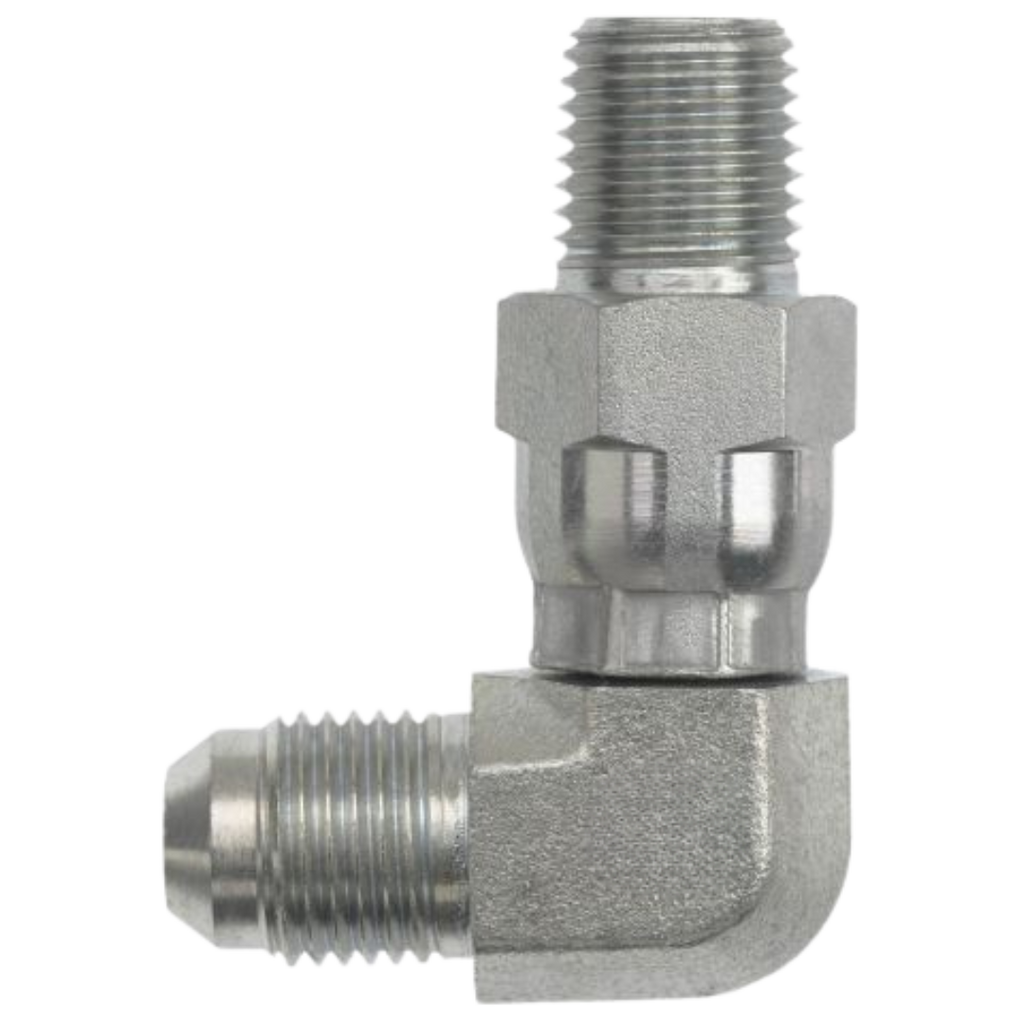

The Series 5701 90-Degree Angled Male JIC x Male NPTF swivel adapters are high-performance carbon steel fittings designed to provide secure, leak-free connections in hydraulic systems. Featuring a 90-degree angle, these adapters are ideal for efficiently routing hoses and pipes in tight or confined spaces. One end is equipped with a male JIC (Joint Industry Council) 37° flare connection, while the other end has a male NPTF (National Pipe Tapered Fuel) thread, ensuring a reliable, leak-tight seal through thread deformation. The swivel feature allows for flexible installation, making these adapters perfect for systems where precise alignment is required. Made from durable carbon steel, the Series 5701 offers exceptional strength, corrosion resistance, and long-lasting performance in high-pressure fluid power applications, making them a trusted choice for industrial hydraulic systems.
