Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | 90-Degree |
| Series | 5700-FG |

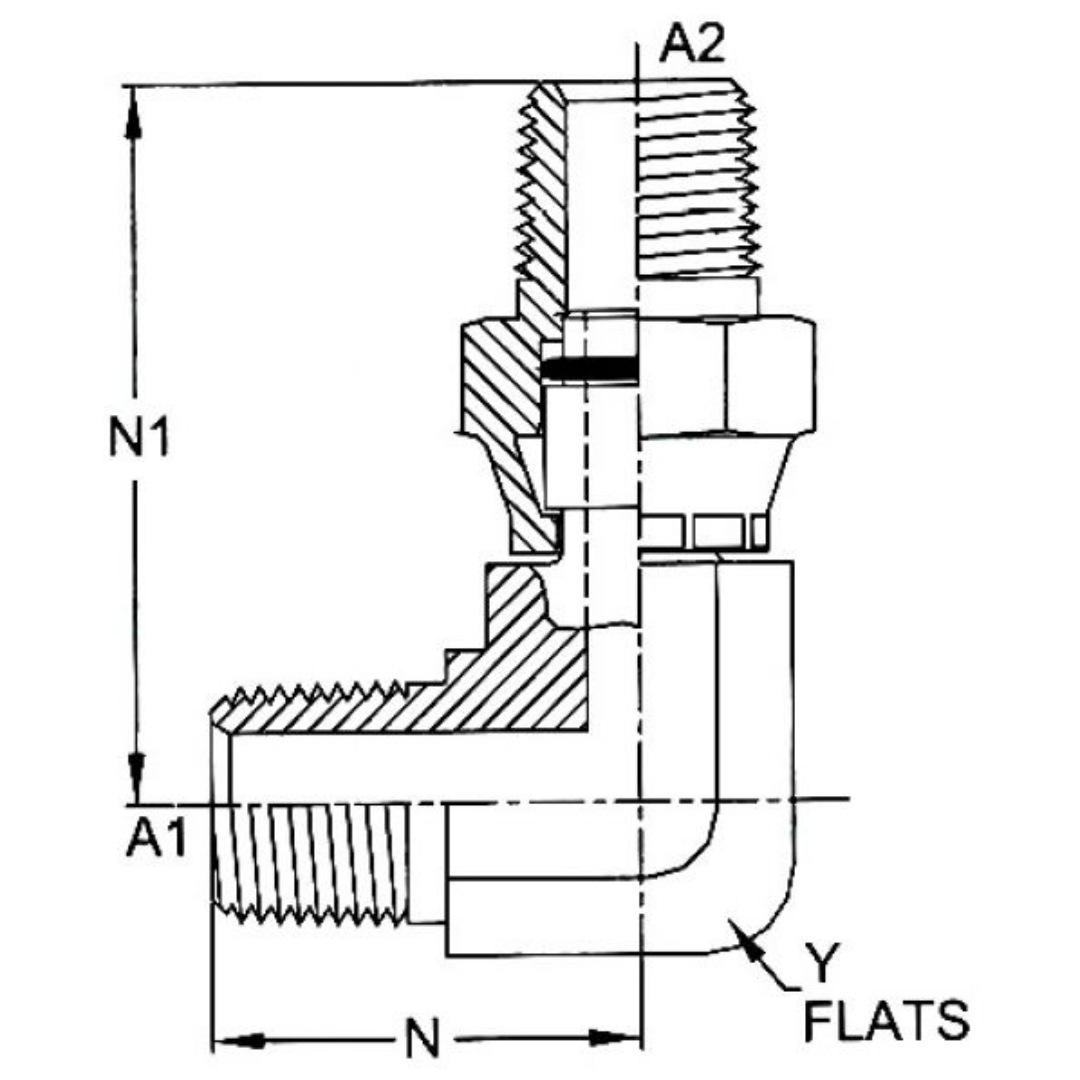

| Special Dims | Y Flats 0.562, A1 Drill 0.281, A1 NPTF 1/4-18, A2 NPTF 1/4-18, N Length 1.070, N1 Length 1.650 |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 1/4-18 (-04) |
| Side 1 Type | NPT |
| Side 2 Gender | MALE |
| Side 2 Size | 1/4-18 (-04) |
| Side 2 Type | NPT |
Description

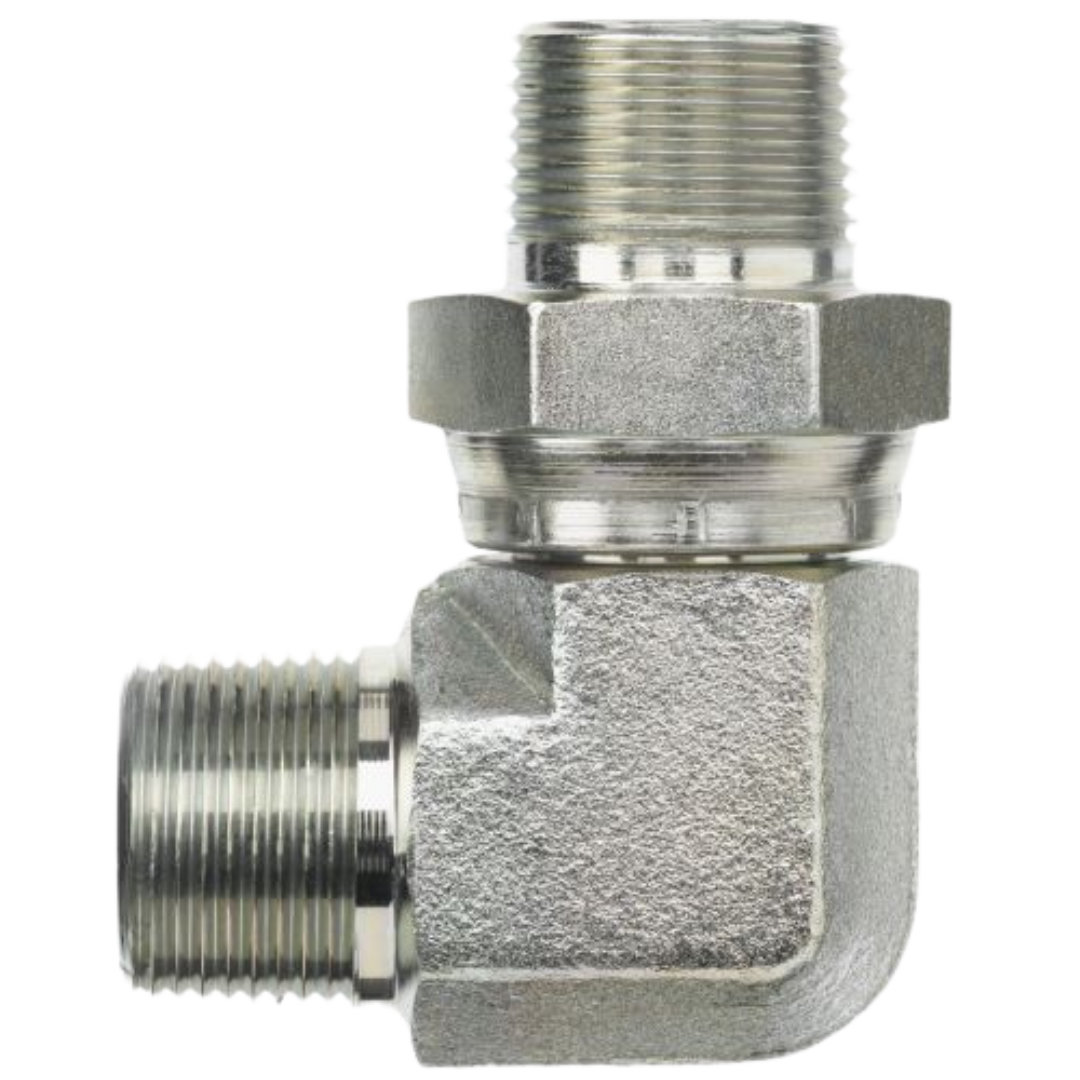

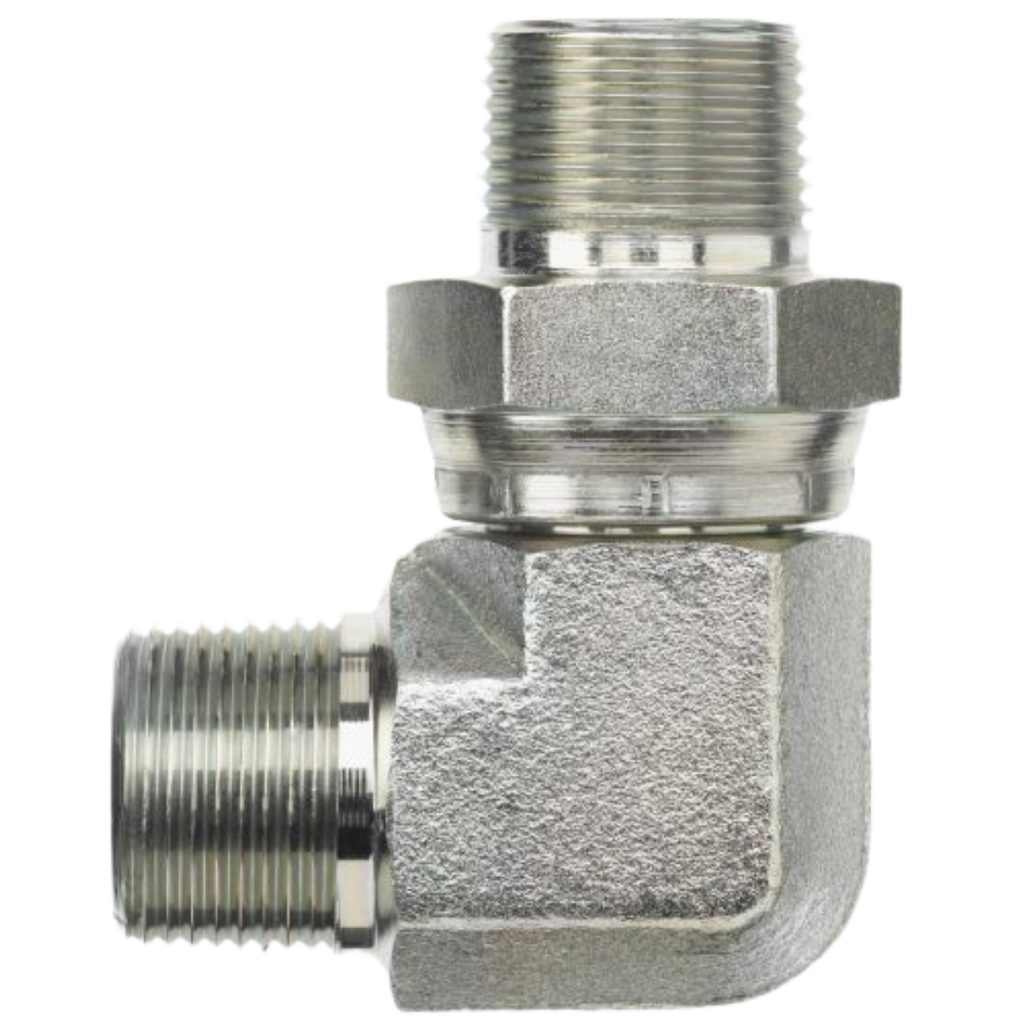

The Series 5700 90-Degree Angled Male NPTF x Male NPTF swivel adapters are high-performance carbon steel fittings designed to provide secure, leak-free connections in hydraulic and piping systems. Featuring a 90-degree angle, these adapters are perfect for efficiently routing hoses and pipes in tight or restricted spaces. Both ends are equipped with male NPTF (National Pipe Tapered Fuel) threads, ensuring a reliable, leak-tight seal through thread deformation. The swivel feature allows for easy adjustment during installation, making these adapters versatile for systems where precise alignment is needed. Made from durable carbon steel, the Series 5700 offers exceptional strength, corrosion resistance, and long-lasting performance in high-pressure fluid power applications, making them an ideal choice for industrial hydraulic systems.
