Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Brass |
| Shape | Cross |
| Pressure Rating | 3900 |
| Series | 5652-FG |

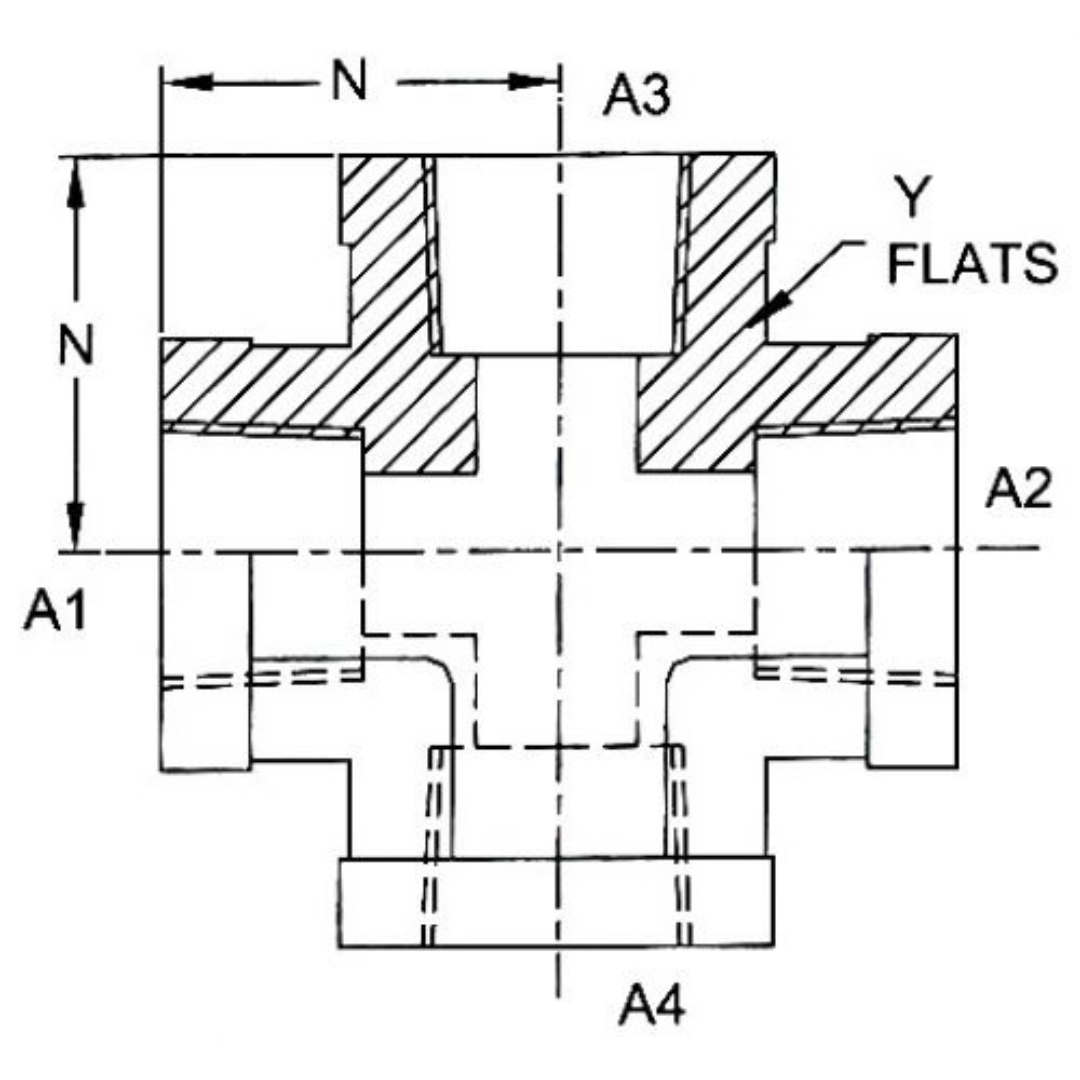

| Special Dims | Y Flats 0.750, N Length 0.88 |
| Country of Manufacture | China |
| Side 1 Gender | FEMALE |
| Side 1 Size | 1/4-18 (-04) |
| Side 1 Type | NPT |
| Side 2 Gender | FEMALE |
| Side 2 Size | 1/4-18 (-04) |
| Side 2 Type | NPT |
| Side 3 Gender | FEMALE |
| Side 3 Size | 1/4-18 (-04) |
| Side 3 Type | NPT |
| Side 4 Gender | FEMALE |
| Side 4 Size | 1/4-18 (-04) |
| Side 4 Type | NPT |
Description

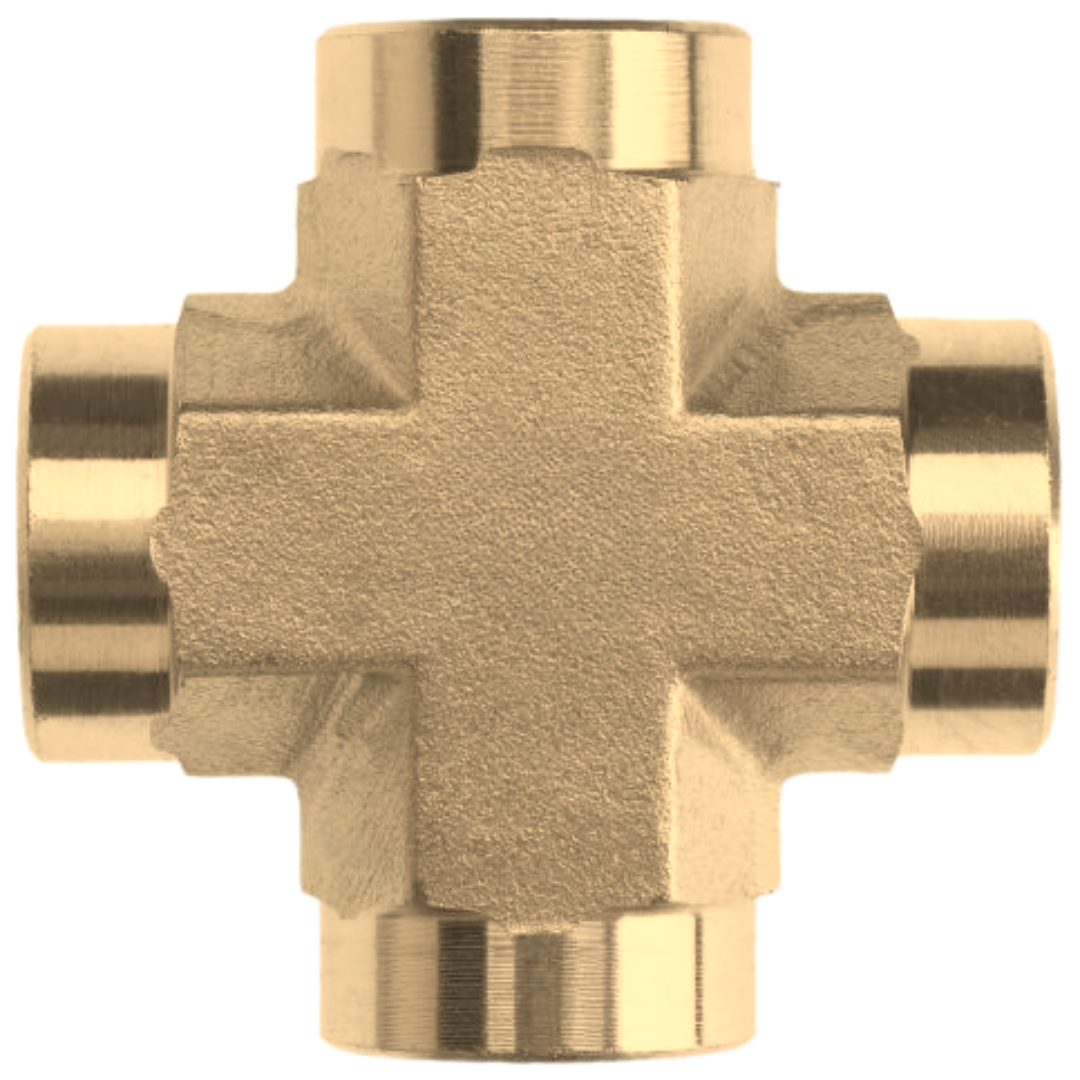

The Series 5652-B Cross Female NPT x Female NPT x Female NPT x Female NPT adapters are durable brass fittings designed for secure, efficient fluid routing in hydraulic and fluid power systems. These cross adapters feature four female NPT (National Pipe Tapered) connections arranged in a cross configuration, allowing fluid to be directed to four different components in the system. The female NPT connections use tapered threads that create a metal-to-metal seal, ensuring a leak-proof connection ideal for single assembly applications. Made from brass, these adapters offer excellent corrosion resistance and reliability, making them suitable for a wide range of industrial applications. The Series 5652-B adapters provide a robust and flexible solution for fluid transfer, ensuring long-lasting performance and efficient fluid routing in high-pressure environments.
