Product Details
Usually Ships Within | 3-5 Days |
---|---|
Factory Location | Twinsburg, Ohio or Houston, Texas |
Material | Steel |
Side 1 Gender | MALE |
Side 1 Size | M18 X 1.5 (-L12) |
Side 1 Type | LIGHT DUTY DIN TUBE |
Side 2 Gender | MALE |
Side 2 Size | M18 X 1.5 (-L12) |
Side 2 Type | LIGHT DUTY DIN TUBE |
Side 3 Gender | MALE |
Side 3 Size | M18 X 1.5 (-L12) |
Side 3 Type | LIGHT DUTY DIN TUBE |
Side 4 Gender | MALE |
Side 4 Size | M18 X 1.5 (-L12) |
Side 4 Type | LIGHT DUTY DIN TUBE |
Description

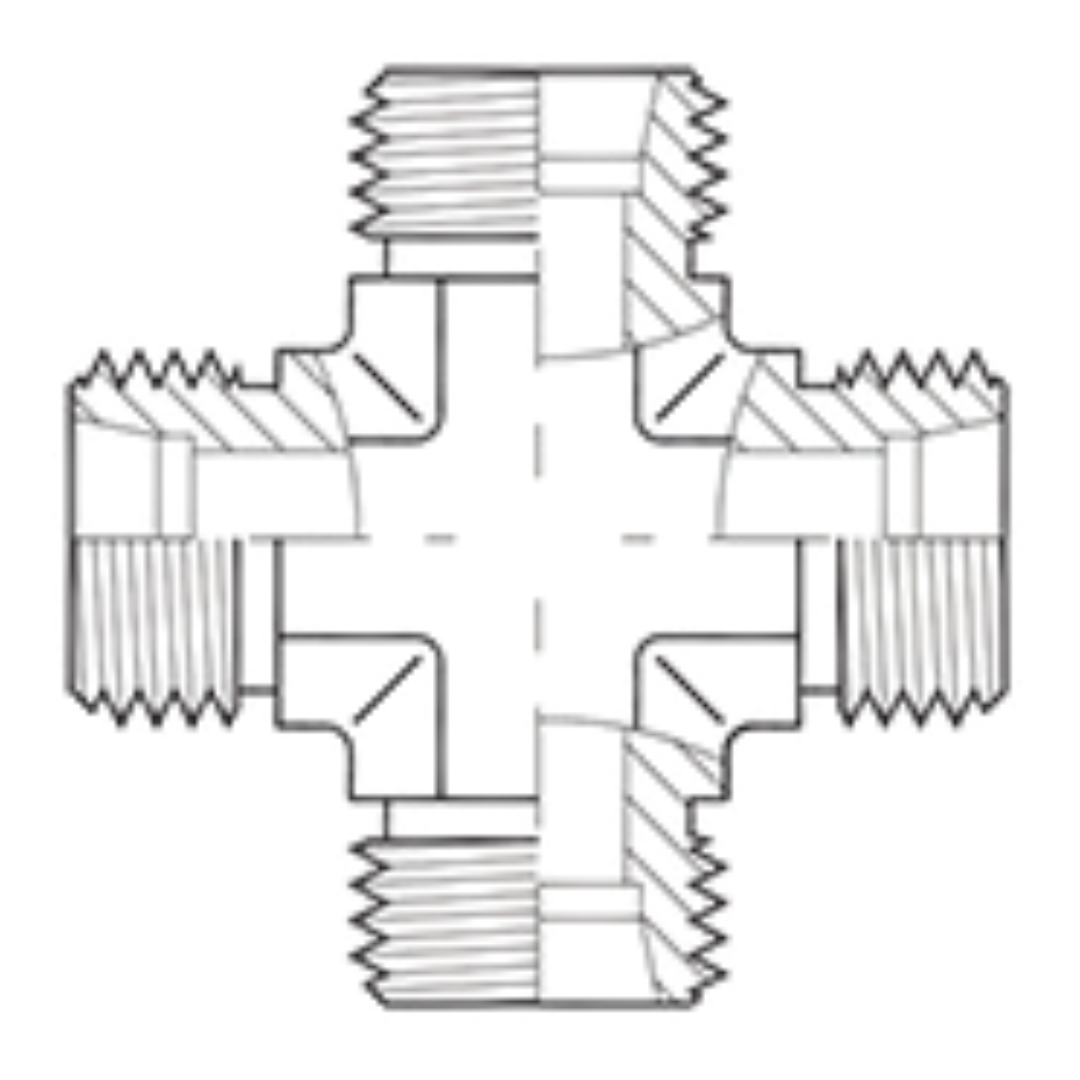

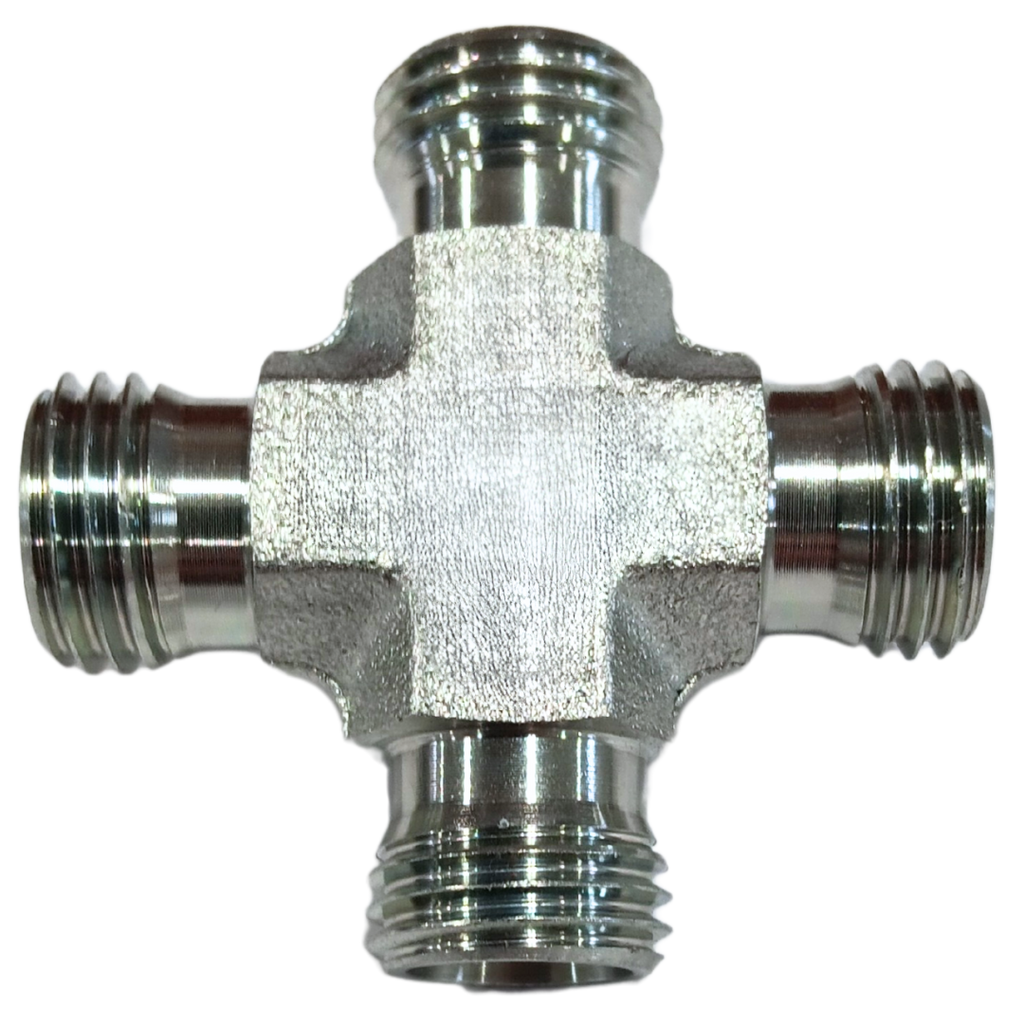

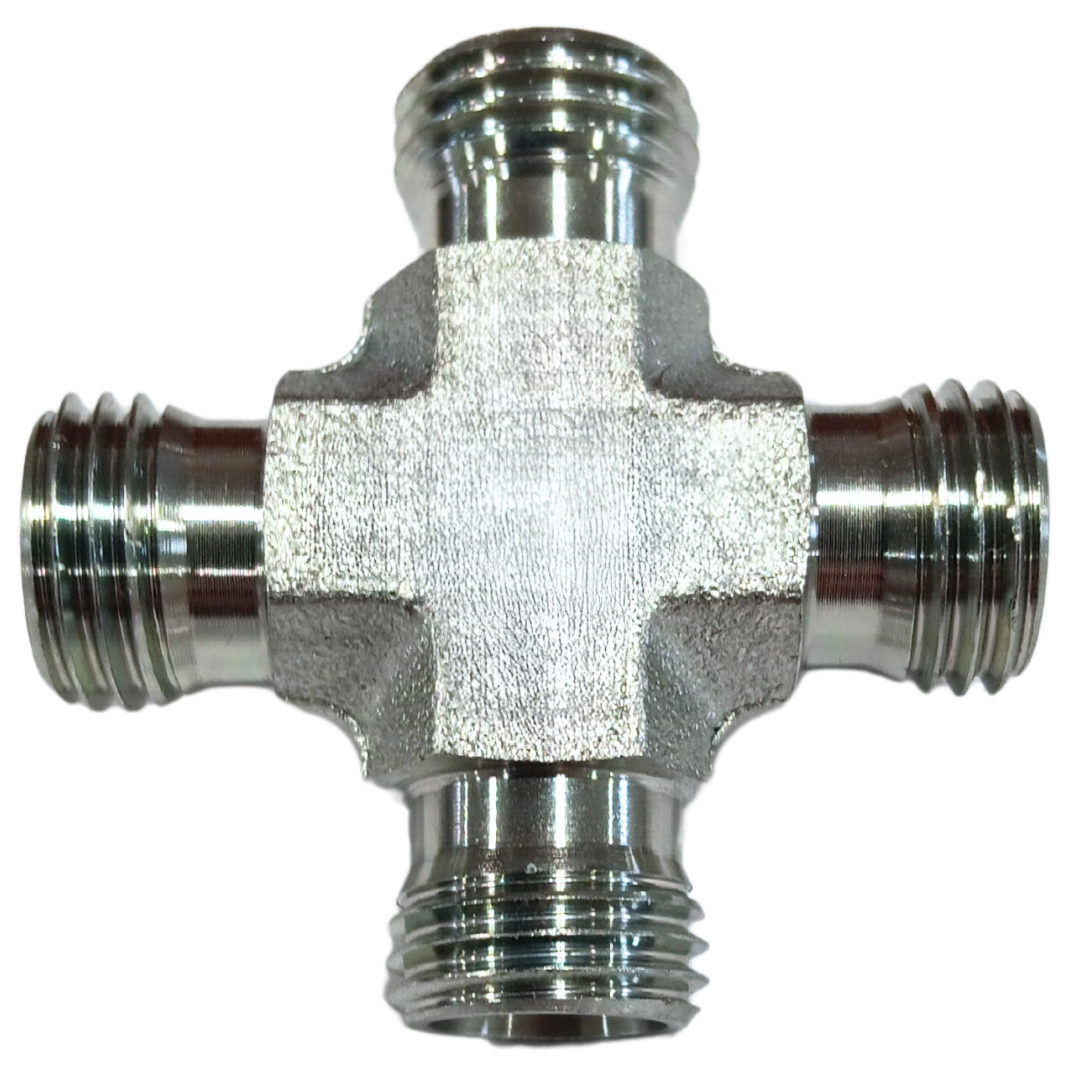

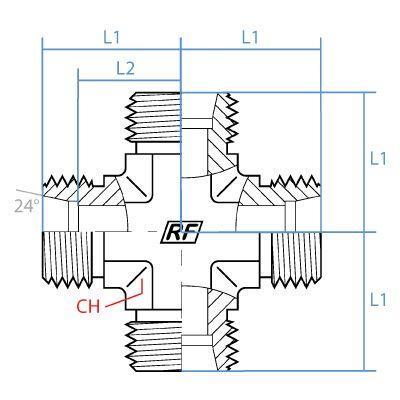

The Series 5096L Union Cross Male Light Duty DIN x Male Light Duty DIN x Male Light Duty DIN x Male Light Duty DIN adapters are durable carbon steel fittings designed for efficient fluid distribution in hydraulic and fluid power systems. These cross adapters feature four male light duty DIN connections arranged in a cross configuration, allowing fluid to be directed to multiple components. The male DIN connections, utilizing 24° tapered threads, are ideal for creating secure, leak-free connections in low-pressure applications. Constructed from carbon steel, these adapters provide excellent strength, durability, and resistance to corrosion, making them ideal for industrial environments. The Series 5096L adapters offer a reliable and cost-effective solution for fluid transfer, ensuring long-lasting performance and efficient fluid routing across various systems.
