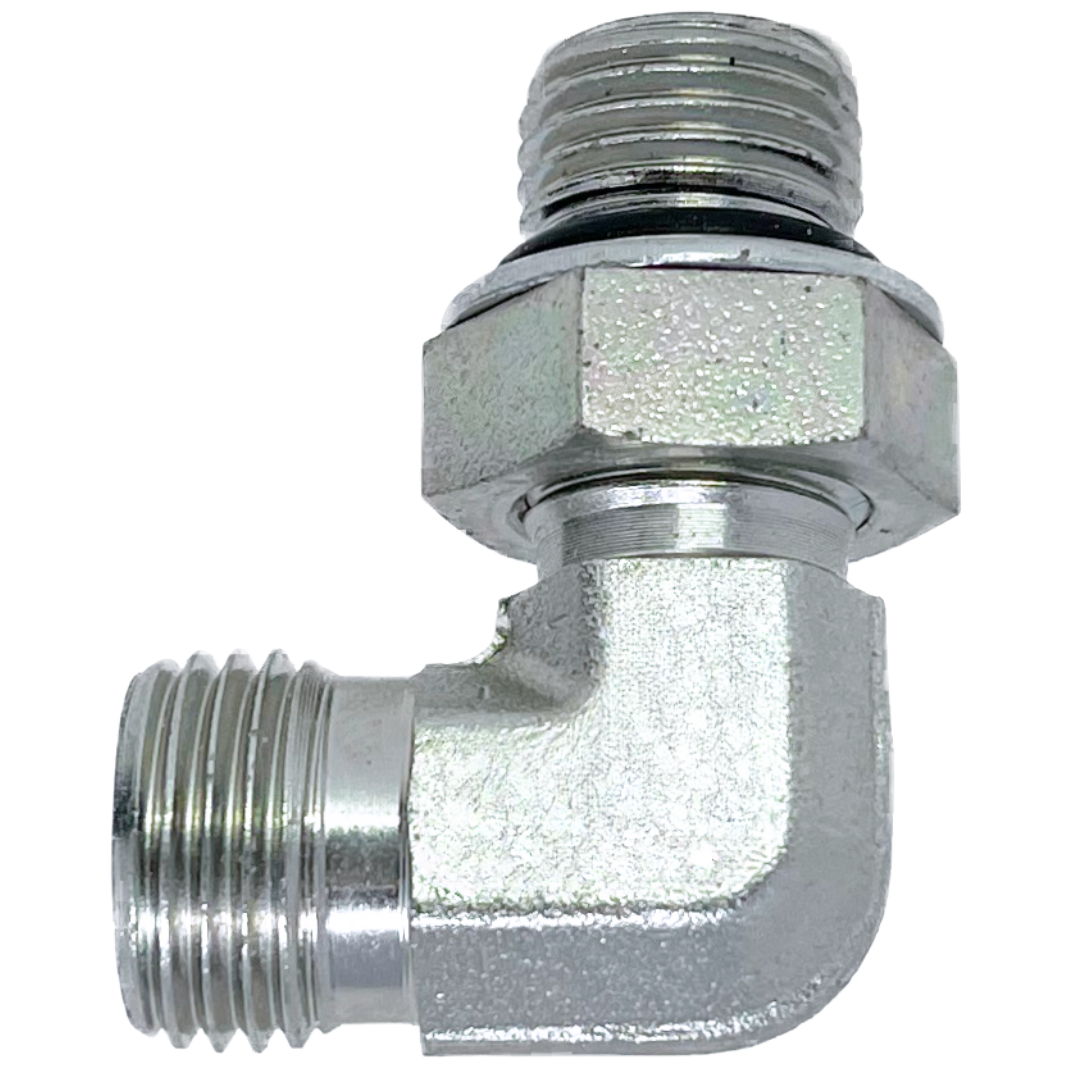

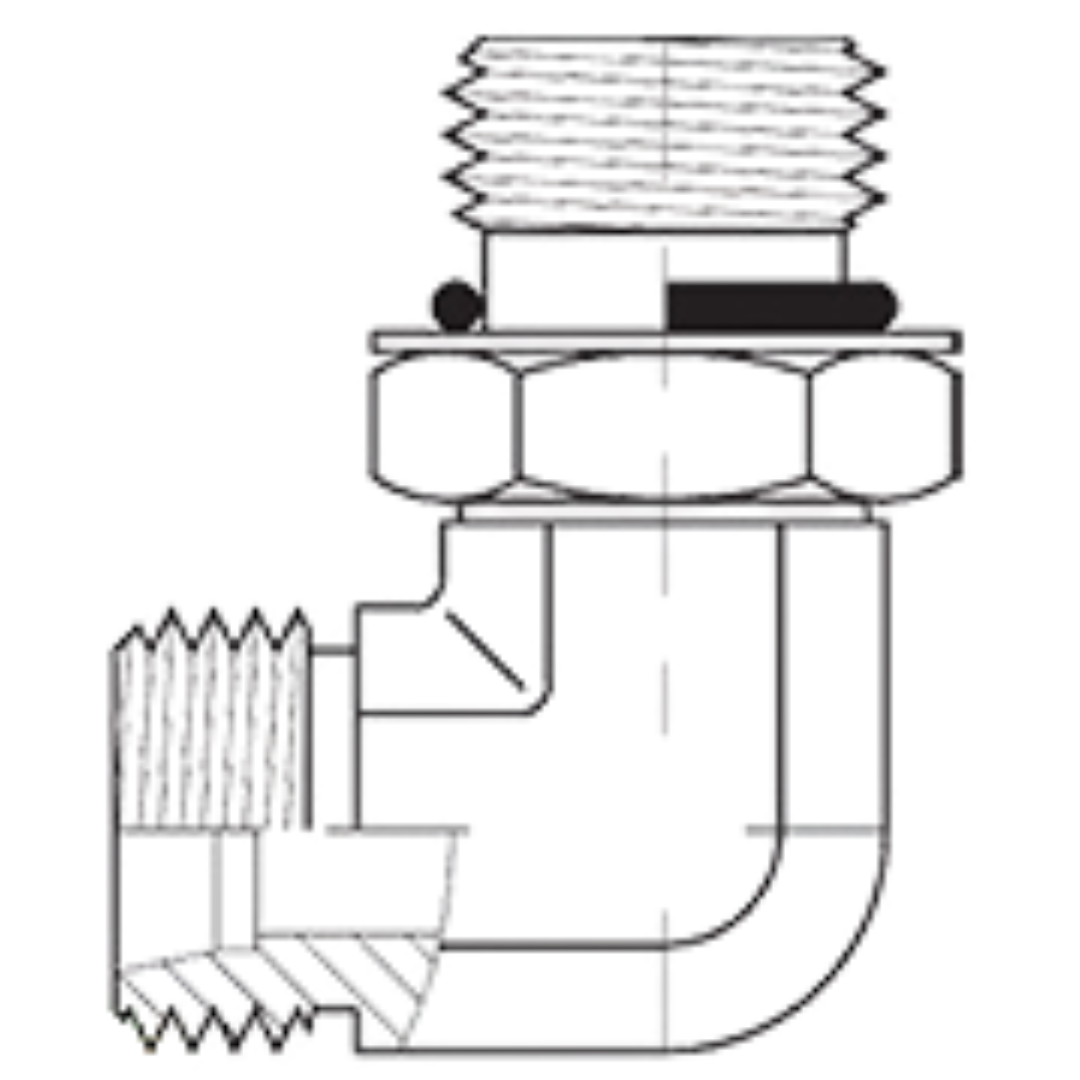

5077S-16-10 : Adaptall 90-Degree Steel Adapter, M24 X 1.5 (-S16) Male Heavy Duty DIN x 7/8-14 (-10) Male Adjustable ORB
5077S-16-10 : Adaptall 90-Degree Steel Adapter, M24 X 1.5 (-S16) Male Heavy Duty DIN x 7/8-14 (-10) Male Adjustable ORB
Roll over image to zoom in Click on image to zoom
5077S-16-10 : Adaptall 90-Degree Steel Adapter, M24 X 1.5 (-S16) Male Heavy Duty DIN x 7/8-14 (-10) Male Adjustable ORB5077S-16-10 : Adaptall 90-Degree Steel Adapter, M24 X 1.5 (-S16) Male Heavy Duty DIN x 7/8-14 (-10) Male Adjustable ORB

5077S-16-10 : Adaptall 90-Degree Steel Adapter, M24 X 1.5 (-S16) Male Heavy Duty DIN x 7/8-14 (-10) Male Adjustable ORB

Save $14.31
Adapt AllSKU: 5077S-16-10
3-5 Days
Price:
$17.27 $31.58

Product Details

Usually Ships Within 3-5 Days
Factory Location Twinsburg, Ohio or Houston, Texas
Material Steel
Side 1 Gender MALE
Side 1 Size M24 X 1.5 (-S16)
Side 1 Type HEAVY DUTY DIN TUBE
Side 2 Gender MALE
Side 2 Size 7/8-14 (-10)
Side 2 Type ORB

Description

The Series 5077S 90-Degree Angled Male Heavy Duty DIN x Male Adjustable ORB adapters are high-performance carbon steel fittings designed to provide secure, leak-free connections in hydraulic systems, particularly for heavy-duty applications. These adapters feature a 90-degree angle, making them ideal for routing hoses and pipes efficiently in tight or confined spaces. One end is equipped with a male Heavy Duty DIN (Deutsches Institut für Normung) connection, commonly used in European hydraulic systems, while the other end features a male Adjustable ORB (O-Ring Boss) connection, which ensures a reliable, adjustable seal by compressing an O-ring into the port’s chamfer. Made from durable carbon steel, the Series 5077S offers exceptional strength, corrosion resistance, and long-lasting performance in high-pressure fluid power systems, making it the perfect choice for demanding industrial environments that require strong, reliable connections.
