Product Details
| Usually Ships Within | 3-5 Days |
|---|---|
| Factory Location | Twinsburg, Ohio or Houston, Texas |
| Material | Steel |
| Side 1 Gender | MALE |
| Side 1 Size | M52 X 2.0 (-L42) |
| Side 1 Type | LIGHT DUTY DIN TUBE |
| Side 2 Gender | MALE |
| Side 2 Size | 1-7/8-12 (-24) |
| Side 2 Type | ORB |
Description

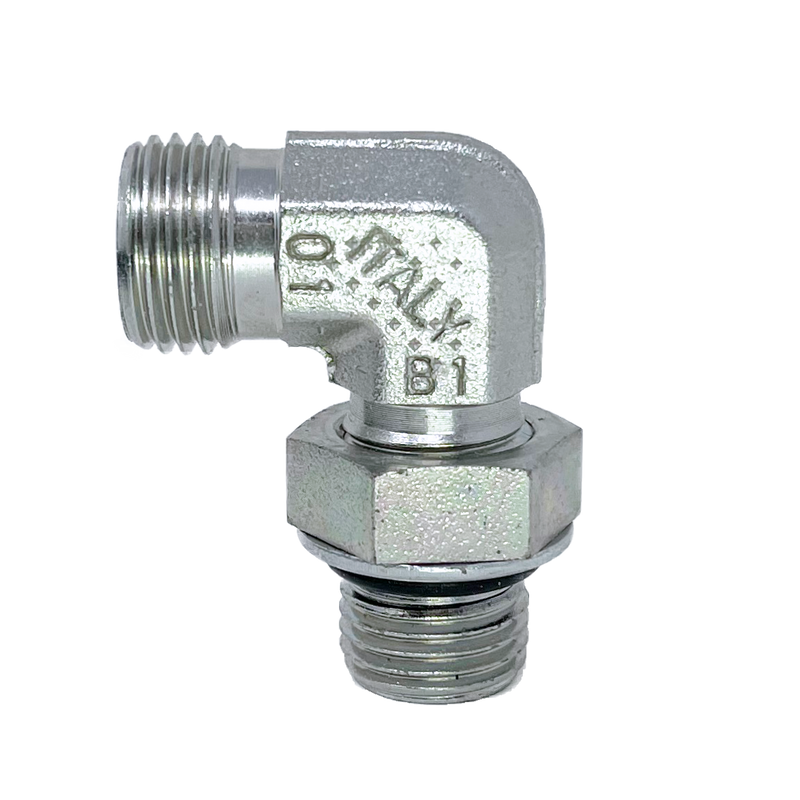

The Series 5077L 90-Degree Angled Male Light Duty DIN x Male Adjustable ORB adapters are high-quality carbon steel fittings designed for secure, leak-free connections in hydraulic systems, particularly for light-duty applications. These adapters feature a 90-degree angle, making them ideal for efficiently routing hoses and pipes in tight or restricted spaces. One end is equipped with a male Light Duty DIN (Deutsches Institut für Normung) connection, commonly used in European hydraulic systems, while the other end features a male Adjustable ORB (O-Ring Boss) connection, which ensures a reliable, adjustable seal by compressing an O-ring into the port’s chamfer. Made from durable carbon steel, the Series 5077L provides excellent strength, corrosion resistance, and long-lasting performance in moderate-pressure fluid power systems, making it an ideal choice for industrial applications that require dependable and efficient connections.
