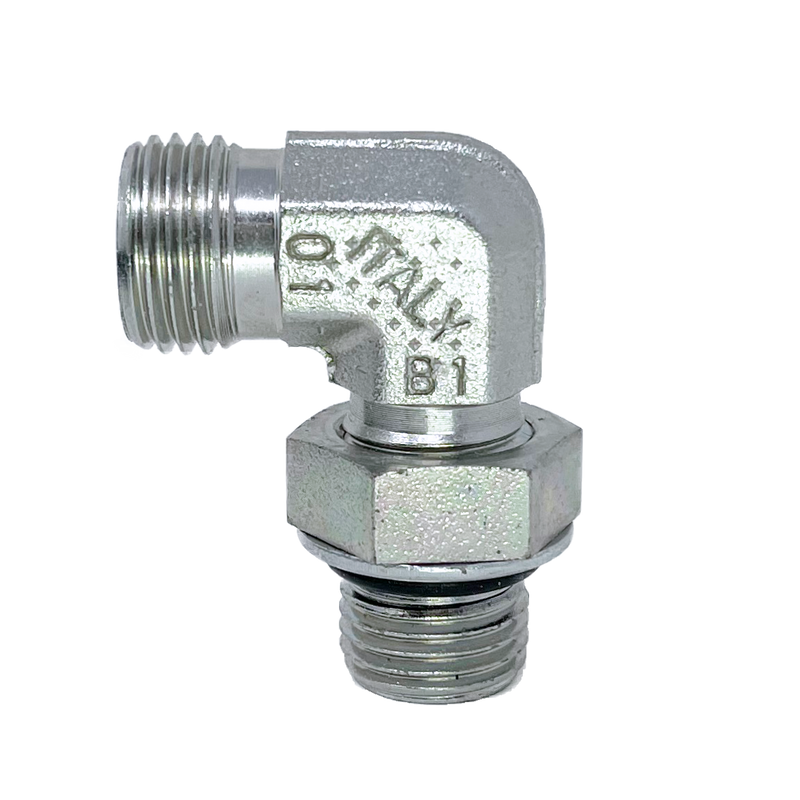

5077L-10-06 : Adaptall 90-Degree Steel Adapter, M16 X 1.5 (-L10) Male Light Duty DIN x 9/16-18 (-06) Male Adjustable ORB

Save $8.61
Adapt AllSKU: 5077L-10-06
3-5 Days

Price:
Sale price$11.87 Regular price$20.48

Product Details

Usually Ships Within 3-5 Days
Factory Location Twinsburg, Ohio or Houston, Texas
Material Steel
Side 1 Gender MALE
Side 1 Size M16 X 1.5 (-L10)
Side 1 Type LIGHT DUTY DIN TUBE
Side 2 Gender MALE
Side 2 Size 9/16-18 (-06)
Side 2 Type ORB

Description

The Series 5077L 90-Degree Angled Male Light Duty DIN x Male Adjustable ORB adapters are high-quality carbon steel fittings designed for secure, leak-free connections in hydraulic systems, particularly for light-duty applications. These adapters feature a 90-degree angle, making them ideal for efficiently routing hoses and pipes in tight or restricted spaces. One end is equipped with a male Light Duty DIN (Deutsches Institut für Normung) connection, commonly used in European hydraulic systems, while the other end features a male Adjustable ORB (O-Ring Boss) connection, which ensures a reliable, adjustable seal by compressing an O-ring into the port’s chamfer. Made from durable carbon steel, the Series 5077L provides excellent strength, corrosion resistance, and long-lasting performance in moderate-pressure fluid power systems, making it an ideal choice for industrial applications that require dependable and efficient connections.
