Product Details
| Usually Ships Within | 3-5 Days |
|---|---|
| Factory Location | Twinsburg, Ohio or Houston, Texas |
| Material | Steel |
| Side 1 Gender | MALE |
| Side 1 Size | M22 X 1.5 (-L15) |
| Side 1 Type | LIGHT DUTY DIN TUBE |
| Side 2 Gender | MALE |
| Side 2 Size | 3/8-18 (-06) |
| Side 2 Type | NPT |
Description

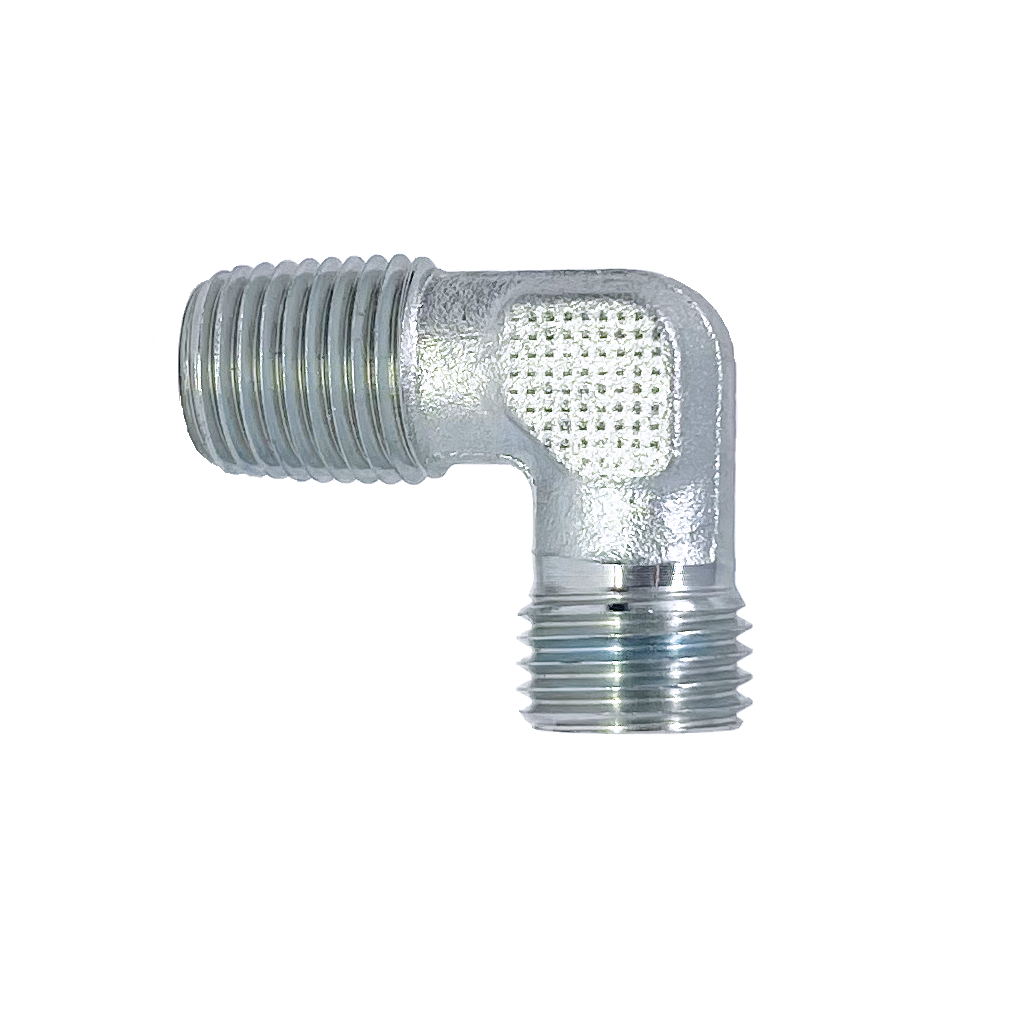

The Series 5070L 90-Degree Angled Male Light Duty DIN x Male NPT adapters are high-performance carbon steel fittings designed to provide secure, leak-free connections in hydraulic and piping systems. These adapters feature a 90-degree angle, making them ideal for routing pipes at a right angle in tight spaces. One end is equipped with a male Light Duty DIN (Deutsches Institut für Normung) connection, commonly used in European hydraulic systems, while the other end features a male NPT (National Pipe Tapered) thread, ensuring a reliable, leak-tight seal through thread deformation. Designed for light-duty applications, these adapters offer exceptional strength, corrosion resistance, and ease of installation. Made from durable carbon steel, the Series 5070L provides long-lasting performance and is perfect for moderate-pressure fluid power systems, making it an ideal solution for industrial environments requiring dependable connections.
