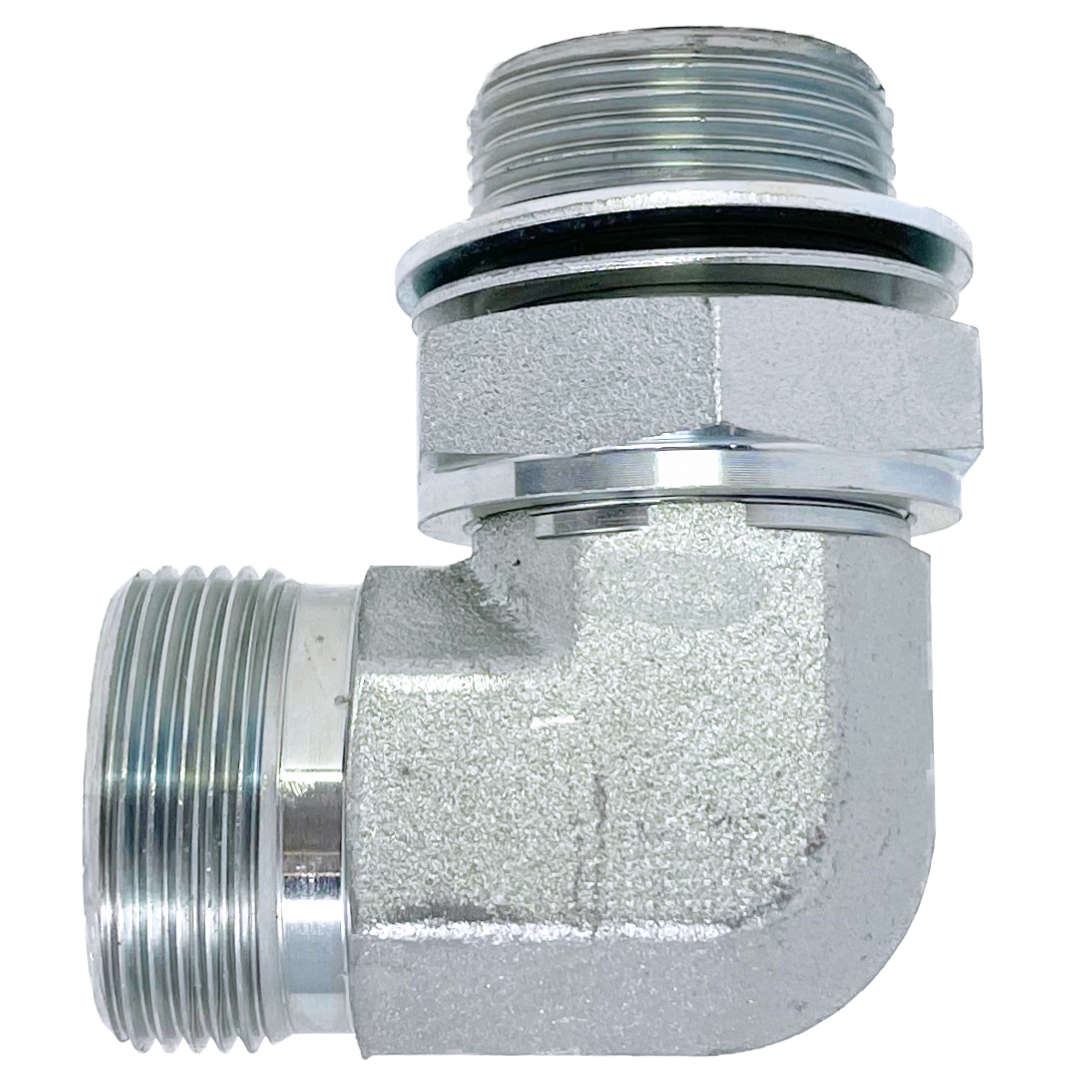

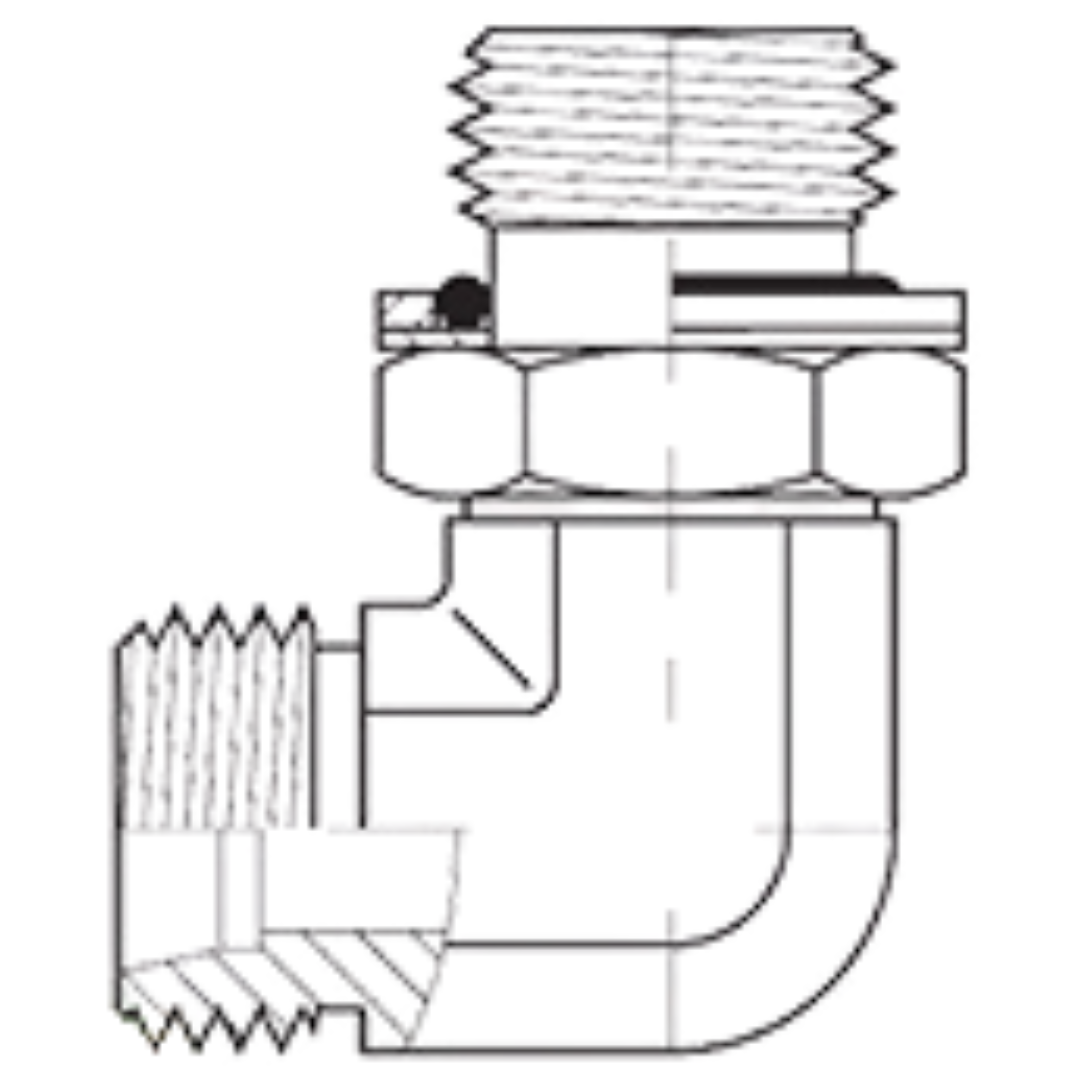

5069S-25-33 : Adaptall 90-Degree Steel Adapter, M36 X 2.0 (-S25) Male Heavy Duty DIN x M33 X 2.0 (33mm) Male Adjustable Metric
5069S-25-33 : Adaptall 90-Degree Steel Adapter, M36 X 2.0 (-S25) Male Heavy Duty DIN x M33 X 2.0 (33mm) Male Adjustable Metric
Roll over image to zoom in Click on image to zoom
5069S-25-33 : Adaptall 90-Degree Steel Adapter, M36 X 2.0 (-S25) Male Heavy Duty DIN x M33 X 2.0 (33mm) Male Adjustable Metric5069S-25-33 : Adaptall 90-Degree Steel Adapter, M36 X 2.0 (-S25) Male Heavy Duty DIN x M33 X 2.0 (33mm) Male Adjustable Metric

5069S-25-33 : Adaptall 90-Degree Steel Adapter, M36 X 2.0 (-S25) Male Heavy Duty DIN x M33 X 2.0 (33mm) Male Adjustable Metric

Save $37.81
Adapt AllSKU: 5069S-25-33
3-5 Days
Price:
$21.27 $59.08

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Usually Ships Within 3-5 Days
Factory Location Twinsburg, Ohio or Houston, Texas
Material Steel
Side 1 Gender MALE
Side 1 Size M36 X 2.0 (-S25)
Side 1 Type HEAVY DUTY DIN TUBE
Side 2 Gender MALE
Side 2 Size M33 X 2.0 (33mm)
Side 2 Type METRIC

Description

The Series 5069S 90-Degree Angled Male Heavy Duty DIN x Male Metric Adjustable adapters are high-performance carbon steel fittings designed for secure, leak-free connections in hydraulic systems, particularly for heavy-duty applications. These adapters feature a 90-degree angle, making them ideal for efficiently routing hoses and pipes in tight or confined spaces. One end is equipped with a male Heavy Duty DIN (Deutsches Institut für Normung) connection, commonly used in European hydraulic systems, while the other end features a male Metric Adjustable connection, which provides a reliable, adjustable seal by compressing an O-ring into the port’s chamfer. Made from durable carbon steel, these adapters offer exceptional strength, corrosion resistance, and long-lasting performance, making them perfect for high-pressure fluid power systems and industrial applications that require robust, flexible, and dependable connections.
