Product Details
| Usually Ships Within | 3-5 Days |
|---|---|
| Factory Location | Twinsburg, Ohio or Houston, Texas |
| Material | Steel |
| Side 1 Gender | MALE |
| Side 1 Size | M36 X 2.0 (-L28) |
| Side 1 Type | LIGHT DUTY DIN TUBE |
| Side 2 Gender | MALE |
| Side 2 Size | M33 X 2.0 (33mm) |
| Side 2 Type | METRIC |
Description

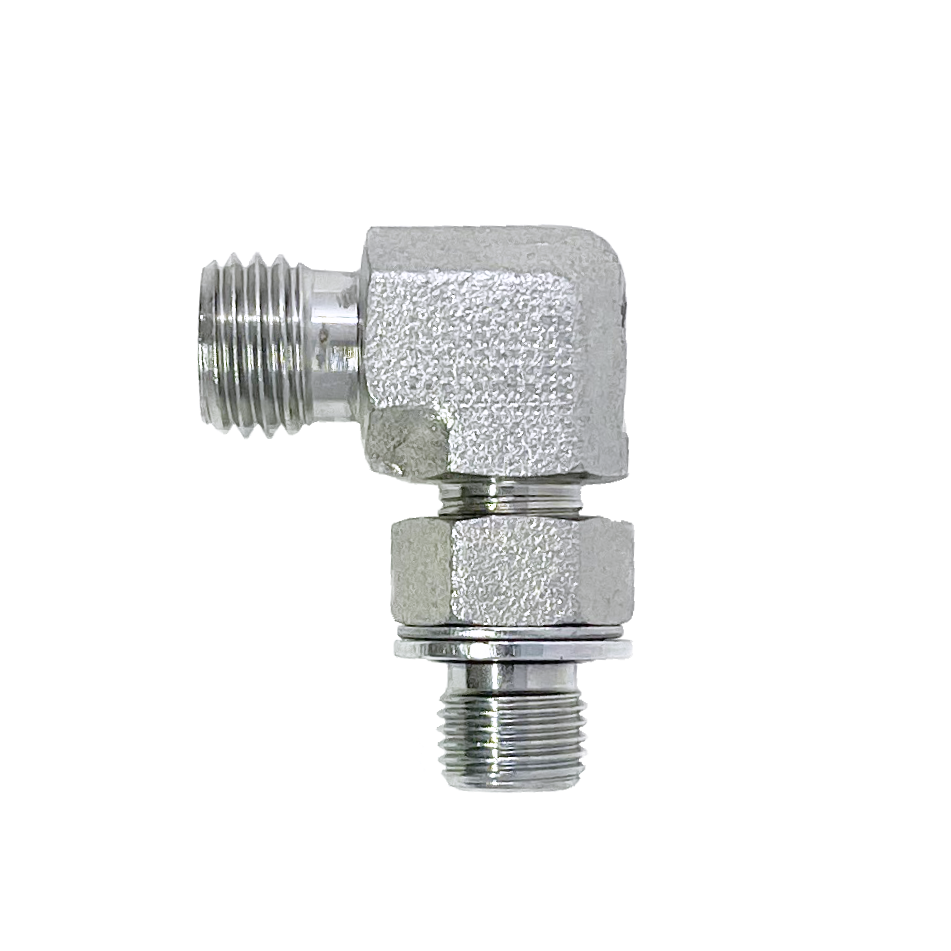

The Series 5069L 90-Degree Angled Male Light Duty DIN x Male Metric Adjustable adapters are high-quality carbon steel fittings designed to provide secure, leak-free connections in hydraulic systems, particularly for light-duty applications. These adapters feature a 90-degree angle, allowing for efficient routing of hoses and pipes in tight or confined spaces. One end is equipped with a male Light Duty DIN (Deutsches Institut für Normung) connection, commonly used in European hydraulic systems, while the other end has a male Metric Adjustable connection, typically used in international systems. The adjustable feature ensures a reliable, leak-tight seal by compressing an O-ring into the port’s chamfer. Made from durable carbon steel, the Series 5069L provides excellent strength, corrosion resistance, and long-lasting performance, making it ideal for moderate-pressure fluid power systems and industrial applications that require flexible, dependable, and efficient connections.
