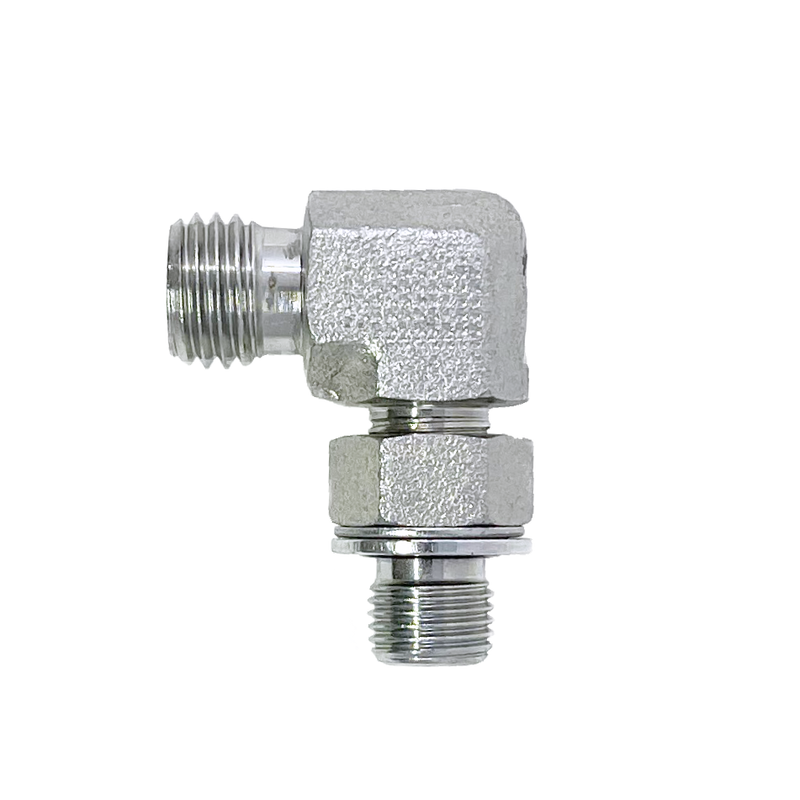

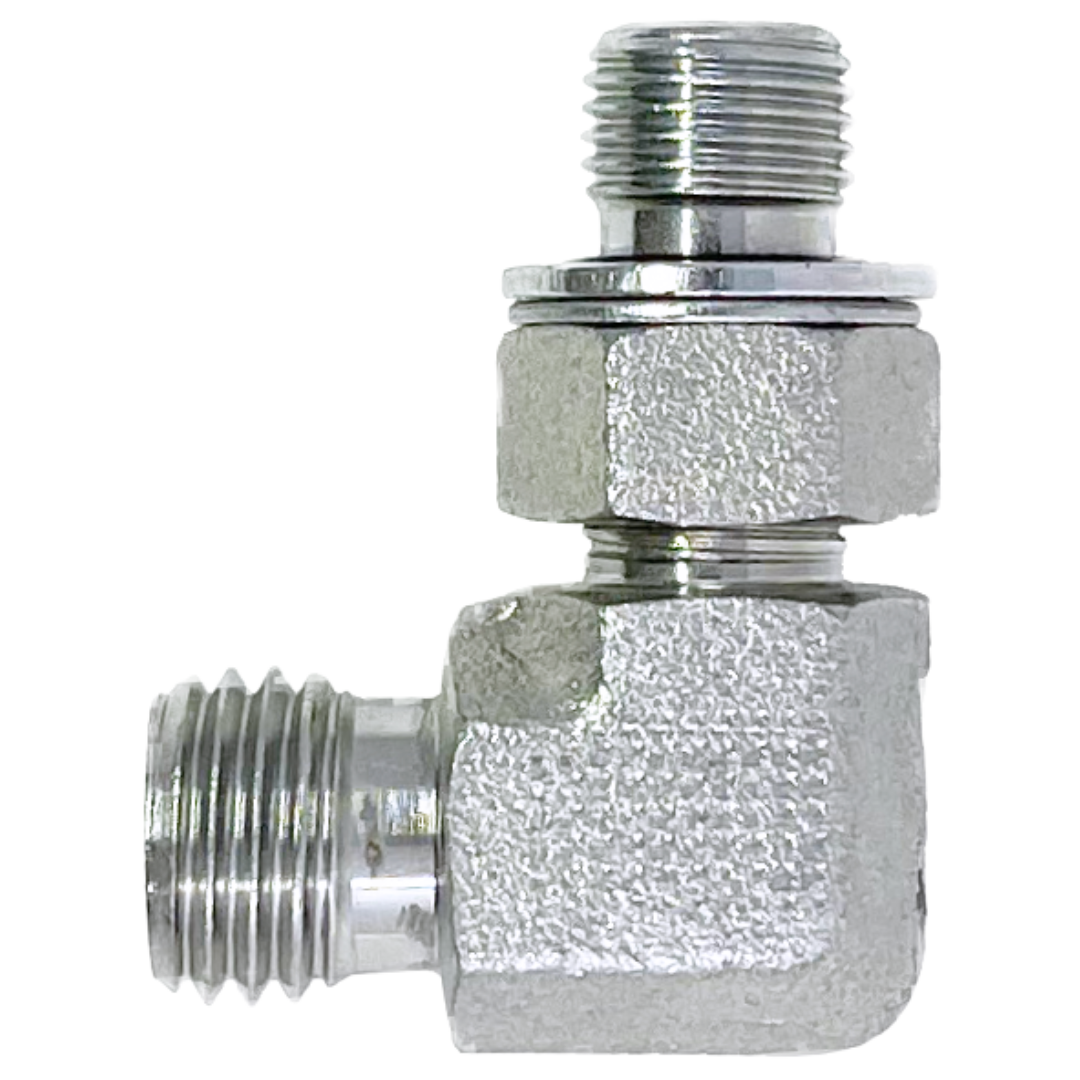

5069L-08-12 : Adaptall 90-Degree Steel Adapter, M14 X 1.5 (-L08) Male Light Duty DIN x M12 X 1.5 (12mm) Male Adjustable Metric

Save $8.57
Adapt AllSKU: 5069L-08-12
3-5 Days

Price:
Sale price$11.87 Regular price$20.44

Product Details

Usually Ships Within 3-5 Days
Factory Location Twinsburg, Ohio or Houston, Texas
Material Steel
Side 1 Gender MALE
Side 1 Size M14 X 1.5 (-L08)
Side 1 Type LIGHT DUTY DIN TUBE
Side 2 Gender MALE
Side 2 Size M12 X 1.5 (12mm)
Side 2 Type METRIC

Description

The Series 5069L 90-Degree Angled Male Light Duty DIN x Male Metric Adjustable adapters are high-quality carbon steel fittings designed to provide secure, leak-free connections in hydraulic systems, particularly for light-duty applications. These adapters feature a 90-degree angle, allowing for efficient routing of hoses and pipes in tight or confined spaces. One end is equipped with a male Light Duty DIN (Deutsches Institut für Normung) connection, commonly used in European hydraulic systems, while the other end has a male Metric Adjustable connection, typically used in international systems. The adjustable feature ensures a reliable, leak-tight seal by compressing an O-ring into the port’s chamfer. Made from durable carbon steel, the Series 5069L provides excellent strength, corrosion resistance, and long-lasting performance, making it ideal for moderate-pressure fluid power systems and industrial applications that require flexible, dependable, and efficient connections.
