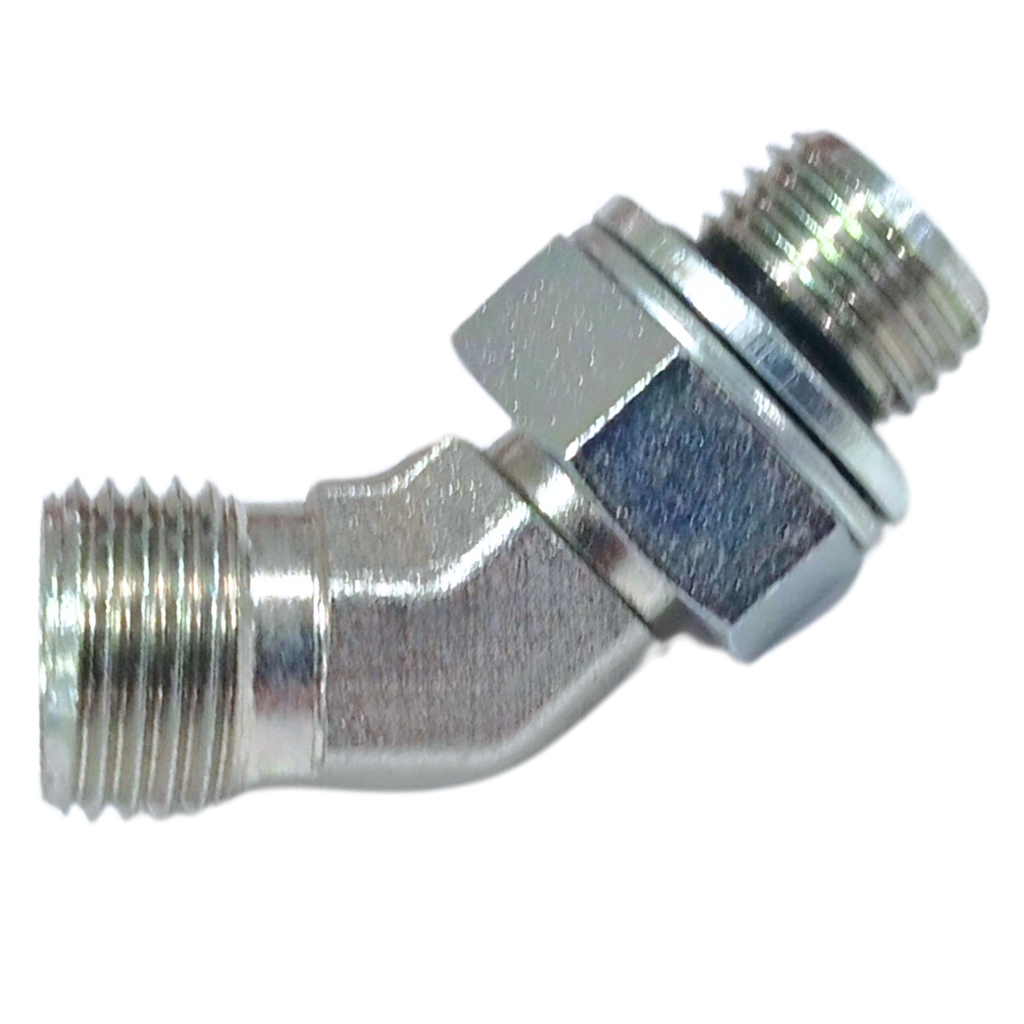

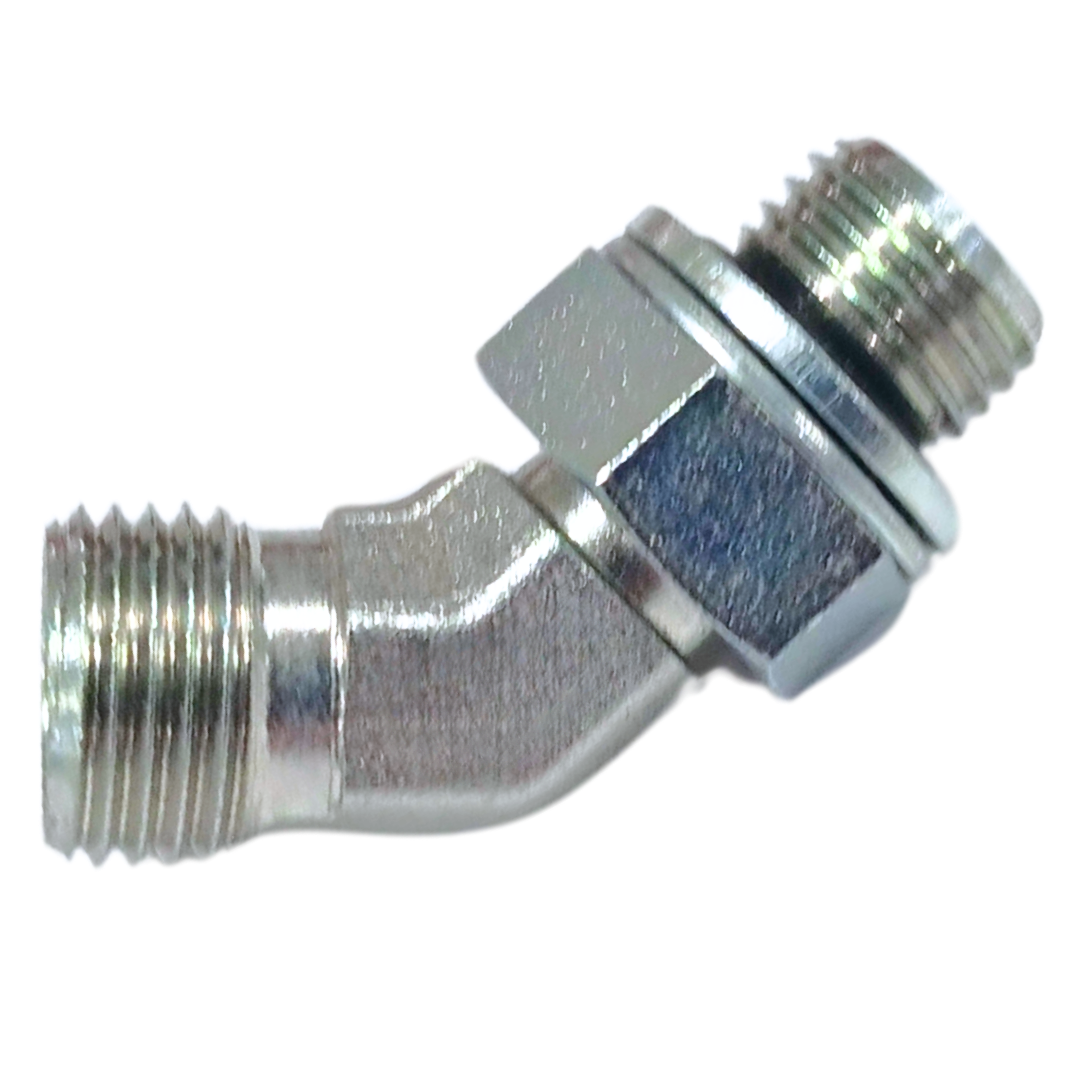

5066S-16-22 : Adaptall 45-Degree Steel Adapter, M24 X 1.5 (-S16) Male Heavy Duty DIN x M22 X 1.5 (22mm) Male Adjustable Metric

Save $28.43
Adapt AllSKU: 5066S-16-22
3-5 Days

Price:
Sale price$33.47 Regular price$61.90

Product Details

Usually Ships Within 3-5 Days
Factory Location Twinsburg, Ohio or Houston, Texas
Material Steel
Side 1 Gender MALE
Side 1 Size M24 X 1.5 (-S16)
Side 1 Type HEAVY DUTY DIN TUBE
Side 2 Gender MALE
Side 2 Size M22 X 1.5 (22mm)
Side 2 Type METRIC

Description

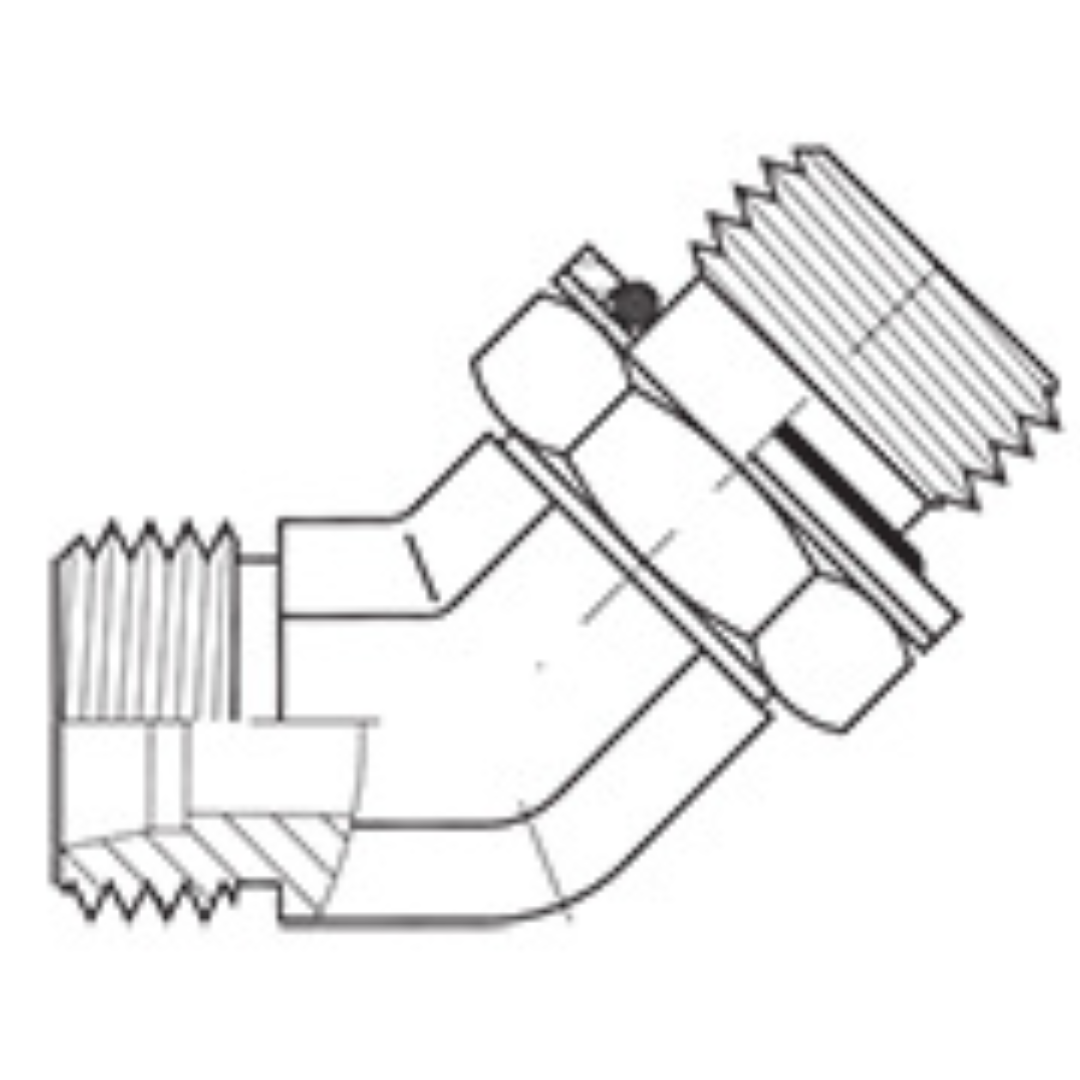

The Series 5066S 45-Degree Angled Male Heavy Duty DIN x Male Adjustable Metric adapters, made from robust carbon steel, are designed for fluid systems requiring durable, leak-free connections. These adapters feature a male DIN Tube Heavy Duty connection that complies with ISO 8434-1 / DIN 2353 standards, including a dual-purpose ball seat. The male DIN fitting has a 24° tapered throat inside, which, when paired with a metric thread, clearly identifies it as a DIN fitting. The connection is secured by tightening a tube nut over the metric threads, compressing a ferrule or cutting ring that grips the tube and forms a seal. These adapters are categorized into pressure classes—LL for extra light duty, L for light duty, and S for heavy duty—making them ideal for high-pressure applications. The adjustable feature ensures flexibility in installation, while the design ensures high-performance sealing, making these adapters suitable for demanding fluid power systems.
