4603-32-32-NWO-FG : OneHydraulics 45-Degree Steel Adapter, 2" (-32) Hose Barb OD x 2-1/2-12 (-32) Male Adjustable ORB
4603-32-32-NWO-FG : OneHydraulics 45-Degree Steel Adapter, 2" (-32) Hose Barb OD x 2-1/2-12 (-32) Male Adjustable ORB
Roll over image to zoom in Click on image to zoom
4603-32-32-NWO-FG : OneHydraulics 45-Degree Steel Adapter, 2" (-32) Hose Barb OD x 2-1/2-12 (-32) Male Adjustable ORB4603-32-32-NWO-FG : OneHydraulics 45-Degree Steel Adapter, 2" (-32) Hose Barb OD x 2-1/2-12 (-32) Male Adjustable ORB

4603-32-32-NWO-FG : OneHydraulics 45-Degree Steel Adapter, 2" (-32) Hose Barb OD x 2-1/2-12 (-32) Male Adjustable ORB

Save $133.16
OneHydraulicsSKU: 4603-32-32-NWO-FG
1-3 Days
Price:
$124.56 $257.72

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Location Houston, Texas or Dallas, Texas or Cleveland, Ohio
Material Steel
Shape 45-Degree

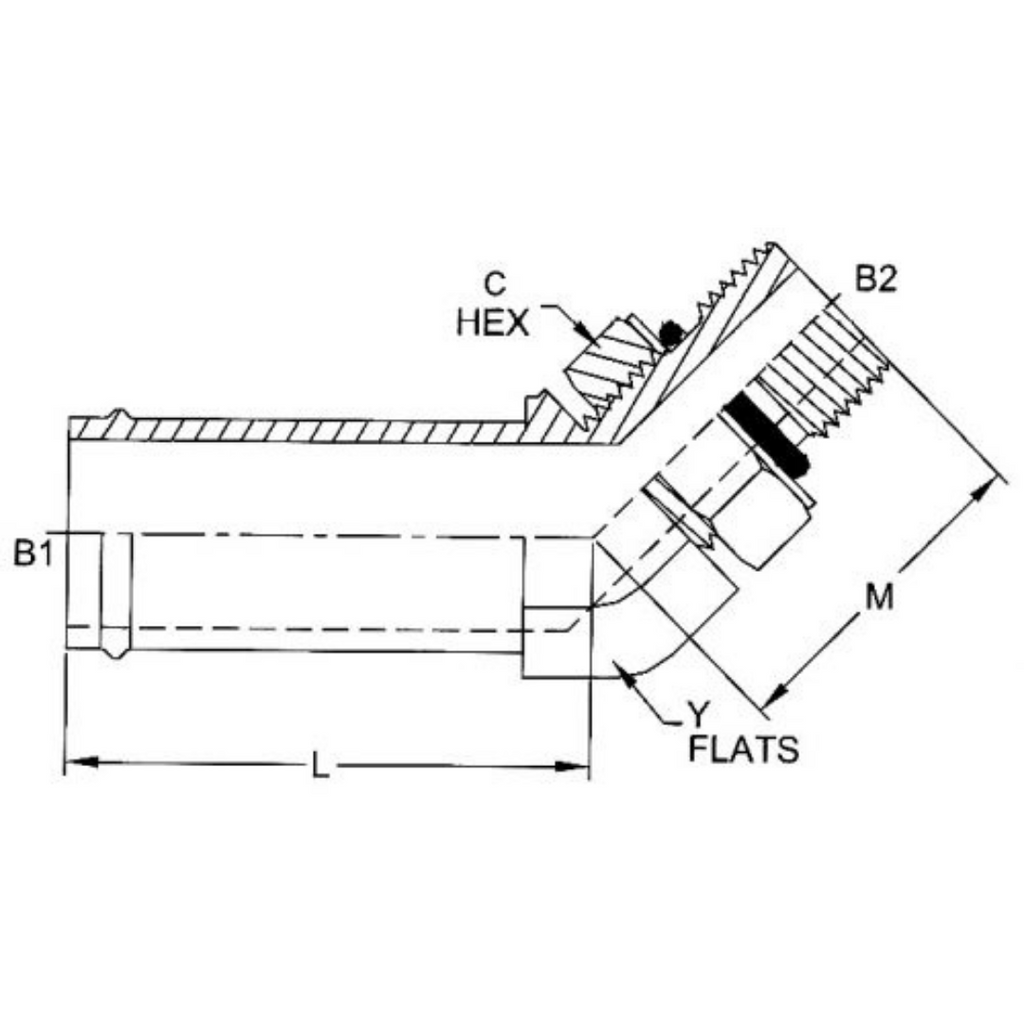

Special Dims L Length 2.237, C Hex 2.750, Y Flats 2.500, B1 Drill 1.843, B2 Drill 1.781, A2 NPSM , M Length 1.860, M1 Length , B1 Tube 2, B2 ORB 2 1/2-12
Country of Manufacture China
Side 1 Gender MALE
Side 1 Size 2" (-32)
Side 1 Type HOSE BARB
Side 2 Gender MALE
Side 2 Size 2-1/2-12 (-32)
Side 2 Type ORB

Description

Our Series 4603-NWO 45-Degree Angled Hose Barb x Male Adjustable ORB adapters, made from durable carbon steel, provide a secure and efficient connection between hoses and male adjustable ORB (O-Ring Boss) threaded fittings in hydraulic and fluid power systems. The 45-degree angled design offers flexibility in routing hoses, especially in tight spaces. Hose barb adapters work by having a barb that the hose is slid onto, and when tightened with a hose clamp, it creates a strong, leak-proof seal. The male ORB end features a straight thread and a chamfered surface where an O-ring seats, providing a reliable seal when the connection is made. These adapters are ideal for fluid transfer applications, offering a dependable, high-quality solution for professionals seeking strong, leak-free connections in various systems.
