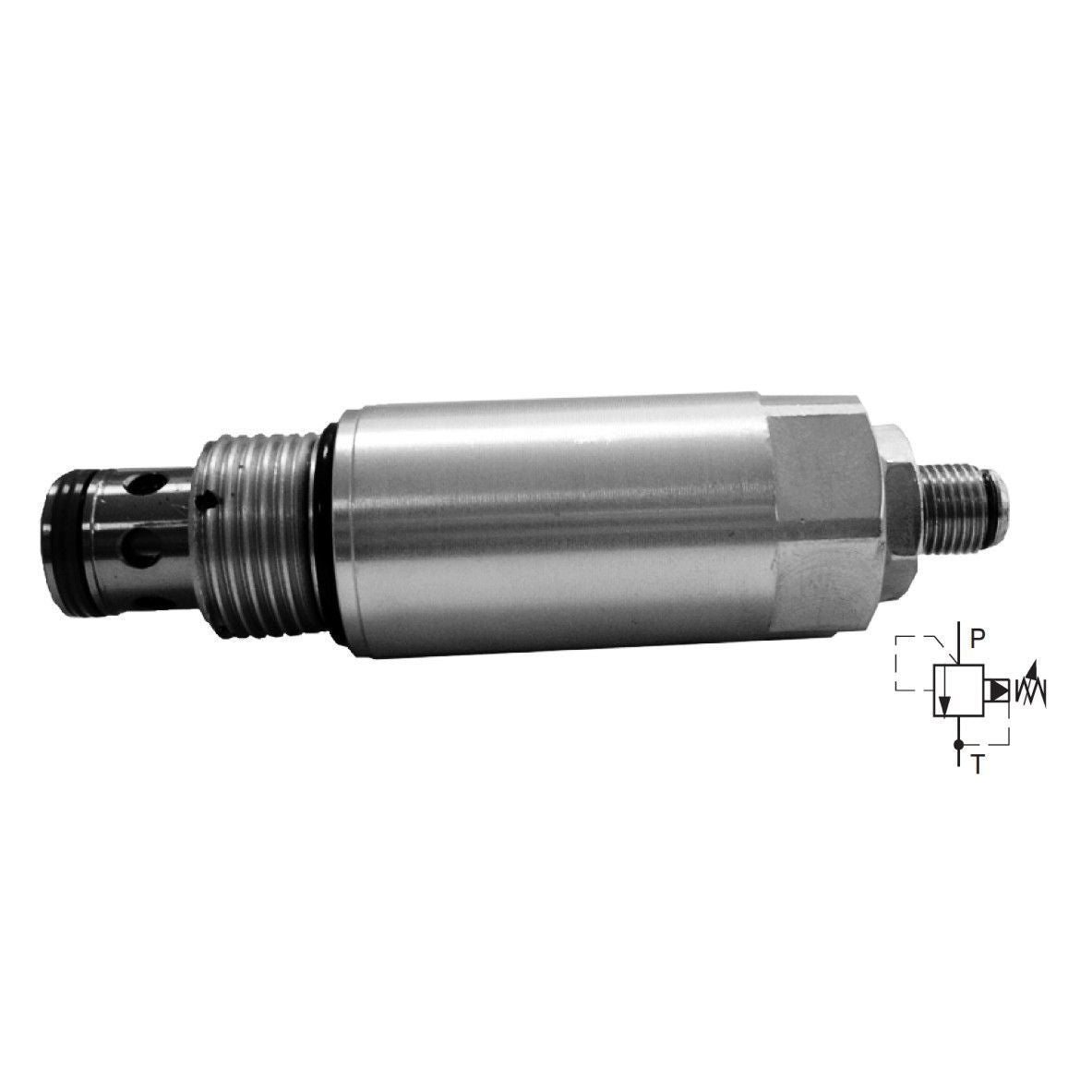

SR4A-B2/H10S-B : Argo Pressure Relief Valve, Spool Type, Pilot-Operated, 26 GPM, 5100psi, Allen Key Screw, Adjustable Up to 1450psi, C-10-2 Cavity
Roll over image to zoom in Click on image to zoom
SR4A-B2/H10S-B : Argo Pressure Relief Valve, Spool Type, Pilot-Operated, 26 GPM, 5100psi, Allen Key Screw, Adjustable Up to 1450psi, C-10-2 Cavity

SR4A-B2/H10S-B : Argo Pressure Relief Valve, Spool Type, Pilot-Operated, 26 GPM, 5100psi, Allen Key Screw, Adjustable Up to 1450psi, C-10-2 Cavity

Argo-HytosSKU: 40410600
Same Day
2
0
03.12.H.105A
Price:
$84.30

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Stock 0
Factory Location Bowling Green, Ohio
Solid Model Click here to download
Valve Operation Pilot-Operated
Valve Type Cartridge
Adjustment Type Allen Key Screw
Flow Rating 26
Pressure Rating 5100
Pressure Range Up to 1450psi
Cartridge Cavity C-10-2
Height 1.04
Length 3.94
Width 1.04
Weight 0.53

Description

The Argo-Hytos SR4A-B2 cartridge is a spool type, pilot-operated, hydraulic relief valve intended for use as a pressure limiting device. This valve is fast-acting with low hysteresis (reactive delay). Because of the absense of any internal seals, this valve shows excellent reseating and repeatability characteristics. It may be used as a main pressure control element, but due to its two-stage design, it is not recommended for safety applications where operating speed is critical.
