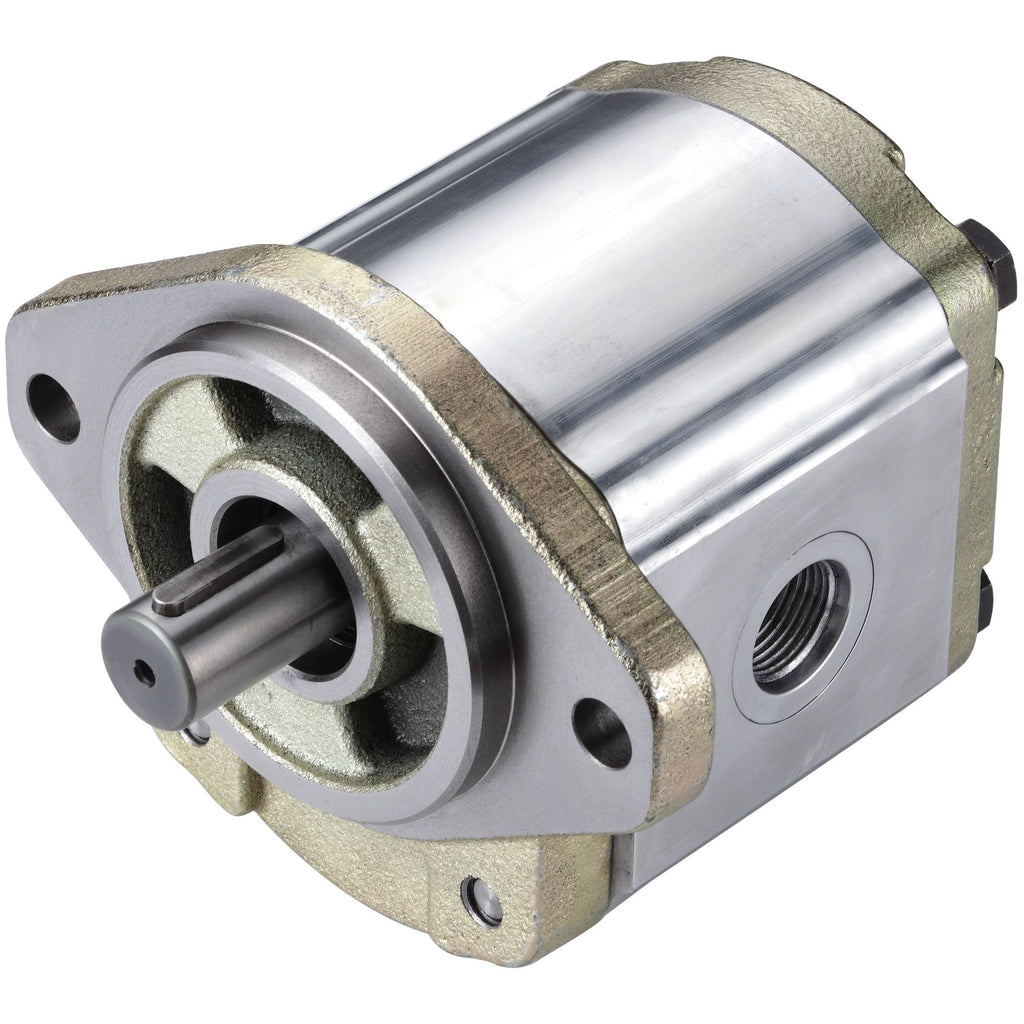

3GB8ZU170R : Honor Gear Pump, CW Rotation, 70cc (4.27in3), 33.29 GPM, 2300psi, 2500 RPM, #16 SAE (1") In, #12 SAE (3/4") Out, Splined Shaft 13-Tooth, 16/32 Pitch, SAE B 2-Bolt Mount

HonorSKU: 3GB8ZU170R

Price:
$600.99
10-12 Weeks

Product Details

Data Sheet Download Datasheet
Usually Ships Within 10-12 Weeks
Factory Location Corpus Christi, Texas
Material Aluminum Body, Cast Iron Flange and Cover
Shaft Size 13T 16/32DP
Shaft Type Splined
Port Location Rear Ported
Pressure Rating 2300
Rotation Clockwise
Displacement 70
Gpm At 1800 Rpm 33.29
Max Speed 2500 RPM
Inlet Port #16 SAE (1")
Outlet Port #12 SAE (3/4")
Mount SAE B 2-Bolt
Country of Manufacture Taiwan
Height 5.886
Length 6.378
Width 6.85
Weight 22.9
