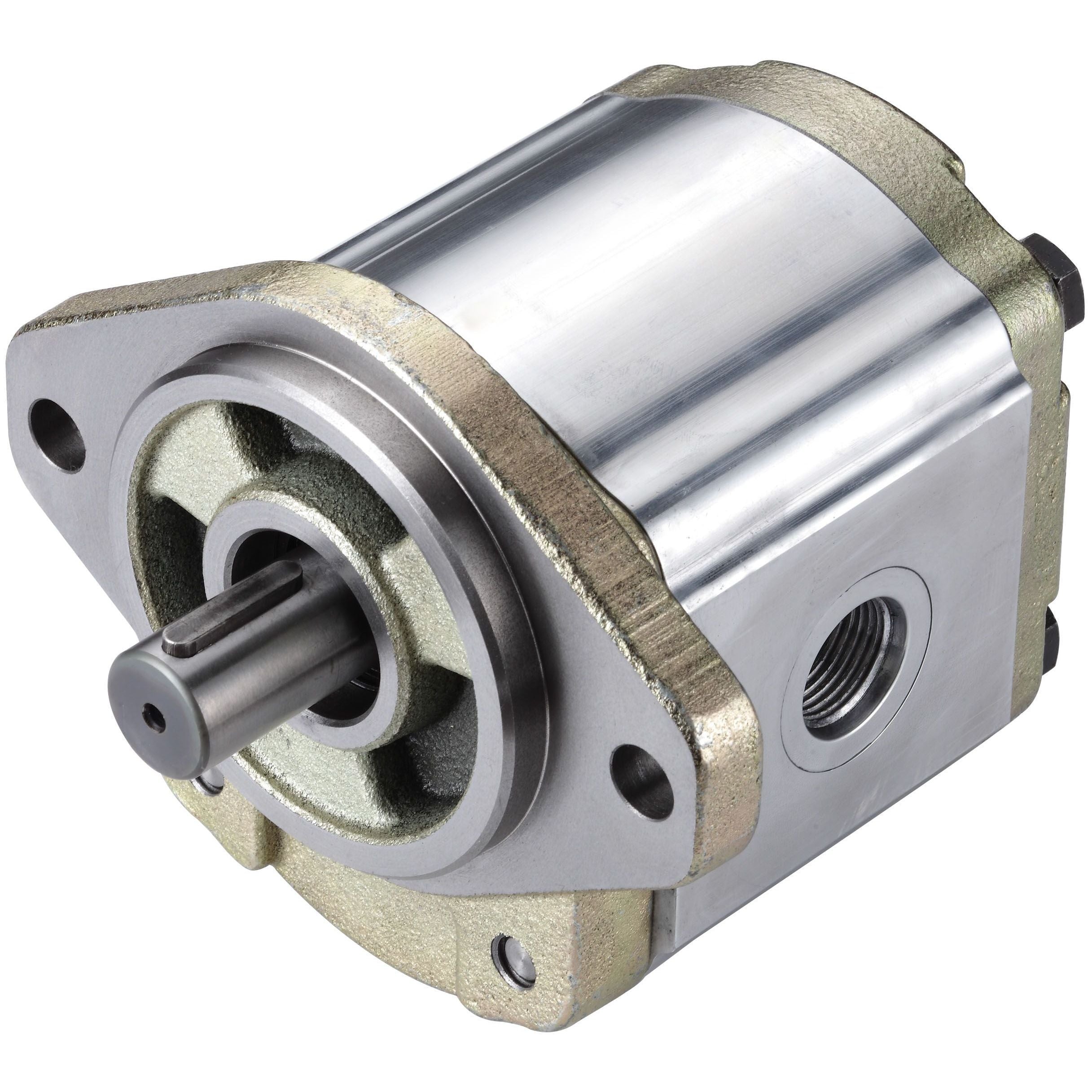

3GB8ZU152L : Honor Gear Pump, CCW Rotation, 52cc (3.17in3), 24.73 GPM, 2800psi, 2500 RPM, #16 SAE (1") In, #12 SAE (3/4") Out, Splined Shaft 13-Tooth, 16/32 Pitch, SAE B 2-Bolt Mount

HonorSKU: 3GB8ZU152L

6 Weeks

Product Details

Data Sheet Download Datasheet
Usually Ships Within 6 Weeks
Factory Location Corpus Christi, Texas
Material Aluminum Body, Cast Iron Flange and Cover
Shaft Size 13T 16/32DP
Shaft Type Splined
Port Location Rear Ported
Pressure Rating 2800
Rotation Counter-Clockwise
Displacement 52
Gpm At 1800 Rpm 24.73
Max Speed 2500 RPM
Inlet Port #16 SAE (1")
Outlet Port #12 SAE (3/4")
Mount SAE B 2-Bolt
Country of Manufacture Taiwan
Height 5.866
Length 5.118
Width 6.85
Weight 21.6
