Product Details
Data Sheet | Download Datasheet |
---|---|
Usually Ships Within | 6 Weeks |
Factory Location | Corpus Christi, Texas |
Material | Aluminum Body, Cast Iron Flange and Cover |
Shaft Size | 11T 16/32DP |
Shaft Type | Splined |
Port Location | Rear Ported |
Pressure Rating | 3500 |
Rotation | Counter-Clockwise |
Displacement | 25 |
Gpm At 1800 Rpm | 11.89 |
Max Speed | 3000 RPM |
Inlet Port | #16 SAE (1") |
Outlet Port | #12 SAE (3/4") |
Mount | SAE A 2-Bolt |
Country of Manufacture | Taiwan |
Height | 5.886 |
Length | 5.118 |
Width | 6.85 |
Weight | 19.1 |
Description

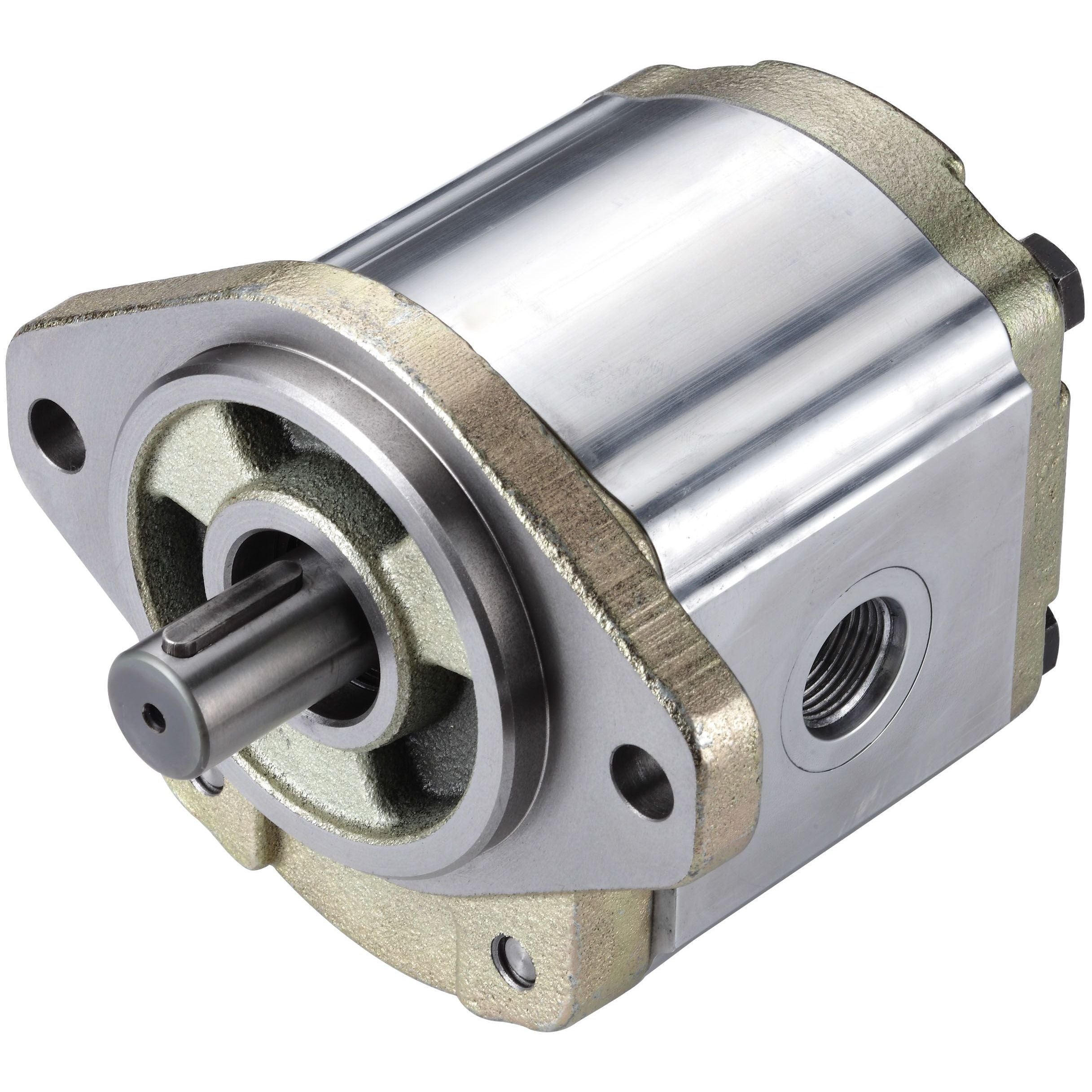

The Honor Gear Pump Group 3 Pumps are defined by the mounting flange and shaft end, as well as the function. Mounting flanges are available in SAE A 2-bolt, SAE B 2-bolt, or four-bolt European mounting flanges. Shaft ends can be keyed, spline, or tapered, depending on your requirements. Displacements are available from 1.1 to 5.5 in3. O-Ring side ports are generally standard, but rear ports may be available upon request. If you need a pump in a configuration that isn't avaiable online, please give OneHydraulics a call and we'll be happy to help.
