35AAF5L2F : DP Winch, 35,000lb Bare Drum Pull, 31.75" Base with Fairlead, Manual Kickout/Spring Engage, CCW, Less than 25GPM Motor, 6.13" Barrel x 12.12" Length x 14.69" Flange
35AAF5L2F : DP Winch, 35,000lb Bare Drum Pull, 31.75" Base with Fairlead, Manual Kickout/Spring Engage, CCW, Less than 25GPM Motor, 6.13" Barrel x 12.12" Length x 14.69" Flange
35AAF5L2F : DP Winch, 35,000lb Bare Drum Pull, 31.75" Base with Fairlead, Manual Kickout/Spring Engage, CCW, Less than 25GPM Motor, 6.13" Barrel x 12.12" Length x 14.69" Flange
Roll over image to zoom in Click on image to zoom
35AAF5L2F : DP Winch, 35,000lb Bare Drum Pull, 31.75" Base with Fairlead, Manual Kickout/Spring Engage, CCW, Less than 25GPM Motor, 6.13" Barrel x 12.12" Length x 14.69" Flange35AAF5L2F : DP Winch, 35,000lb Bare Drum Pull, 31.75" Base with Fairlead, Manual Kickout/Spring Engage, CCW, Less than 25GPM Motor, 6.13" Barrel x 12.12" Length x 14.69" Flange35AAF5L2F : DP Winch, 35,000lb Bare Drum Pull, 31.75" Base with Fairlead, Manual Kickout/Spring Engage, CCW, Less than 25GPM Motor, 6.13" Barrel x 12.12" Length x 14.69" Flange

35AAF5L2F : DP Winch, 35,000lb Bare Drum Pull, 31.75" Base with Fairlead, Manual Kickout/Spring Engage, CCW, Less than 25GPM Motor, 6.13" Barrel x 12.12" Length x 14.69" Flange

DP WinchSKU: 35AAF5L2F
6-8 Weeks
Price:
$11,595.54

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 6-8 Weeks
Factory Location Jenks, Oklahoma

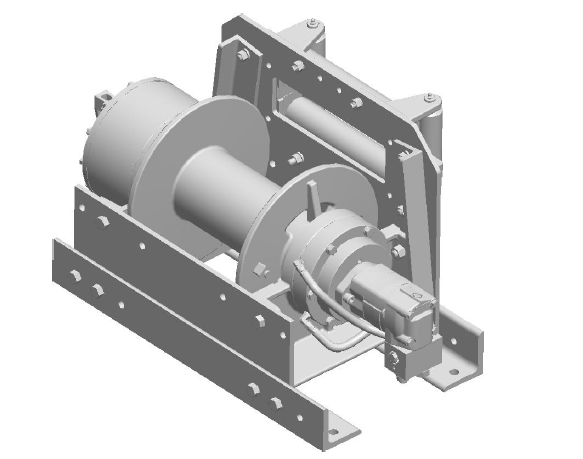

Solid Model

Click here to download

Service Manual Download

Click here to download

Hydraulic Motor Pressure 2500psi
Country of Manufacture United States

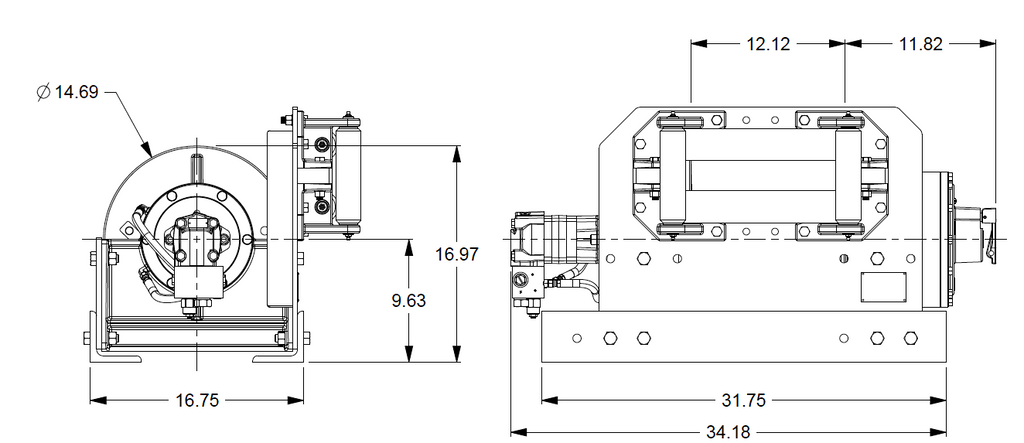

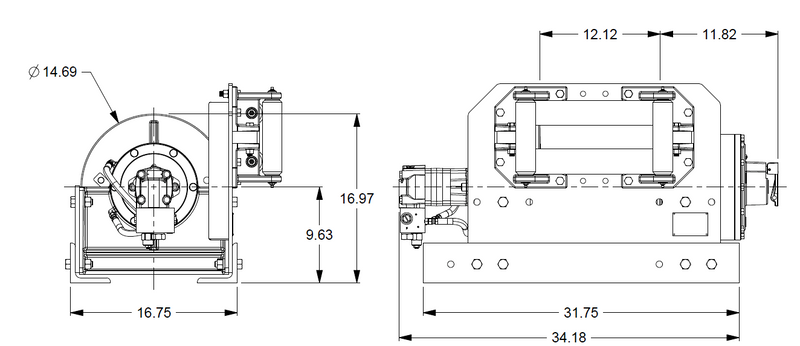

Height 16.97
Length 34.18
Width 16.75
Weight 689

Description

With over 75 years of experience and knowledge, TWG's planetary winches have the strength to pull you out of trouble. Their planetary winches are commonly used in the Infrastructure, Recovery, Energy & Marine markets custom built for each application. With line pull ratings from 3,000 lbs to 270,000 lbs, they have a winch that can handle your requirements.

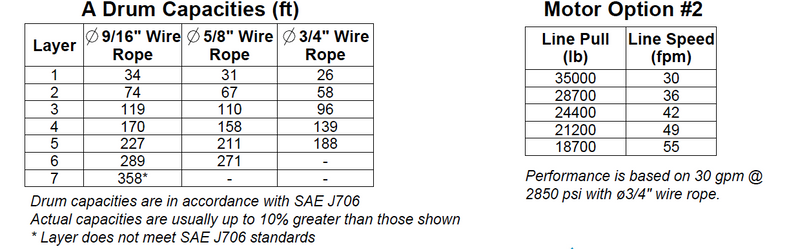

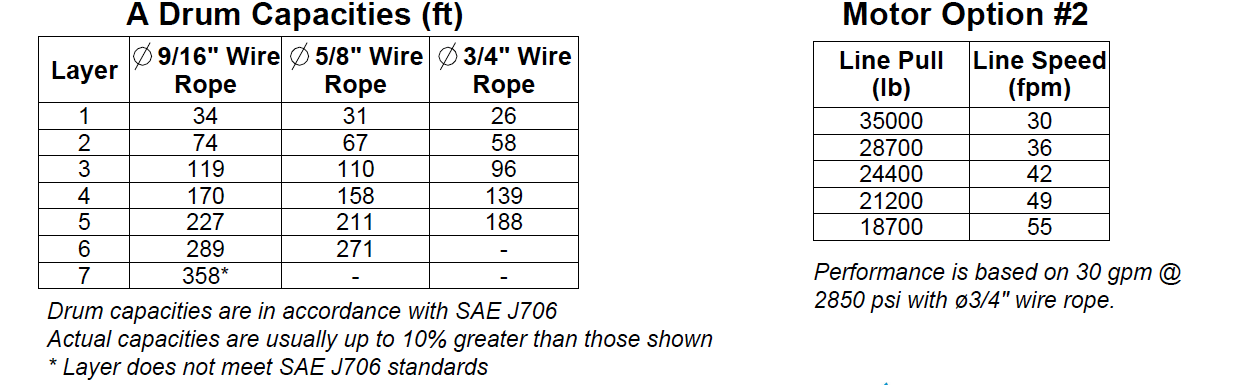

* 35,000lbs. capacity winch storing 229 ft. of 3/4” dia. rope

* 31.75" Base with Fairlead (A ‘fairlead’ guides the cable out of the winch, typically a 4-roller design)

* Manual Kickout/Spring Engage (A ‘kickout’ is a clutch mechanism that engages an input shaft to turn your winch. This is a manual clutch, which is typically lever operated)

* Counter-Clockwise Rotation ( Direction of drum rotation viewed from motor when paying in)

* Medium Flow ~ Under 25GPM

* 6.13" Barrel x 12.12" Length x 14.69" Flange
