Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Houston, Texas or Dallas, Texas or Cleveland, Ohio |
| Material | Steel |
| Shape | Straight |
| Series | 3474-LLL-NWO |

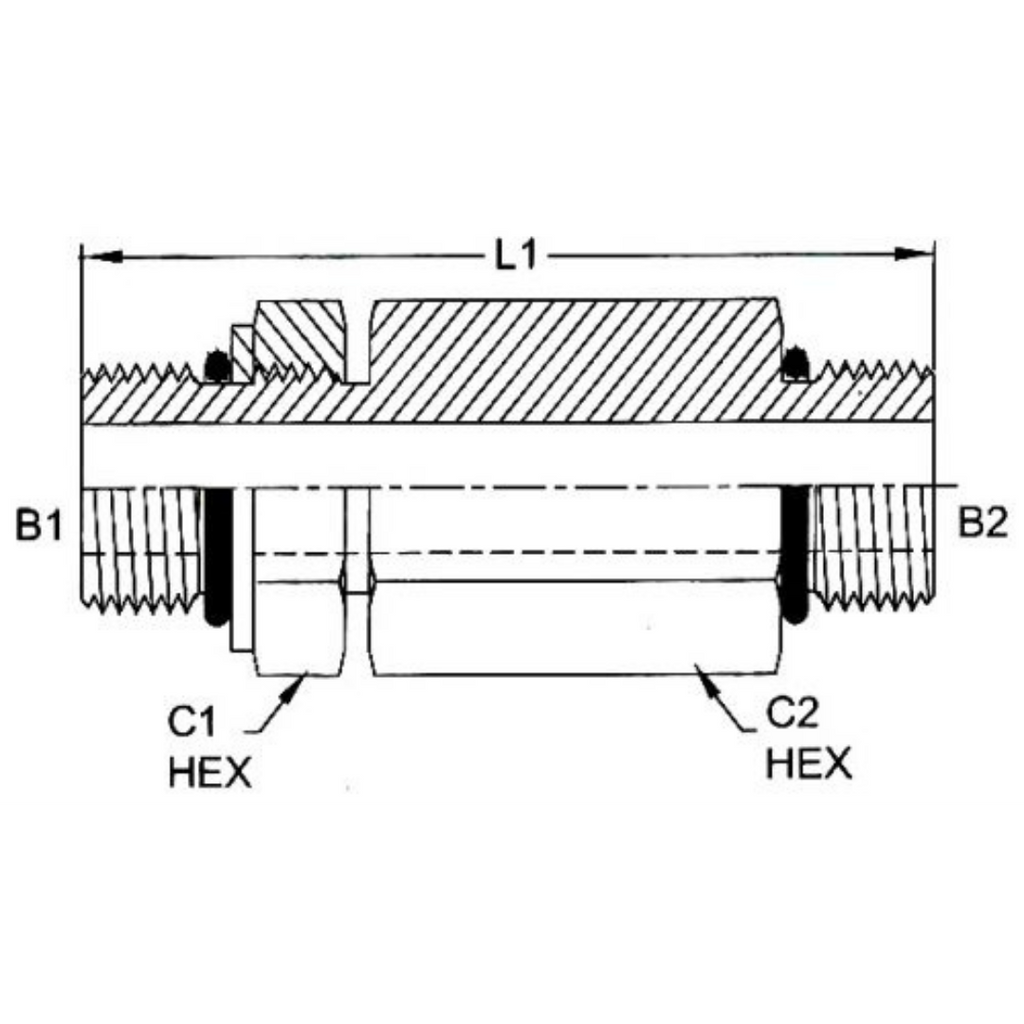

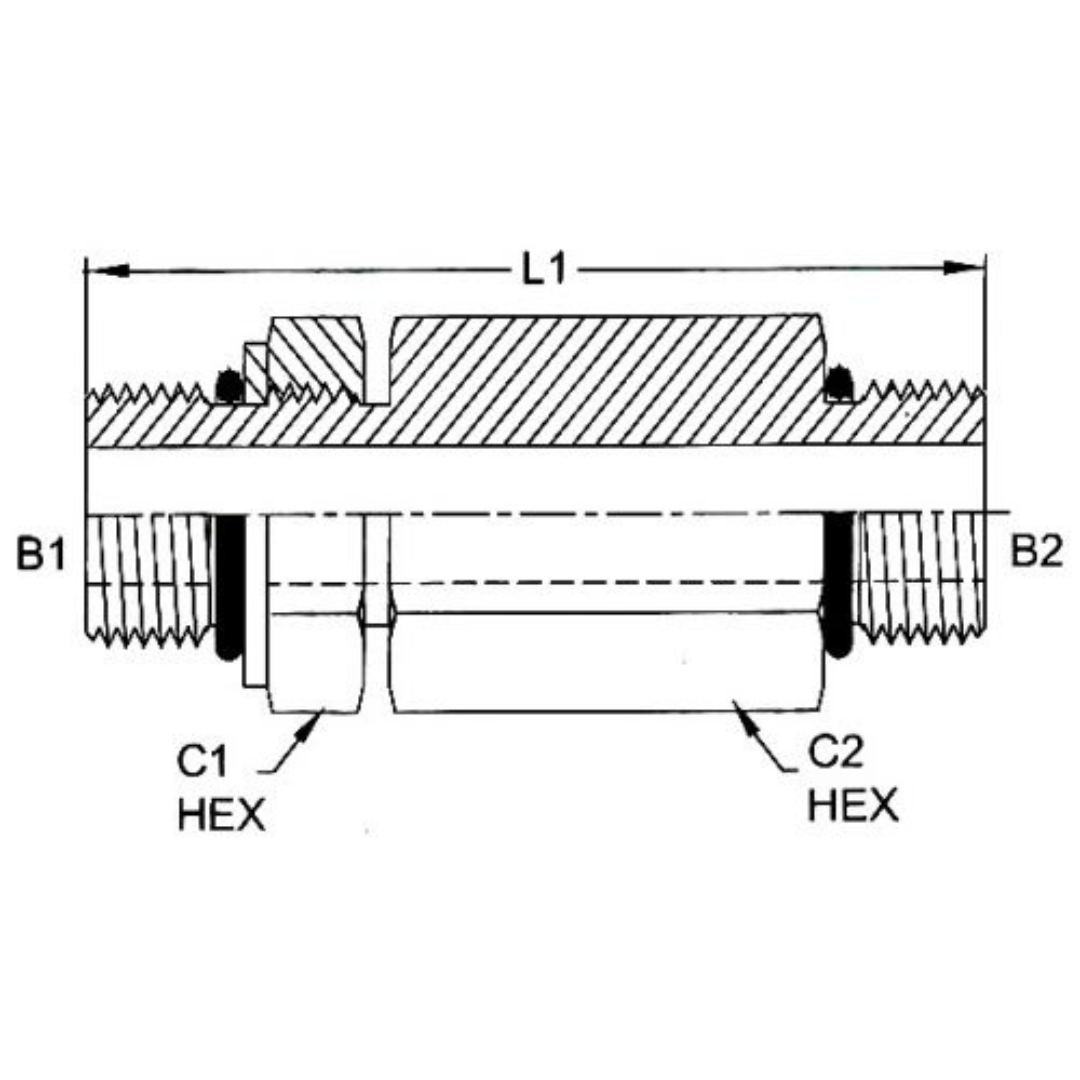

| Special Dims | L1 Length 3.00, C1 Hex 0.562, C2 Hex 0.562, B1 Drill 0.172, B2 Drill 0.172, B1 Tube OD 1/4, B2 Tube OD 1/4, B1 SAE ORB 7/16-20, B2 ORB 7/16-20 |
| Country of Manufacture | China |
| Side 1 Gender | MALE |
| Side 1 Size | 7/16-20 (-04) |
| Side 1 Type | ORB |
| Side 2 Gender | MALE |
| Side 2 Size | 7/16-20 (-04) |
| Side 2 Type | ORB |
Description

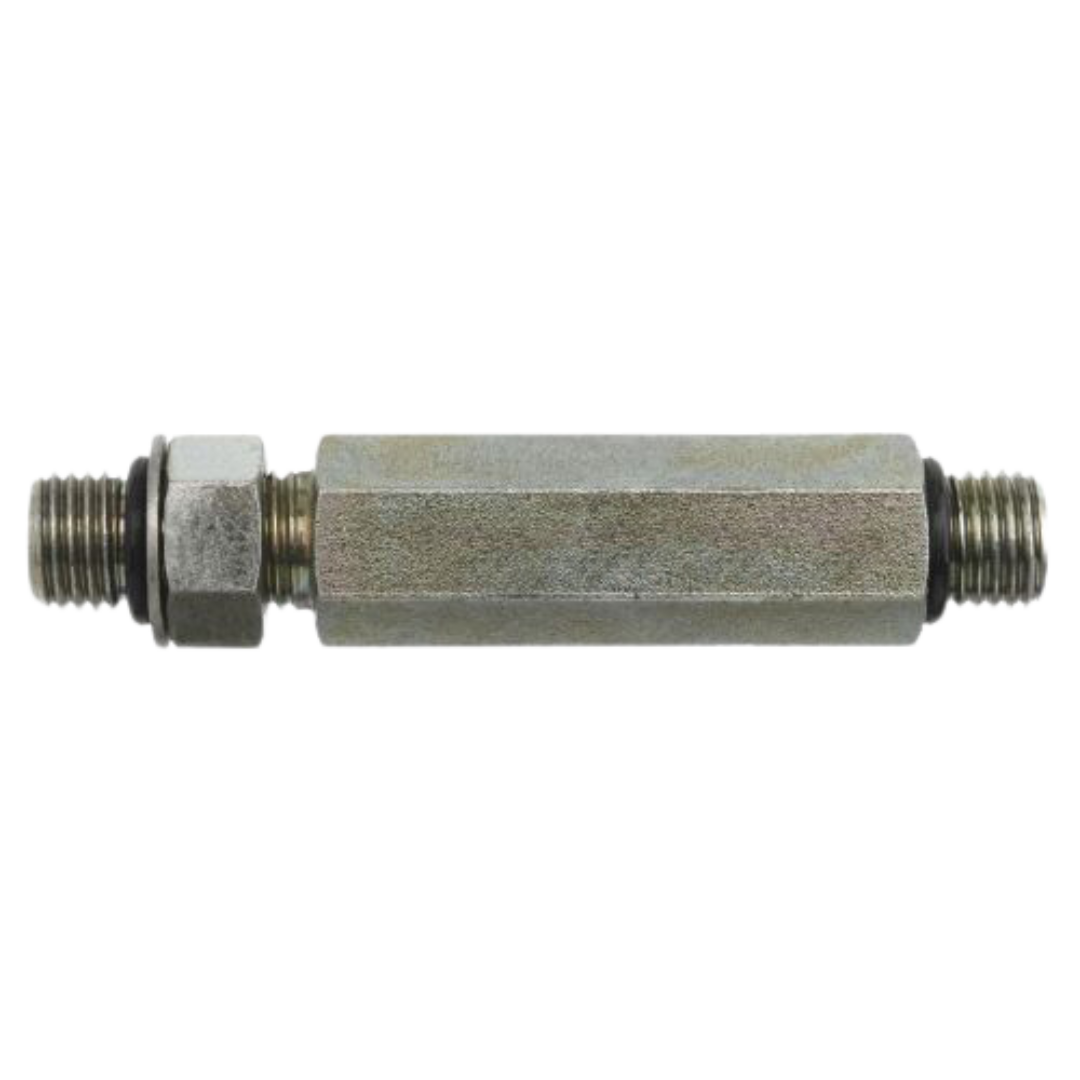

The Series 3474-LLL-NWO Straight Male Adjustable ORB x Male ORB hydraulic adapters, made of carbon steel, are an adjustable and extra-extra-long version of the standard 6464-O series, designed for flexible and secure fluid power connections in medium to high-pressure systems. These ORB (SAE Straight Thread O-ring Boss) fittings feature a male connection with a straight UNF thread and an O-ring, ensuring a leak-tight seal when the O-ring is compressed into the chamfer of the mating female connection. The female port has a straight thread with a precisely machined surface to ensure smooth, accurate alignment. Manufactured in durable carbon steel and equipped with Buna-N or Viton 90 Durometer O-rings, these fittings meet the NFPA standards for leak prevention, providing reliable sealing performance in demanding hydraulic applications.
