Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Canton, Michigan |
| Port Size | 3/8" NPT |
| O Ring Seals | Viton |
| Pressure Rating | 12000 |
| Body Material | Carbon Steel |
| Ball Seal | Delrin |
| Ball Pattern | On/Off |
| Ball Valve Pressure Range | Ultra High Pressure (over 10,000psi) |
| Flow Style | Two-Way |
| Country of Manufacture | Germany |
| Height | 2.04 |
| Length | 2.82 |
| Width | 1.25 |
| Weight | 4.07 |
| Ball Valve Type | Standard |
Description

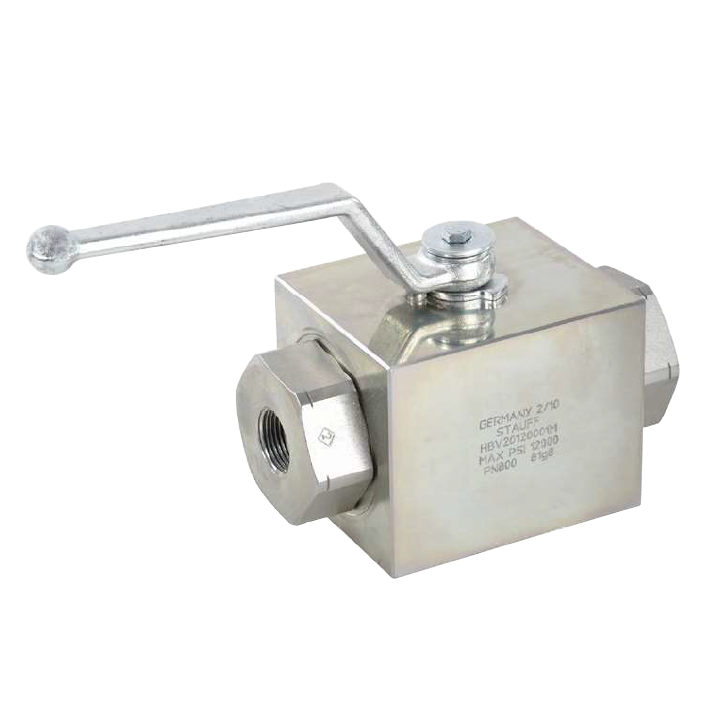

Stauff's two-way high-pressure block body ball valve is designed for use as an on/off device for hydraulic applications. The body, ball and stem are available in carbon and stainless steel, and a variety of end connections are available.
