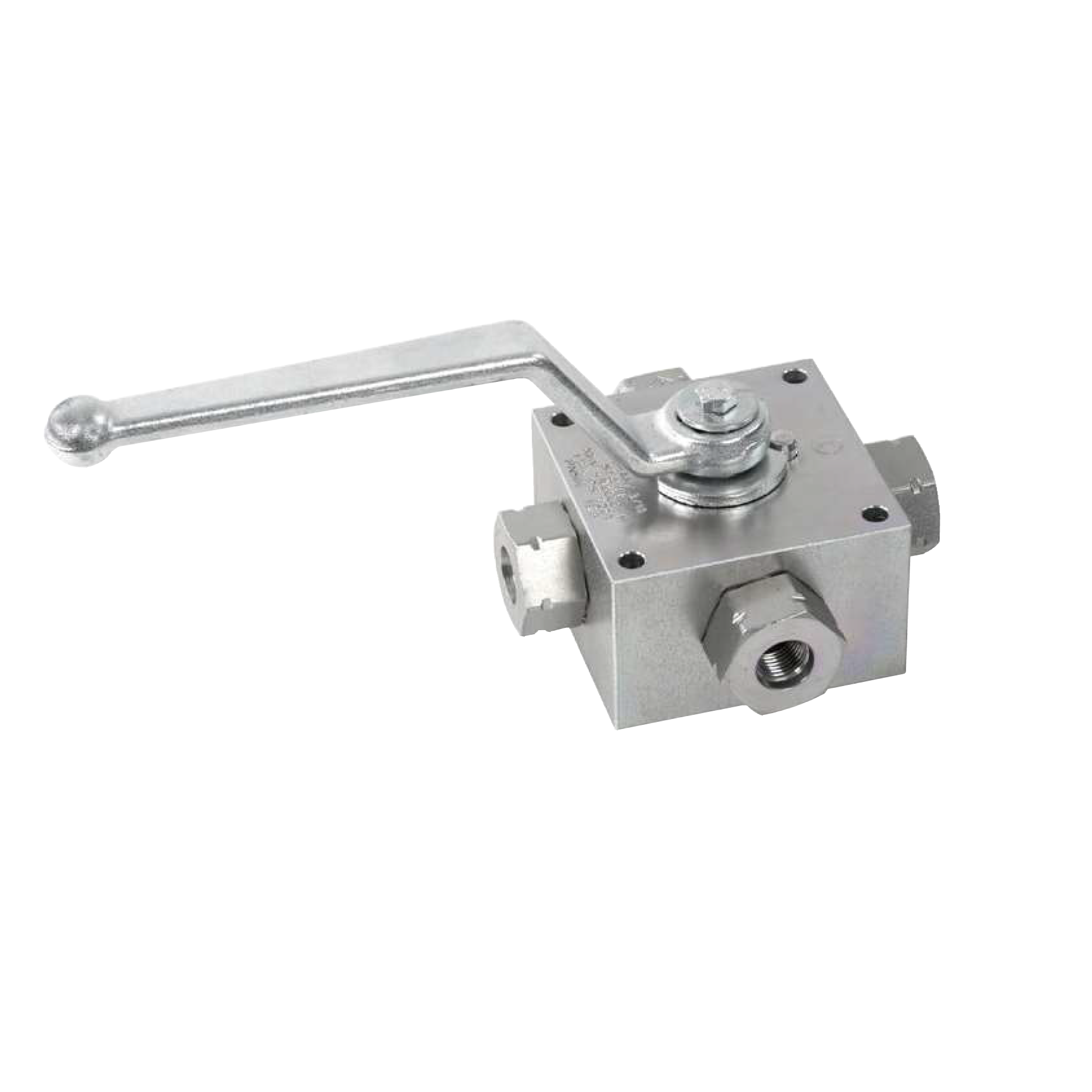

XBV-4-U16-1101-M : Stauff Multi-Way Diverter Ball Valve, X-Bore, 90 Degree Action, #16 SAE (1"), 316SS, 4500psi, Four-Way
Roll over image to zoom in Click on image to zoom
XBV-4-U16-1101-M : Stauff Multi-Way Diverter Ball Valve, X-Bore, 90 Degree Action, #16 SAE (1"), 316SS, 4500psi, Four-Way

XBV-4-U16-1101-M : Stauff Multi-Way Diverter Ball Valve, X-Bore, 90 Degree Action, #16 SAE (1"), 316SS, 4500psi, Four-Way

Save $5.81
StauffSKU: 3404001755
4-6 Weeks
Price:
$3,541.99 $3,547.80

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Canton, Michigan
Port Size #16 SAE (1")
O Ring Seals Viton
Pressure Rating 4500
Body Material 316 Stainless Steel
Ball Seal Delrin
Ball Pattern X-Bore, 90-Degree Action
Ball Valve Pressure Range Medium Pressure (1000 to 4999psi)
Flow Style Four-Way
Country of Manufacture Germany
Weight 18.7
Ball Valve Type Standard

Description

Stauff's four-way high pressure block body ball valves are designed for use as three-way selectors for hydraulic applications. This valve is a block body design ideal for inline assembly, has a trunnion style ball, and is supplied with a lever.
