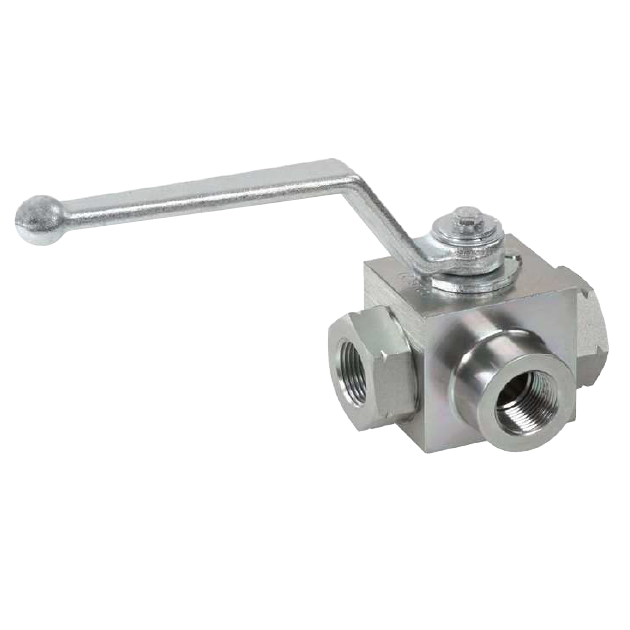

CBVL-3-N24-0001-M : Stauff Compact 3-Way Diverter Ball Valve, L-Bore, 90 Degree Action, 1.5" NPT, 316SS, 5000psi
Roll over image to zoom in Click on image to zoom
CBVL-3-N24-0001-M : Stauff Compact 3-Way Diverter Ball Valve, L-Bore, 90 Degree Action, 1.5" NPT, 316SS, 5000psi

CBVL-3-N24-0001-M : Stauff Compact 3-Way Diverter Ball Valve, L-Bore, 90 Degree Action, 1.5" NPT, 316SS, 5000psi

Save $113.21
StauffSKU: 3404001679
3-5 Days
Price:
$1,095.41 $1,208.62

Product Details

Data Sheet Download Datasheet
Usually Ships Within 3-5 Days
Factory Location Canton, Michigan
Port Size 1.5" NPT
O Ring Seals Viton
Pressure Rating 5000
Body Material 316 Stainless Steel
Ball Seal Delrin
Ball Pattern L-Bore Diverter
Ball Valve Pressure Range High Pressure (5000 to 9999psi)
Flow Style Three-Way
Country of Manufacture Germany
Height 7.52
Length 5.51
Width 4.57
Weight 13.64
Ball Valve Type Standard

Description

Stauff's compact three-way high pressure block body ball valves are designed for use as three-way selectors for hydraulic applications.
