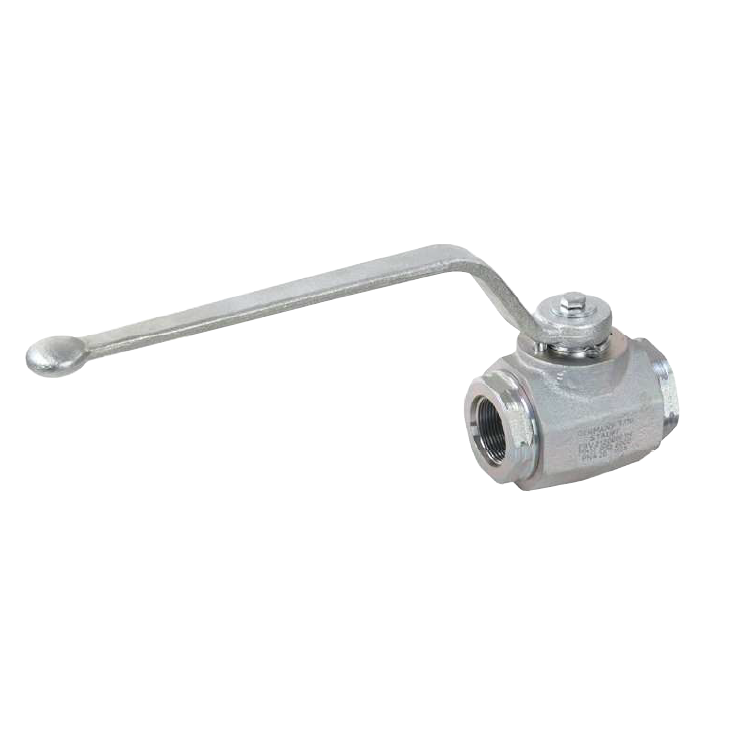

FBV-2-U20-0001-M : Stauff Forged Body Ball Valve, #20 SAE (1.25"), Carbon Steel, 6000psi, 2-Way
Roll over image to zoom in Click on image to zoom
FBV-2-U20-0001-M : Stauff Forged Body Ball Valve, #20 SAE (1.25"), Carbon Steel, 6000psi, 2-Way

FBV-2-U20-0001-M : Stauff Forged Body Ball Valve, #20 SAE (1.25"), Carbon Steel, 6000psi, 2-Way

Save $14.18
StauffSKU: 3404001530
4-6 Weeks
Price:
$272.99 $287.17

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-6 Weeks
Factory Location Canton, Michigan
Port Size #20 SAE (1.25")
O Ring Seals Viton
Pressure Rating 6000
Body Material Carbon Steel
Ball Seal Delrin
Ball Pattern On/Off
Ball Valve Pressure Range High Pressure (5000 to 9999psi)
Flow Style Two-Way
Country of Manufacture Germany
Height 6.73
Length 4.37
Width 3.19
Weight 7.75
Ball Valve Type Standard

Description

Stauff's two-way high-pressure forged body ball valve is designed for use as an on/off device for hydraulic applications. The body, ball and stem are available in carbon or stainless steel, and a variety of end connections are available.
