Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 4-6 Weeks |
| Factory Location | Canton, Michigan |
| Port Size | 2" NPT |
| O Ring Seals | Viton |
| Pressure Rating | 6000 |
| Body Material | Carbon Steel |
| Ball Seal | Delrin |
| Ball Pattern | On/Off |
| Ball Valve Pressure Range | High Pressure (5000 to 9999psi) |
| Flow Style | Two-Way |
| Country of Manufacture | Germany |
| Height | 7.96 |
| Length | 5.51 |
| Width | 4.67 |
| Weight | 17.91 |
| Ball Valve Type | Standard |
Description

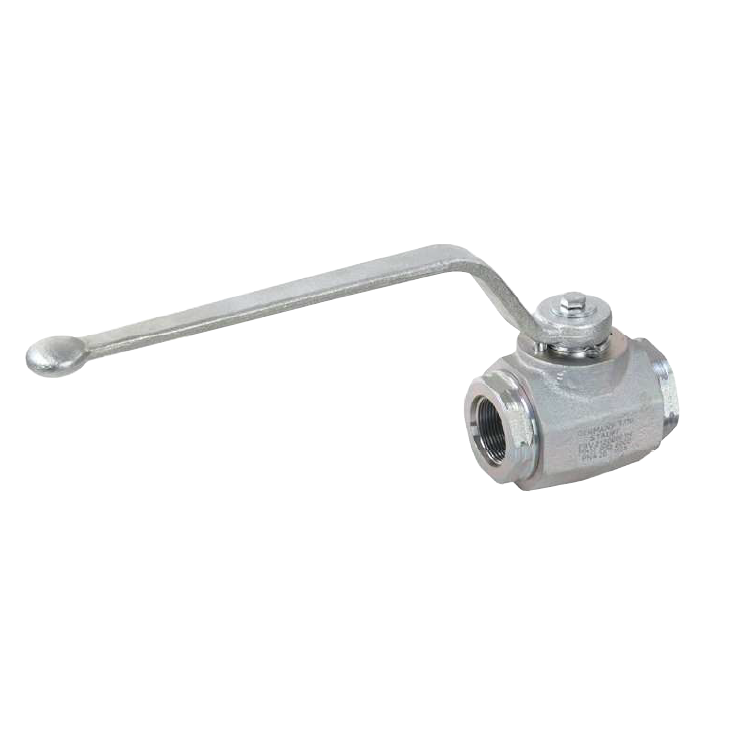

Stauff's two-way high-pressure forged body ball valve is designed for use as an on/off device for hydraulic applications. The body, ball and stem are available in carbon or stainless steel, and a variety of end connections are available.
