Product Details
Data Sheet | Download Datasheet |
---|---|
Usually Ships Within | Same Day |
Factory Stock | 0 |
Factory Location | Bowling Green, Ohio |
Valve Type | Subplate/Manifold Mounted Valve |
Valve Interface | D03 (NG6) |
Flow Rating | 21 |
Pressure Rating | 5100 |
Voltage | 24 VDC (1.29A) Rated Supply Voltage of Solenoids at the coil terminals |
Actuation Type | Solenoid Operated |
Solenoid Electrical Connection | DIN Connector EN 175301-803-A |
Spool Configuration | Tandem Spool, P to T with A & B Blocked in Neutral |
Positions | 3-Position |
Way | 4-Way |
Country of Manufacture | Czech Republic |
Height | 5.94 |
Length | 10.66 |
Width | 1.79 |
Weight | 4.85 |
Description

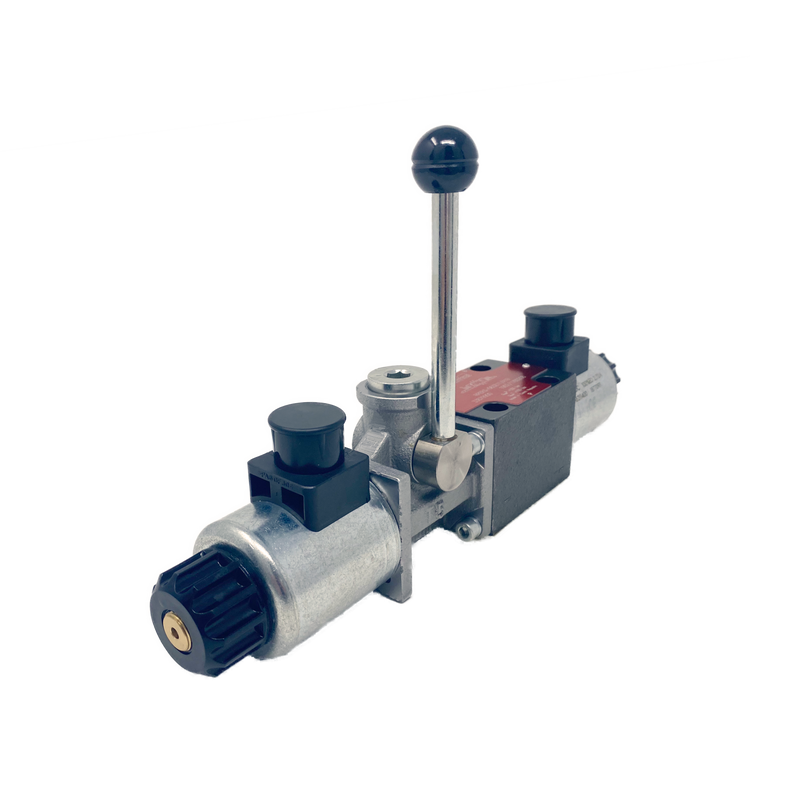

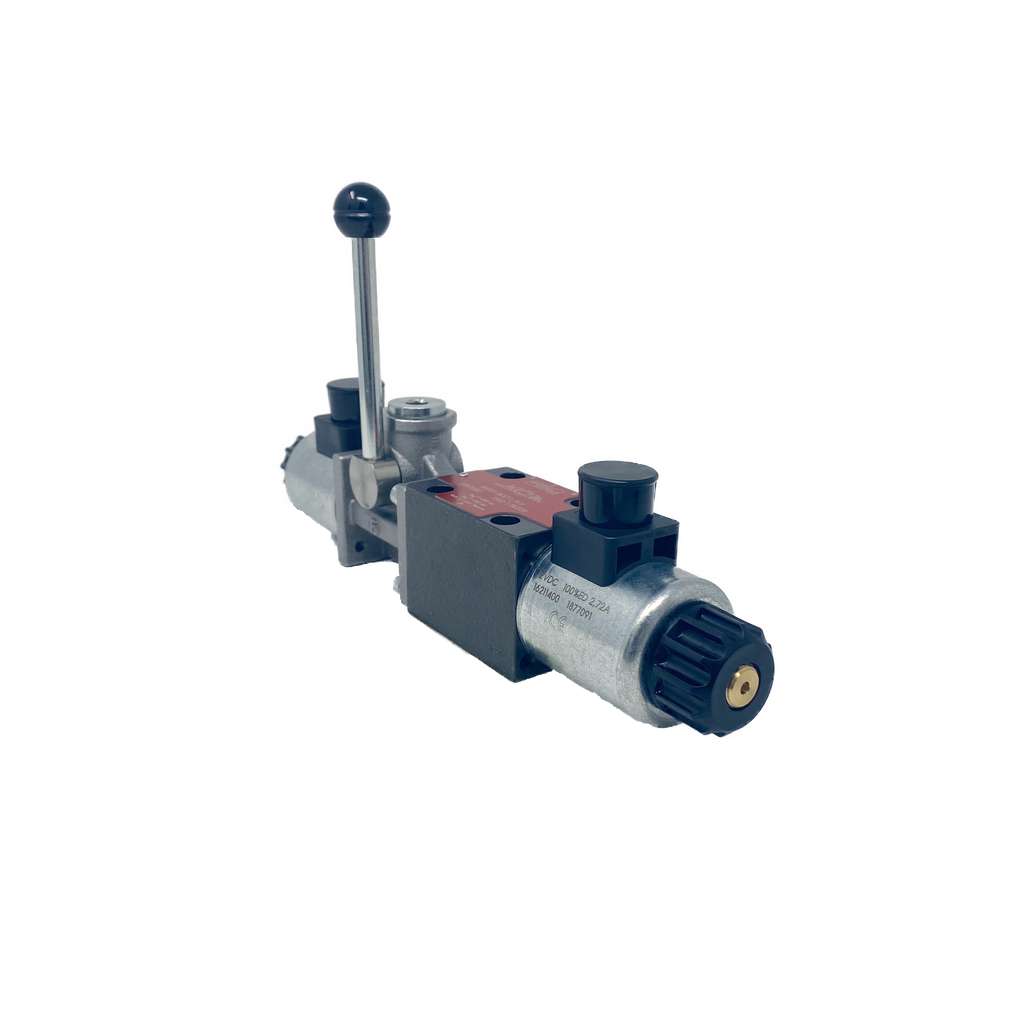

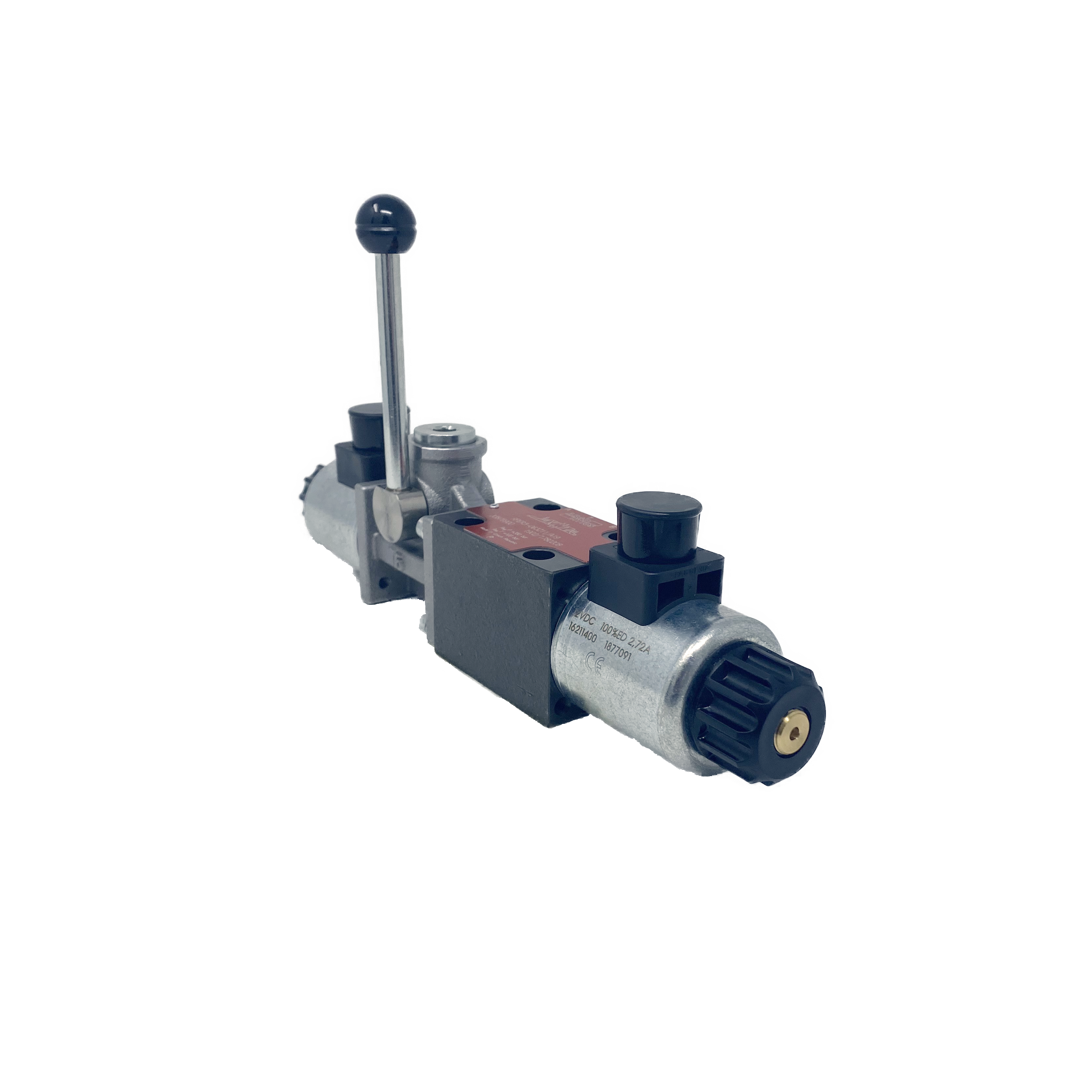

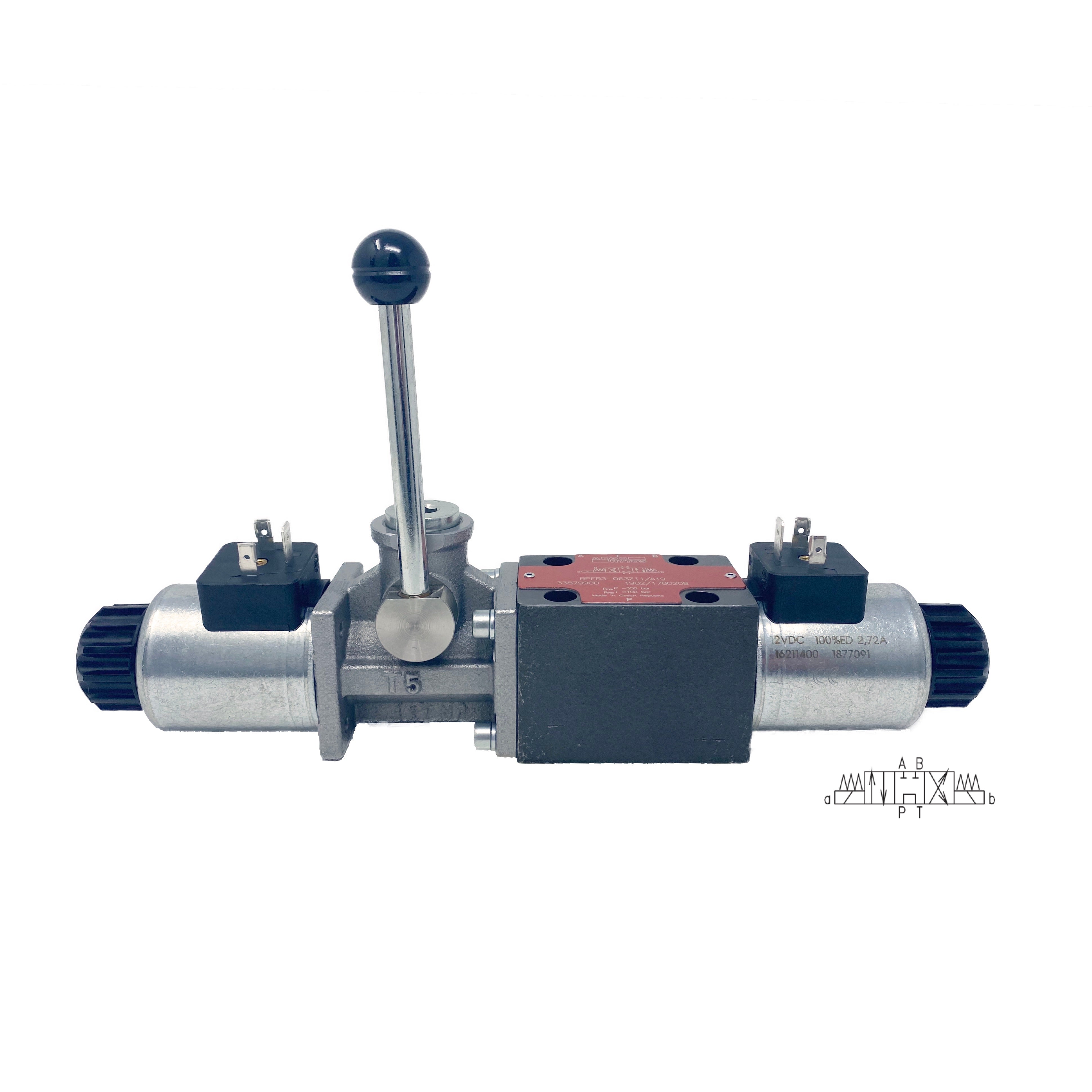

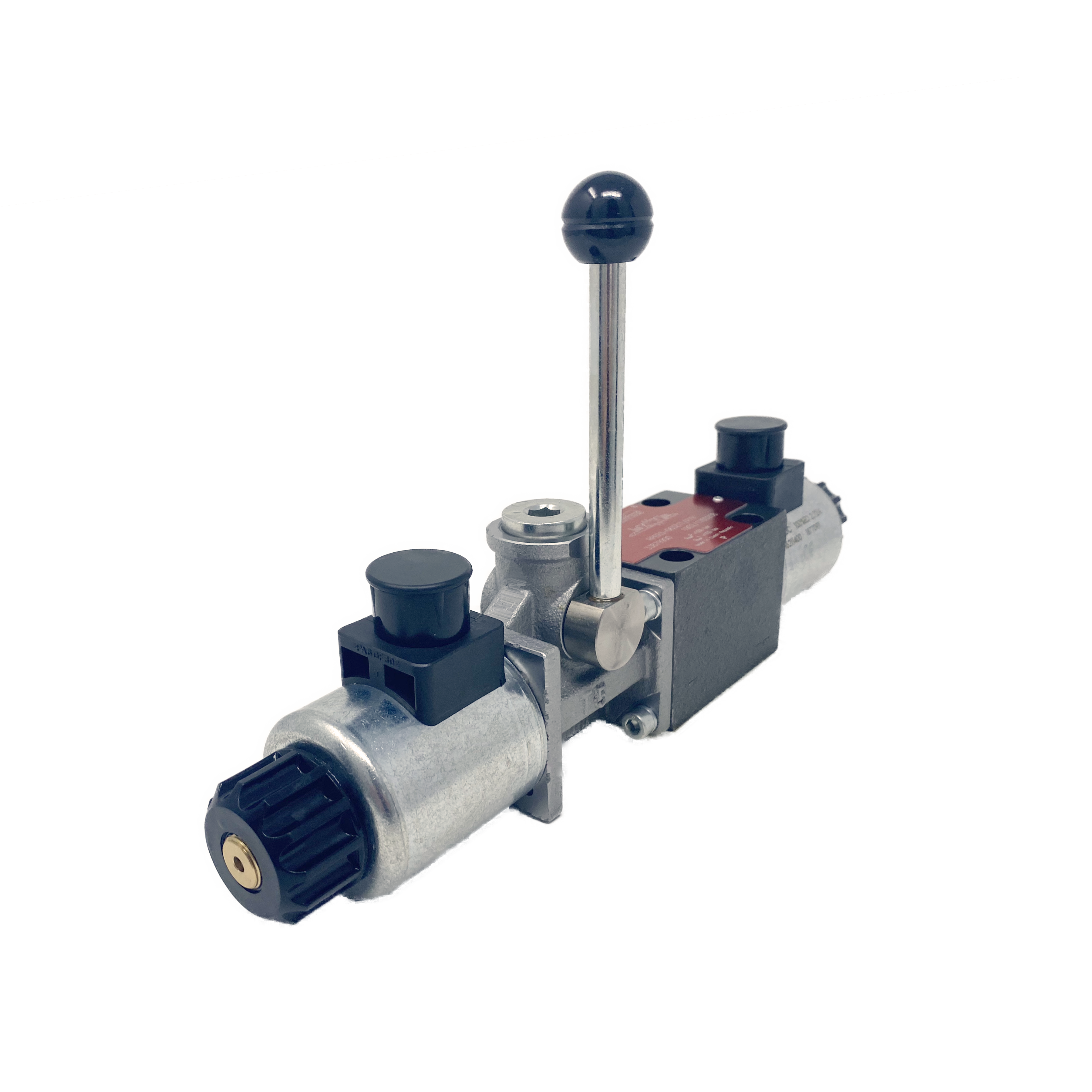

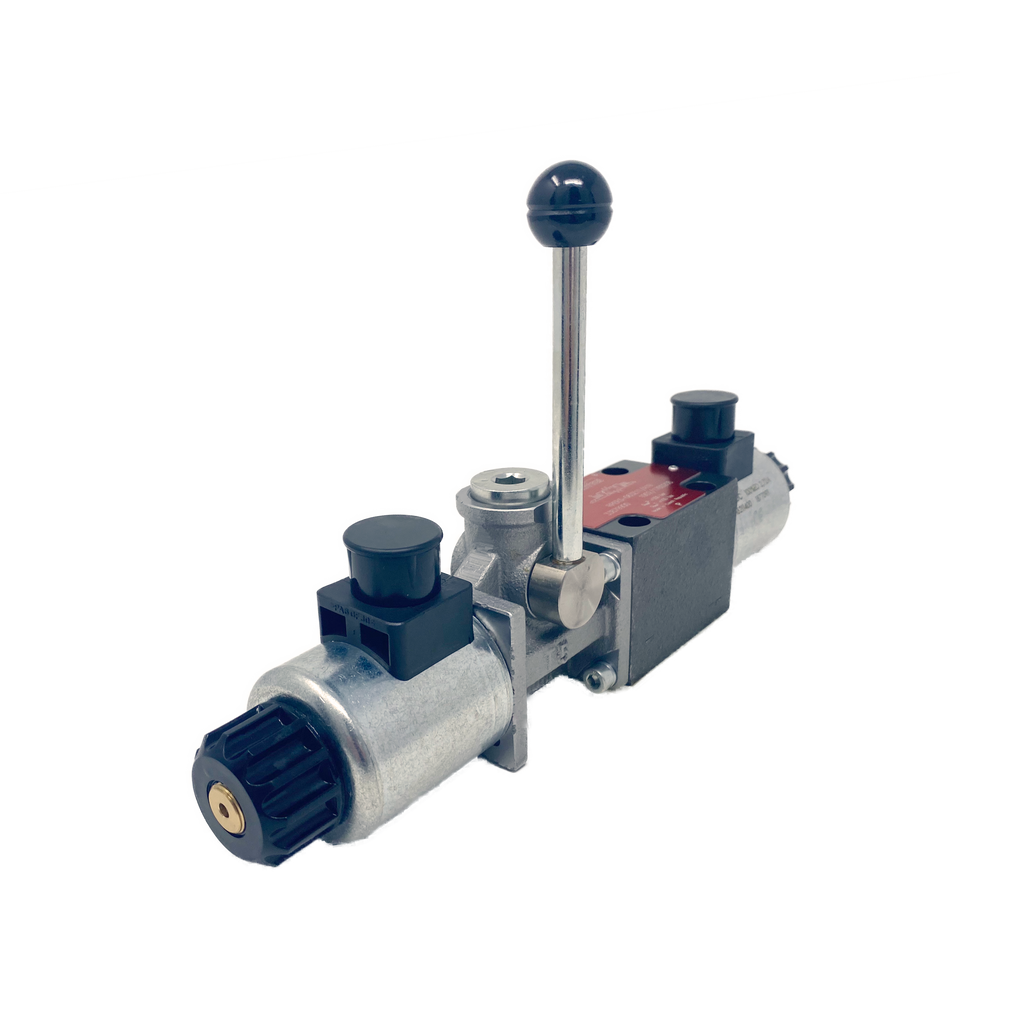

The Argo-Hytos RPER3-06 auxiliary override valve offers a lever override for On/Off solenoid valves of the type RPE3-06. Auxiliary lever operators allow the valve to be operated when the electrical system is de-energized, for example in emergency operation, electrical failures, or maintenance activities. The manual lever and actuation element can be rotated in 90-degree increments for flexible installation. When the valve is electrically operated, the hand lever remains in stopped in its neutral position. The lever override does not affect the performance of the base valve. The lever operator should never be used when the solenoid is energized.
