Product Details
Data Sheet | Download Datasheet |
---|---|
Usually Ships Within | 3-5 Days if in Factory Stock, 6-8 Weeks if not in Factory Stock |
Factory Stock | 0 |
Factory Location | Bowling Green, Ohio |
Valve Type | Subplate/Manifold Mounted Valve |
Valve Interface | D05 (NG10) |
Flow Rating | 37 |
Pressure Rating | 5100 |
Voltage | 120 VAC |
Actuation Type | Solenoid Operated |
Solenoid Electrical Connection | Wiring Box with Lights |
Spool Configuration | All Ports Blocked Neutral, 2Z11 |
Positions | 2-Position |
Way | 4-Way |
Country of Manufacture | Czech Republic |
Height | 4.8 |
Length | 8.68 |
Width | 2.69 |
Weight | 8.6 |
Description

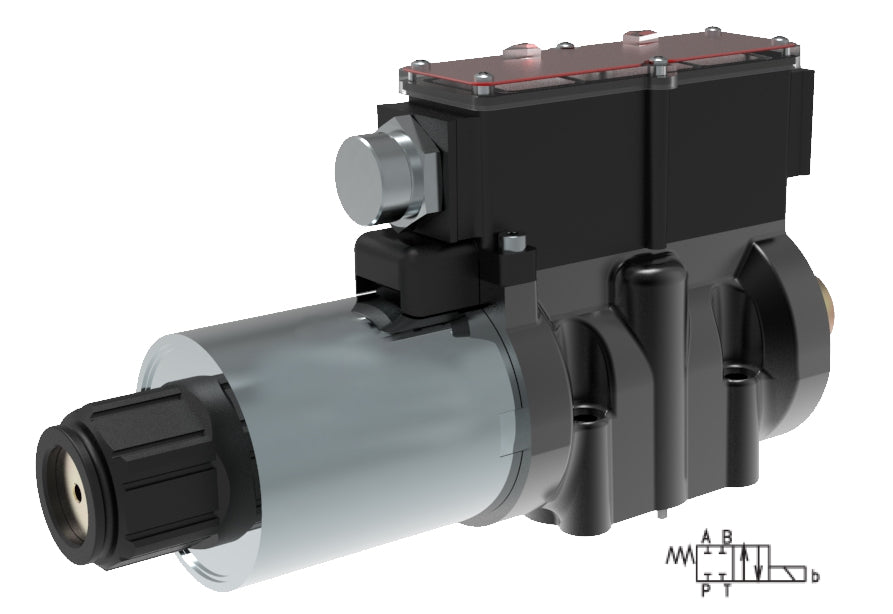

The Argo-Hytos RPEW4-06 is a direct acting directional control valve with suplate mounting interface according to ISO 4401. This valve has a wire box for solenoid electrical connection with cable gland, 1/2" PT. Optional 3-pin or 5-pin connector. The AC option allows for the power supply with a rectifier bridge build in the wire box. A wide range of interchangeable spools and manual overrides is available.
