Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Peachtree City, GA |
| Material | Aluminum with Hot-Dip Galvanized Steel Pipe |
| Port Size | 3/4" Female BSPP |
| O Ring Seals | FKM Viton |
| Series | Giebel Breather Accessories |
| Country of Manufacture | Germany |
| Height | 2.0 |
| Length | 37.0 |
| Width | 2.0 |
| Weight | 5.1 |
Description

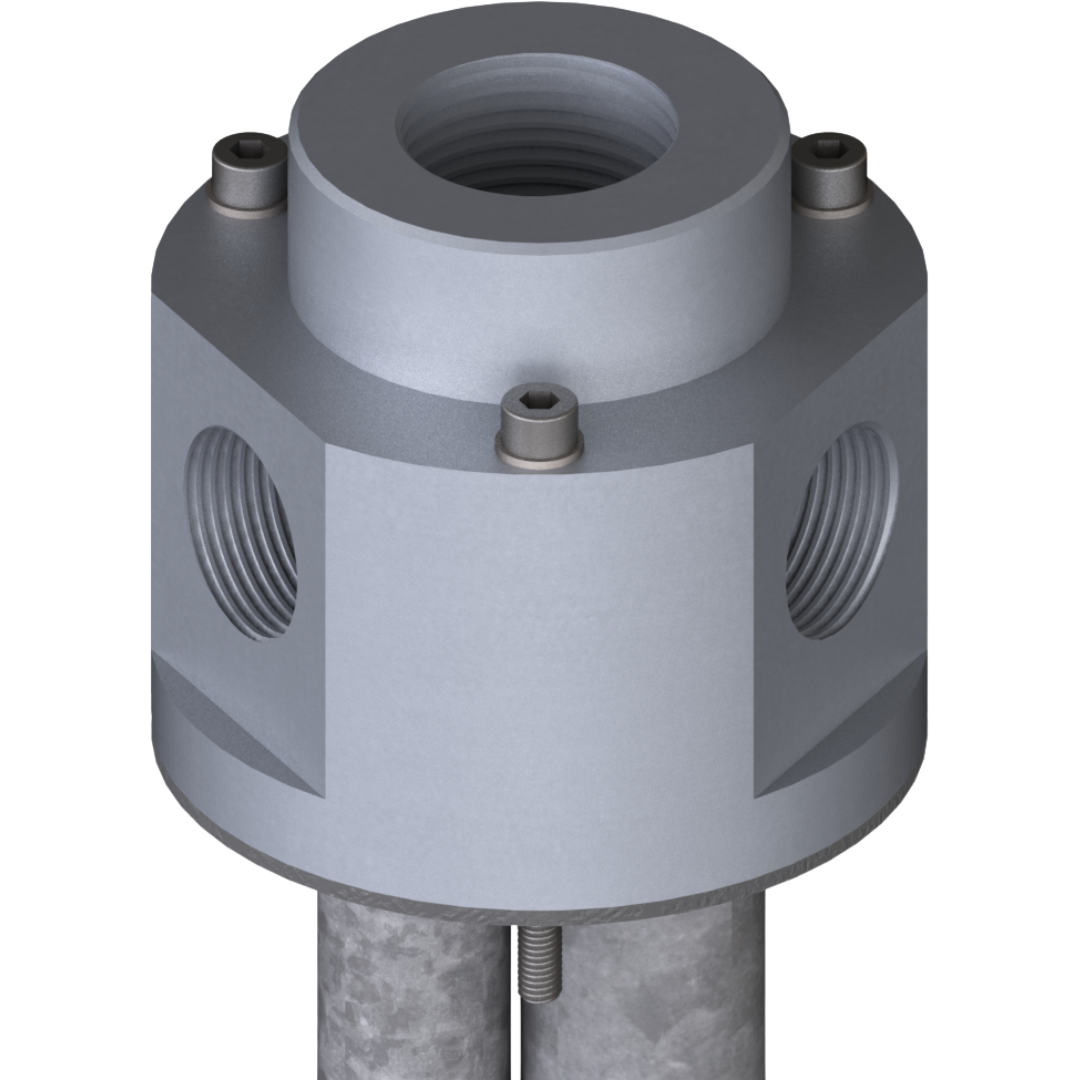

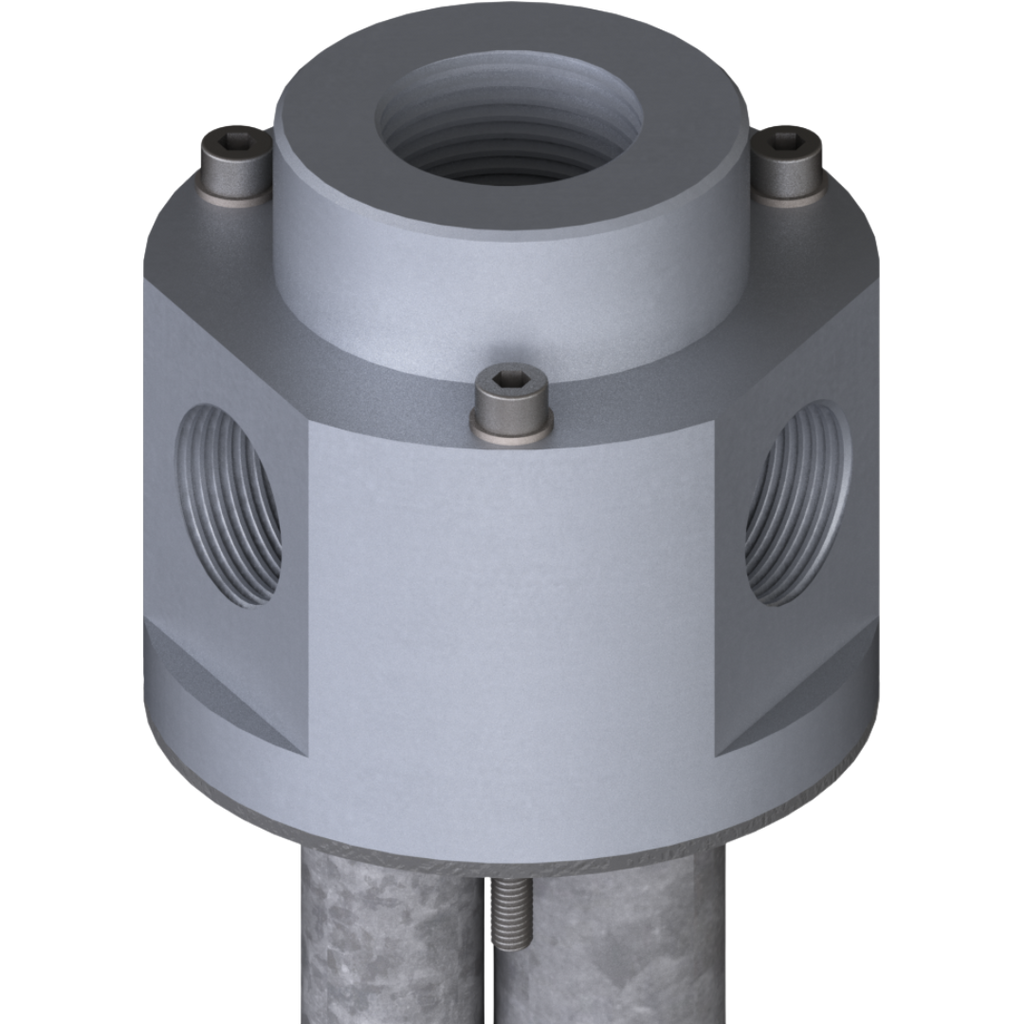

The 2x-By LK73 Suction Lance is a specialized tool designed to connect barrel pumps or bypass filter systems to GIEBEL dryer breathers, allowing for the extraction of substances from the bottom of tanks during adsorber operation. Certified to ATEX 2014, Zone II 2 G/D IIIC T4, it ensures safe use in hazardous environments. This lance features a flange connection for oil bypass cleaning systems, and it includes 6 M5 screws for secure installation. The aluminum construction with FKM seals ensures durability and leak protection. With two 3/4" female BSPP connections, it allows for flexible fluid handling. The pipe can be cut to the desired length before assembly. The lance supports a suction rate of 30L/min at 1.5m/s and a filling rate of 30L/min at 3m/s, making it ideal for efficient fluid extraction and tank cleaning in industrial applications.
